BURNDY YA3CTC38 3 AWG CU One Hole 3/8 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90?C Up to 35kV

Product Description

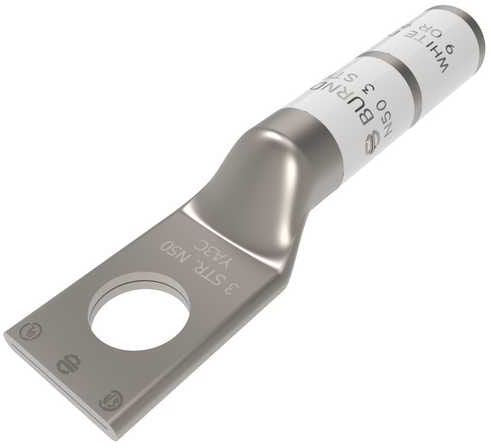

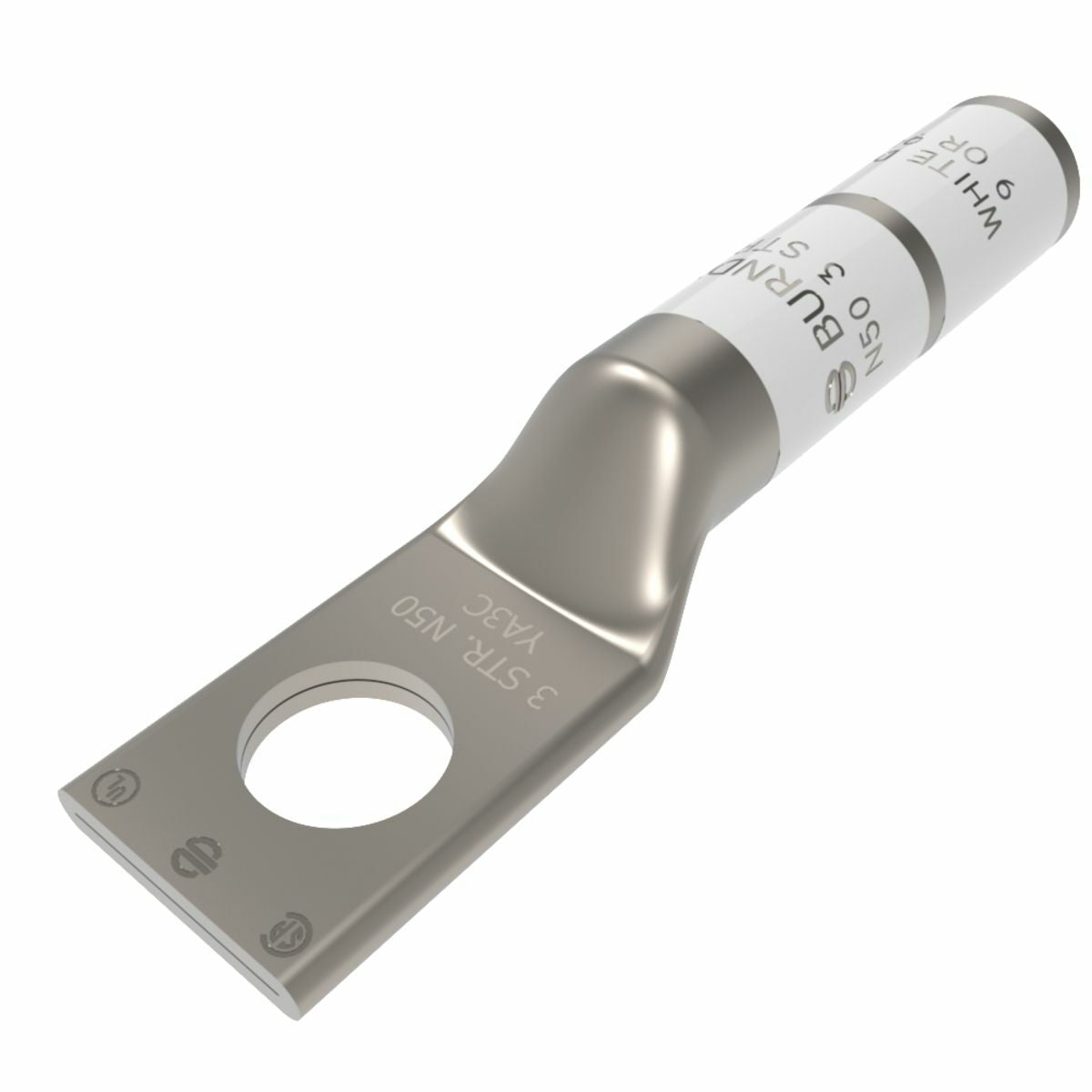

The BURNDY YA3CTC38 is a copper compression lug designed for wire termination applications. This product features a one-hole design suitable for a 3/8 inch stud size. It is constructed from electro-tin plated copper for enhanced conductivity and durability. The lug is rated for voltages up to thirty-five kilovolts and temperature ratings of ninety degrees Celsius. This makes it ideal for medium to high voltage applications.

• UL Listed for safety and reliability
• Suitable for solid or stranded copper conductors
• Easy installation with straight barrel design

Product Highlights

The BURNDY YA3CTC38 provides secure and efficient connections for copper wires in various electrical applications. It ensures optimal performance in wiring systems, meeting industry standards for safety and functionality.

Product Information

Standard Information

• Catalog Number: YA3CTC38
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Wire Strip Length: 1-1/2 inches
• Die Index: 9
• Special Features: UL Listed, Electro-Tin Plated, Suitable for Solid Copper Conductors
• Country of Origin: United States
• Application: Wire Termination
