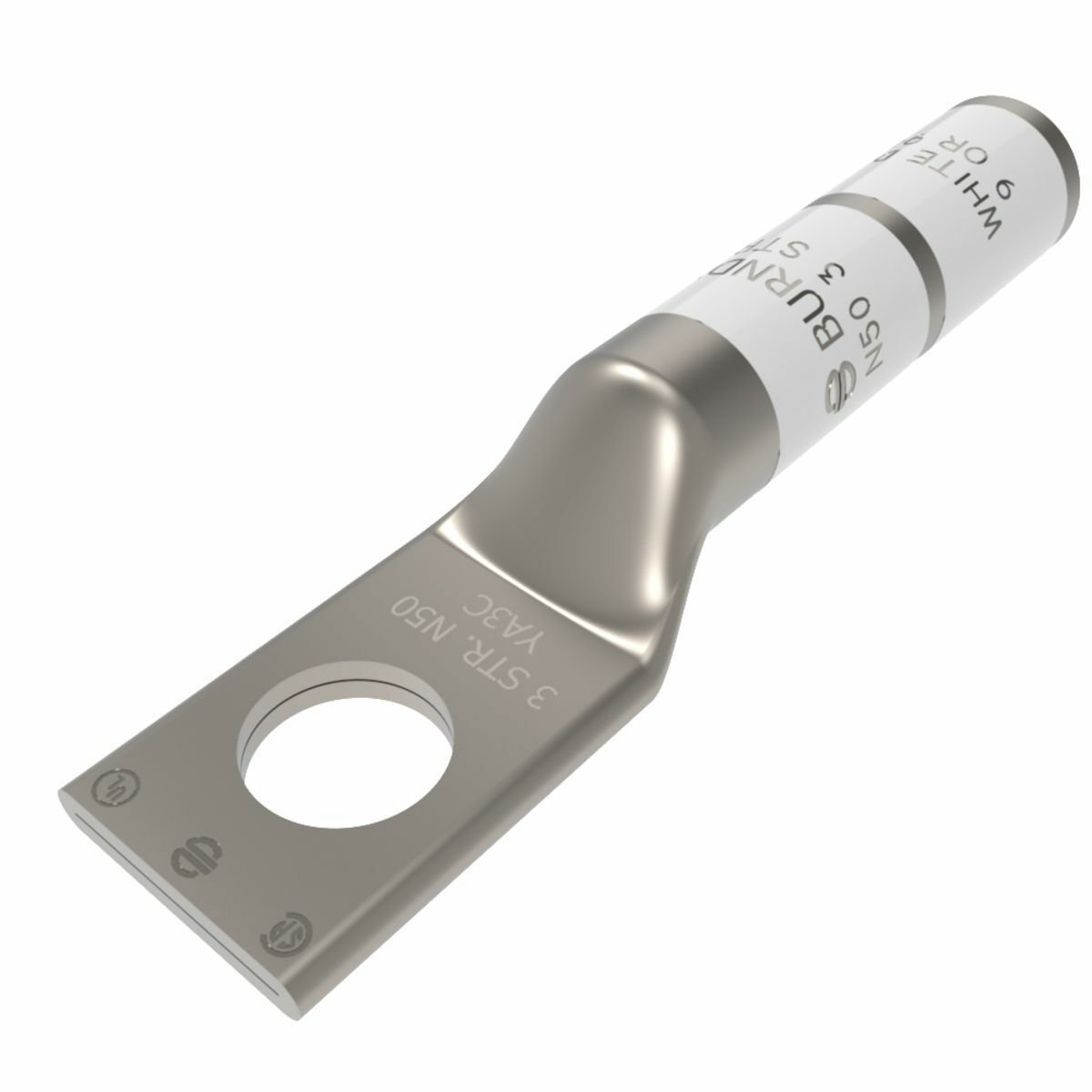

Burndy YA3CN 3 AWG CU One Hole 1/2 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

The Burndy YA3CN is designed for wire termination tasks. It features a long barrel construction with a one-hole connection. This compression cable lug is suitable for use with copper conductors, rated for both standard and stranded types. The lug is UL and CSA listed for safety and reliability.

• Long barrel design for better mechanical strength
• Compatible with solid and stranded copper conductors
• Rated for up to 35 kV voltage

Product Highlights

This product is ideal for electrical connections in various industrial applications, ensuring a secure and reliable termination for effective power distribution.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA3CN
• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 Degrees Celsius
• Wire Strip Length: One and one half inches
• Die Index: 9
• Color Code: White
• Application: Wire Termination
• Country of Origin: United States
• Made in USA: Yes
