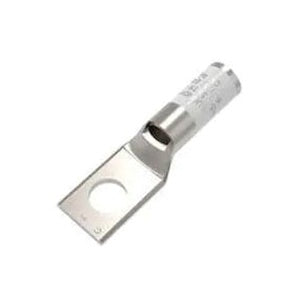

Burndy YA3CL4BOX Tin Plated Copper 1-Hole Compression Terminal 2-AWG Solid Cu 3-AWG Stranded Cu 3/8-Inch HYLUG

Product Description

The Burndy YA3CL4BOX is a tin plated copper 1-hole compression terminal designed for reliable electrical connections. This terminal accommodates two AWG solid copper and three AWG stranded copper conductors. Its construction and design ensure a strong and secure attachment to wiring.

• UL 486A-486B listed for safety
• Compatible with multiple conductor sizes
• Features a peep hole for easy wire inspection

Product Highlights

This compression terminal is suitable for various wiring applications where secure connections are essential.

Product Information

Standard Information

• Brand: Burndy
• Part Number: YA3CL4BOX

Technical Specifications

• Temperature Rating: 194 deg F
• Voltage Rating: 600 Volt - 35 Kilo-Volt
• Stud Size: 3/8 Inch
• Tongue Size: 0.41 Inch Length x 0.58 Inch Width x 0.42 Inch Thickness
• Conductor Size: 2 AWG Solid, 3 AWG Stranded
• Barrel Diameter: 0.38 Inch
• Overall Length: 2.05
• Standards: UL 486A-486B Listed, CSA Certified
• Color Code: White
• Material: Copper
• Number of Holes: 1
