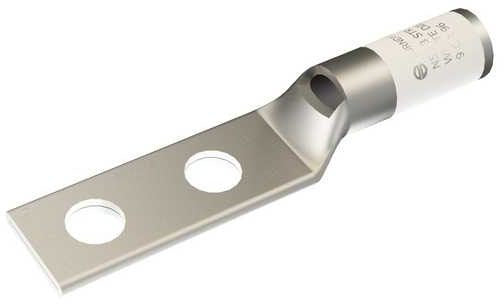

Burndy YA3CL2TC38 HYLUG Compression Terminal 600V 2 AWG 3 AWG

Product Description

The Burndy YA3CL2TC38 is a compression terminal designed for reliable performance in electrical connections. This component supports a voltage rating of six hundred volts to thirty-five kilovolts. The terminal is suitable for copper conductors, accommodating sizes of two AWG solid and three AWG stranded wire.

• Type: Compression Terminal
• Conductor Material: Copper
• Approval: UL 468A/468B, CSA

Product Highlights

This compression terminal is built for durability and efficiency in high voltage applications. It features a short barrel type designed to fit snugly with a variety of wire types.

Product Information

Standard Information

• Manufacturer: Burndy
• UPC: 78181001840

Technical Specifications

• Voltage Rating: 600 V to 35 kV
• Conductor Size: 2 AWG Solid, 3 AWG Stranded
• Barrel Length: 0.88 Inch
• Pad Size: 0.58 Inch W x 0.08 Inch Thk
• Stud Size: 3/8 Inch
• Material: Electro-Tin Plated Copper
• Overall Length: 3.06 Inch
• Temperature Rating: 90 Deg C
