Burndy YA3CL 3 AWG CU One Hole 5/16 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Product Description

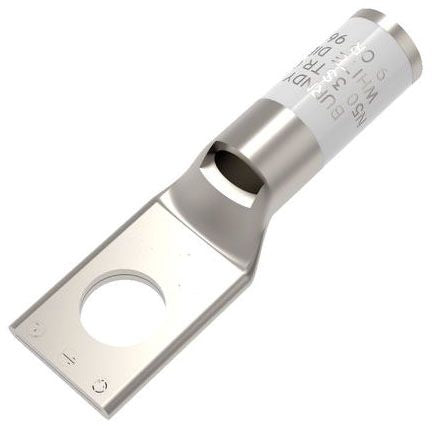

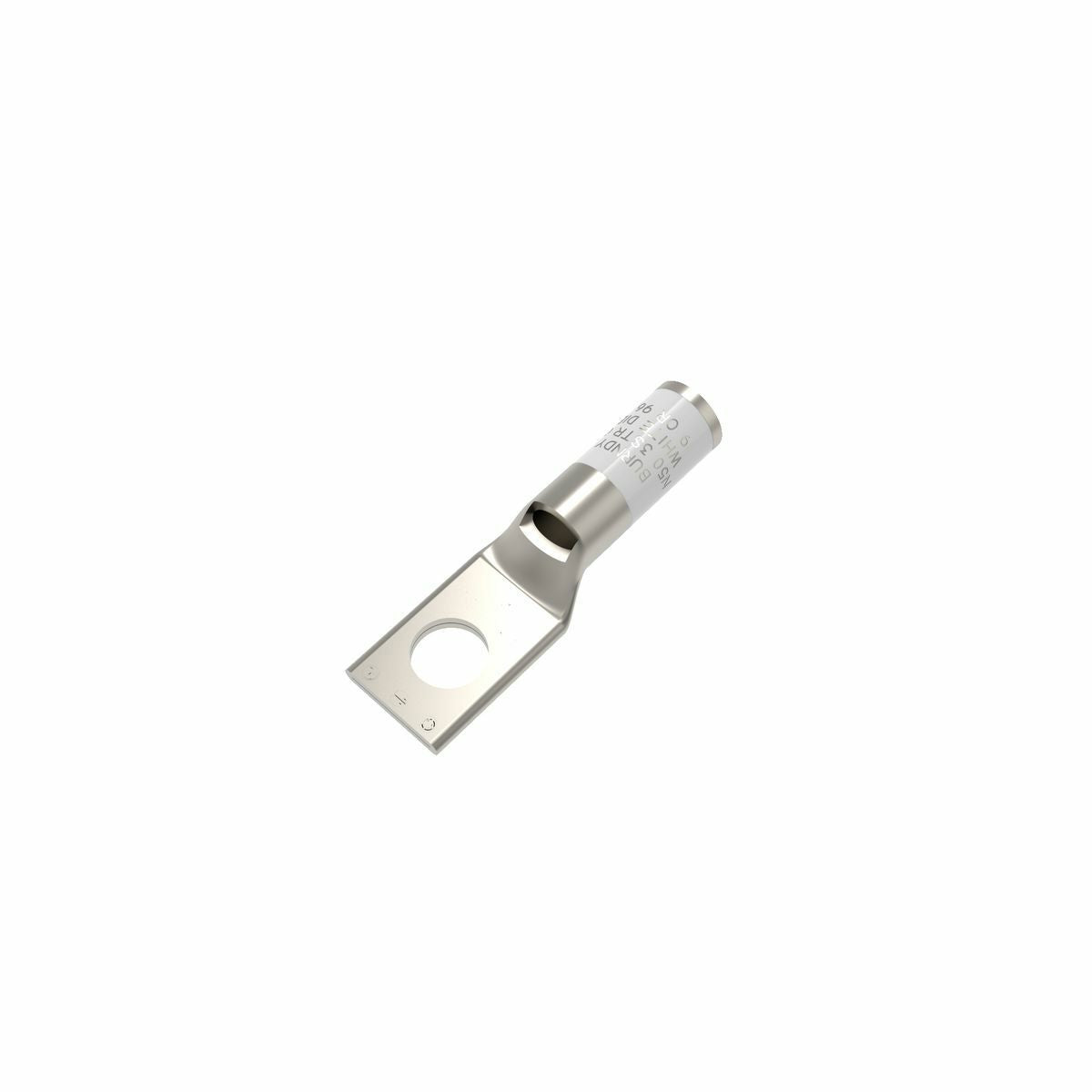

Burndy YA3CL is a compression cable lug designed for reliable wire termination. It features a copper conductor and is rated for voltages up to thirty-five kilovolts. This lug supports wire sizes of two AWG solid or three AWG stranded and includes an inspection window for easy verification.

• Rated for UL/CSA 90°C and up to 35kV voltage.
• Features a tin-plated finish for durability and corrosion resistance.
• Standard barrel design with a pad size of 0.55 inches by 0.09 inches.

Product Highlights

The Burndy YA3CL lug is designed for commercial stranded copper conductors. This product is ideal for applications requiring reliable electrical connections in high-voltage environments.

Product Information

Standard Information

• Catalog Number: YA3CL
• Brand: Burndy

Technical Specifications

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810501252
• Material: Copper
• Special Features: UL Listed 90°C, Electro-Tin Plated, Inspection Window
• Application: Wire Termination
• Voltage Rating: 35kV
• Country of Origin: USA
• Die Index: 9
