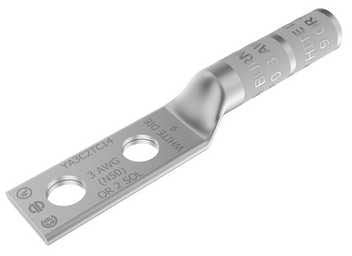

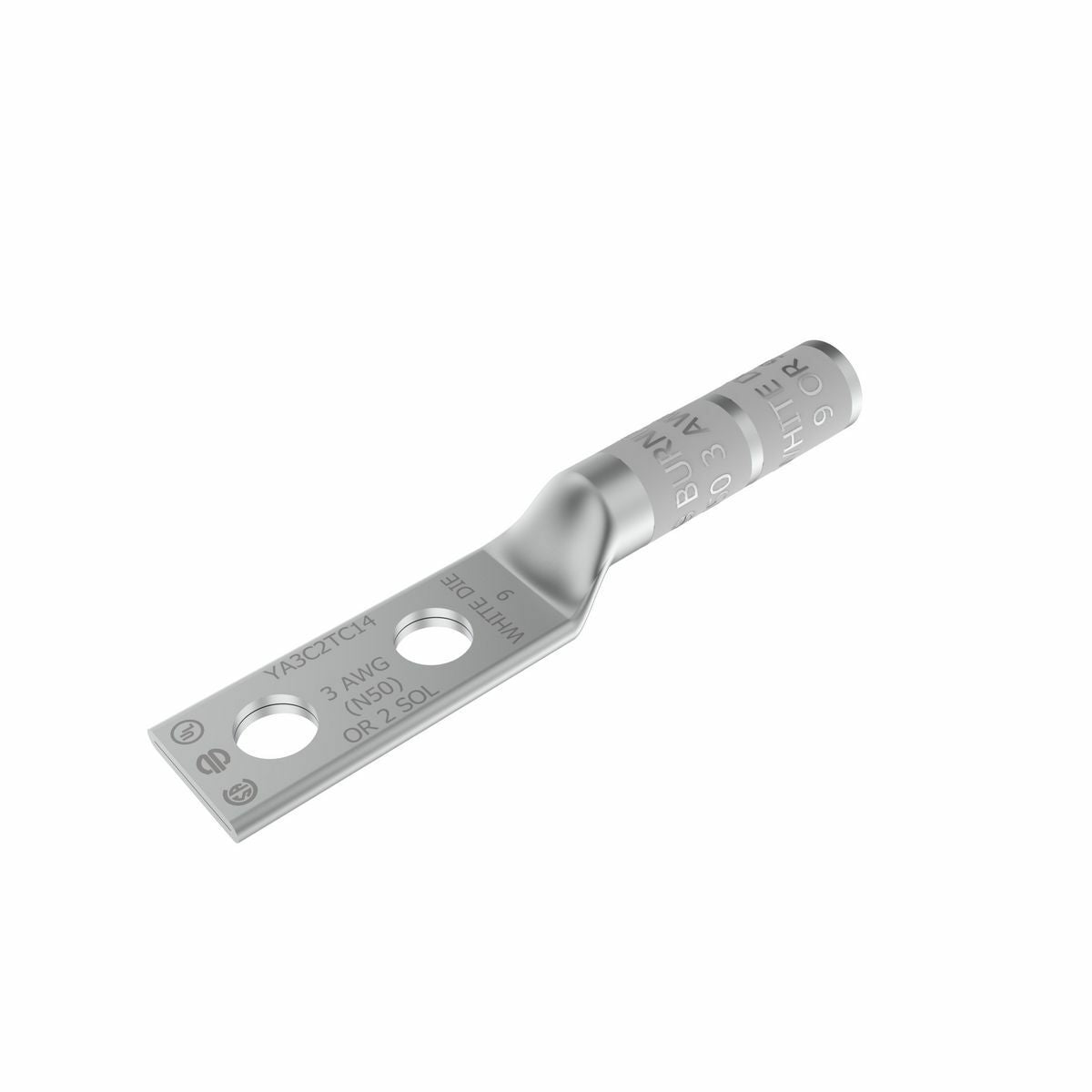

BURNDY YA3C2TC14 3 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV

Product Description

The BURNDY YA3C2TC14 is a copper compression lug designed for wire termination. This product supports conductor sizes of three AWG stranded and two AWG solid wire types, making it suitable for various applications.

• Voltage rating from 600 volts to thirty-five kilovolts
• Electro-tin plated finish for enhanced corrosion resistance
• UL Listed with a maximum temperature rating of ninety degrees Celsius

Product Highlights

This product is essential for reliable electrical connections and complies with UL and CSA standards.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YA3C2TC14
• Material: Copper
• Application: Wire Termination
• Made in USA: Yes
• Special Features: Electro-tin plated, straight tongue angle
• Voltage Rating: 35 kV
• Wire Strip Length: 1-5/16 inches
• Pad Hole Spacing: 5/8 inches
• Item Type: Standard Barrel, Tin Plated
• Cross Reference Products: CLND-3-14-58
