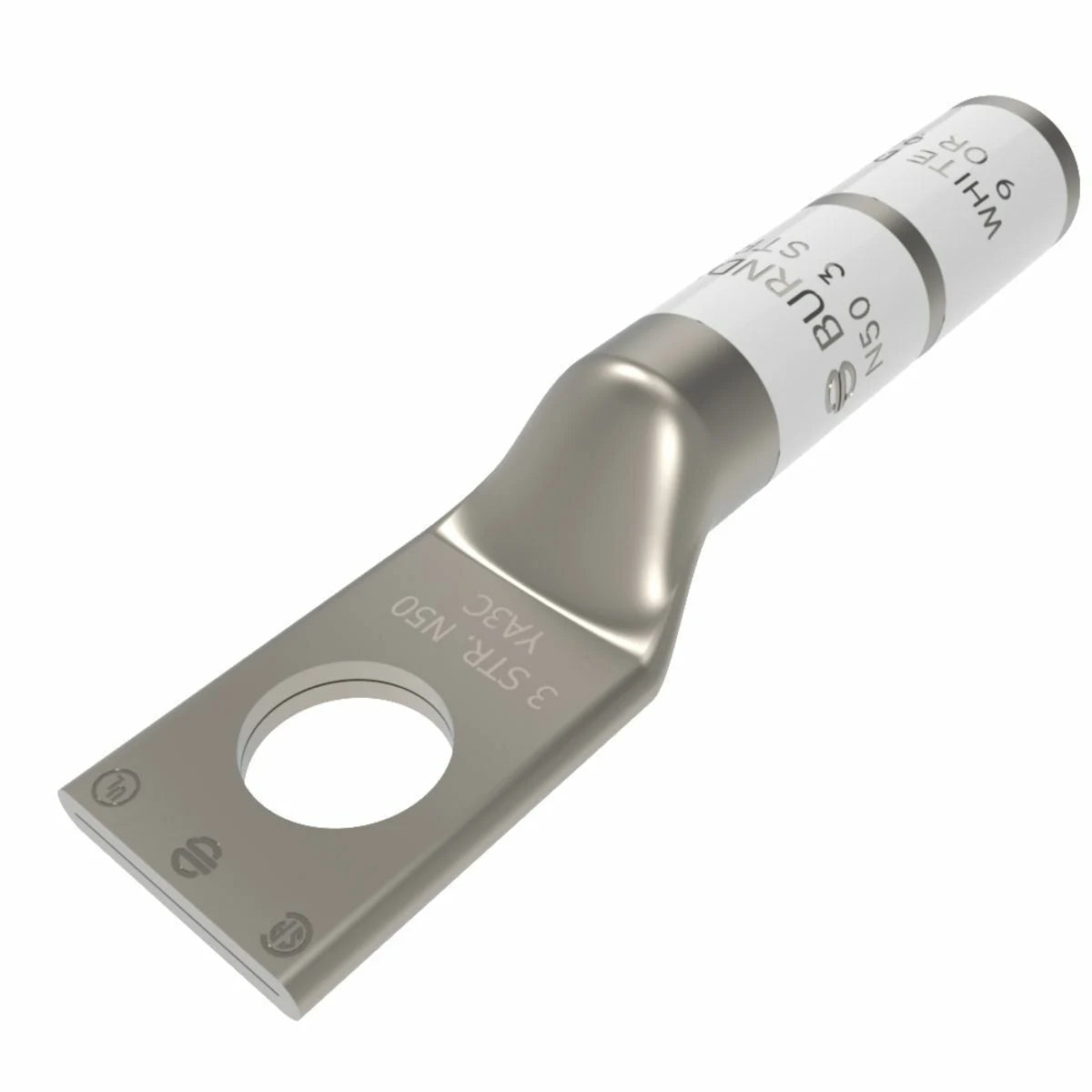

BURNDY YA3C 3 AWG CU, One Hole, 5/16 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, WHITE Color Code, 9 Die Index

Product Description

The BURNDY YA3C is a compression cable lug designed for reliable wire termination. This product is suitable for three AWG copper conductors and can handle voltages up to thirty-five kilovolts. The UL/CSA listed lug features a long barrel with an internal chamfer, which ensures a secure connection.

• Voltage Rating: 35 kV
• Material: Copper with electro-tin plating
• Die Index: 9

Product Highlights

The BURNDY YA3C ensures a durable and efficient wiring connection, designed for various applications in the electrical field.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA3C
• Material: Copper
• Country of Origin: United States
• Special Features: UL Listed 90°C, 600 V - 35 kV, 45° and 90° angles available
• Wire Strip Length: 1.5 inches
• Overall Length: 2.3 inches
• Pad Size: 0.55 inches width x 0.09 inches thickness
• Stud Size: 5/16 inch
• Temperature Rating: 90°C
