Burndy YA39L Hylug 750 Kcmil Cu, 1-Hole, 5/8 inches Stud, Standard Barrel

Product Description

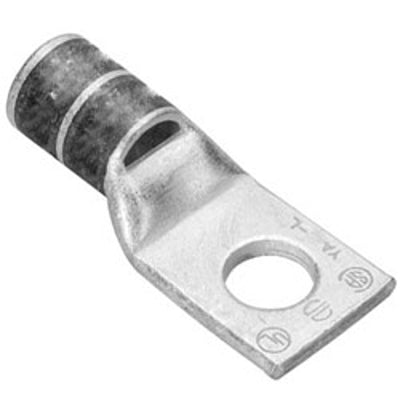

The BURNDY YA39L HYLUG is a 750 kcmil copper, one-hole lug with a 5/8" stud and standard barrel. It features an inspection window and internal chamfer. The barrel is designed with an internal chamfer for smooth wire insertion, preventing strand damage. It is electro-tin plated to reduce galvanic corrosion and resist corrosive elements. Connectors are marked with stamping and color coding.

• Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
• Standard barrel length is recommended for installations with limited space availability
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements

Product Highlights

The BURNDY YA39L lug is engineered for reliable electrical connections, suitable for central office and wireless communication markets.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA39L
• Country of Origin: China

Technical Specifications

• Application: Wire Termination
• Catalog Number: YA39L
• Color Code: Black
• Connector Type: STANDARD BARREL
• Die Index: 24
• EU RoHS Indicator: Yes
• Feature - Barrel Style: Chamfered, Skived
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Material: COPPER
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLUG
• Trade Name: HYLUG
• Type: Standard Barrel, Tin Plated
• UPC: 781810522653
• UPC 14 Digit GTIN: 00781810522653
• Dimension - B Length fraction: 1-7/16 in
• Dimension - B Length inch: 1.42 in
• Dimension - Bolt Hole Size inch: 0.66 in
• Dimension - Bolt Size fraction: 5/8
• Dimension - Bolt Size inch: 0.63
• Dimension - D inch: 1.33 in
• Dimension - Hole Size fraction: 5/8
• Dimension - Hole Size inch: 0.69 in
• Dimension - Hole Size mm: 17.5 mm
• Dimension - L Length Overall mm: 91 mm
• Dimension - Length Overall inch: 3.57 in
• Dimension - N inch: 0.66 in
• Dimension - Outside Diameter inch: 1.30 in
• Dimension - Pad Width inch: 1.91 in
• Dimension - Strip Length inch: 1-15/16
• Dimension - Stud Size fraction: 5/8
• Dimension - Stud Size inch: 5/8
• Dimension - Z (inch): 0.67 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper DLO Size Range: N/A
• Conductor - Copper Str Size: 750 KCMIL
• Conductor - Copper Str Size Range: 750 kcmil
• Conductor - Material: COPPER
• Conductor Size: 750 KCMIL
• Conductor Type: CODE
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Model: YA39L
• Hole Size: 5/8 Inch
• Lug Material: Copper
• Lug Size: 750 MCM
• Barrel Size: Short
• Stud Hole Size: 5/8 in.
• Stocked: Yes
• Brand: Burndy
• Country of Origin: China
