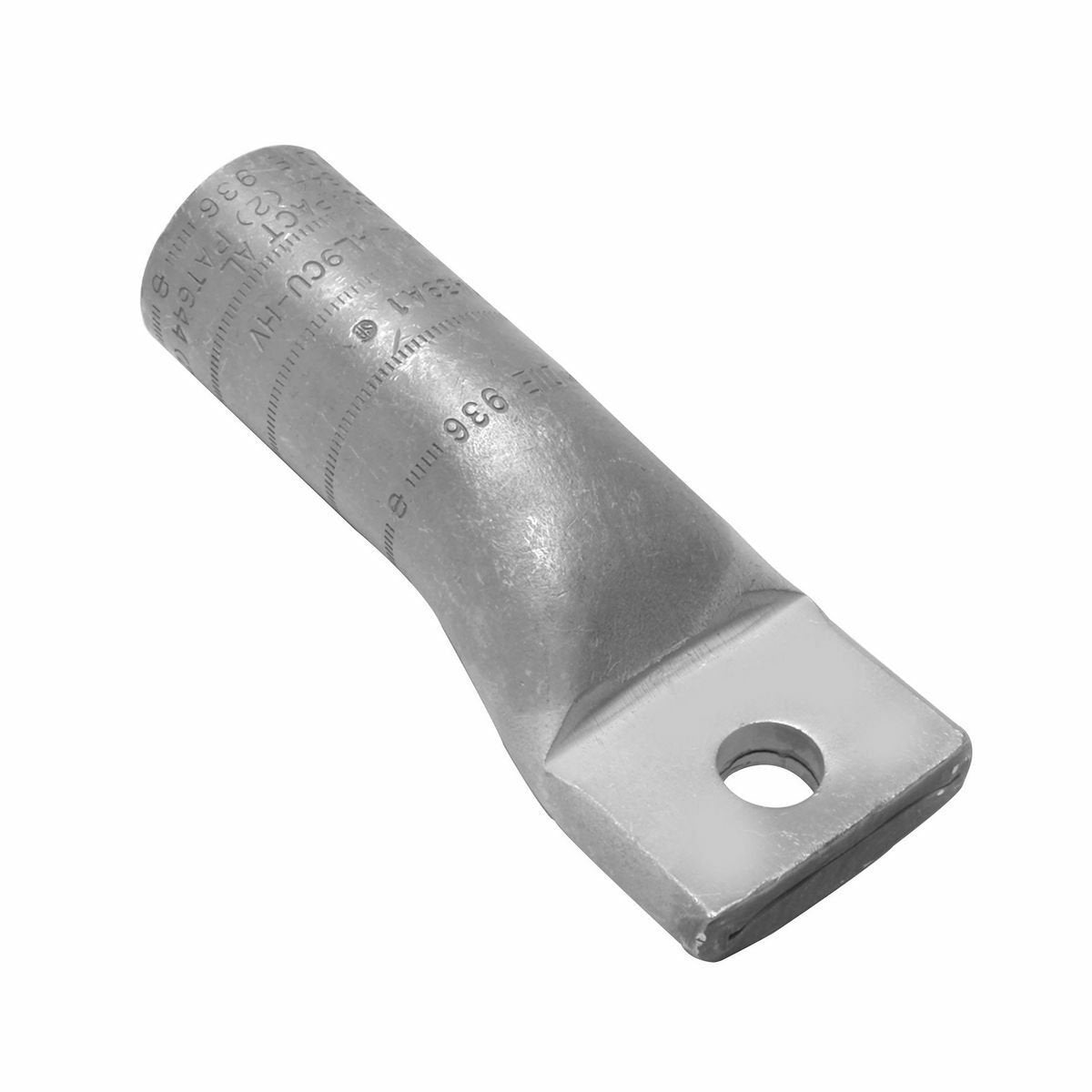

Burndy YA39A1 AL Terminal One Hole 1/2 Stud Size Up to 35kV

Product Description

Burndy YA39A1 is a terminal designed for wire termination. This one hole terminal accommodates aluminum and copper conductors with sizes up to 750 KCMIL. The product features aluminum and a tin-plated finish for enhanced conductivity. It comes with a prefilled PENETROX end cap, facilitating a permanent connection.

• Voltage rating up to thirty-five kV
• Made in the USA
• UL Listed for safety

Product Highlights

This terminal is reliable for heavy-duty applications and provides effective wire connections, ensuring low resistance and high conductivity.

Product Information

Standard Information

• Catalog Number: YA39A1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Stud Size: 1/2 inch
• Pad Size: 2.05 inches W x 0.43 inches thick
• Overall Length: 5.26 inches
• Wire Strip Length: 2-7/8 inches
• Special Features: Includes color-coded end caps and internal chamfer for easy cable insertion
