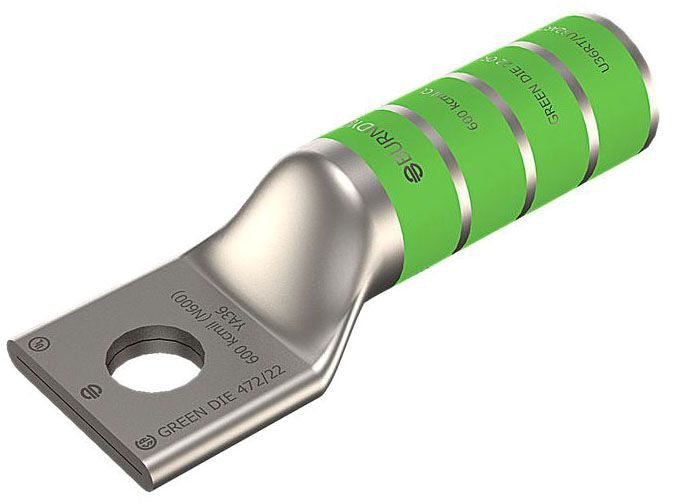

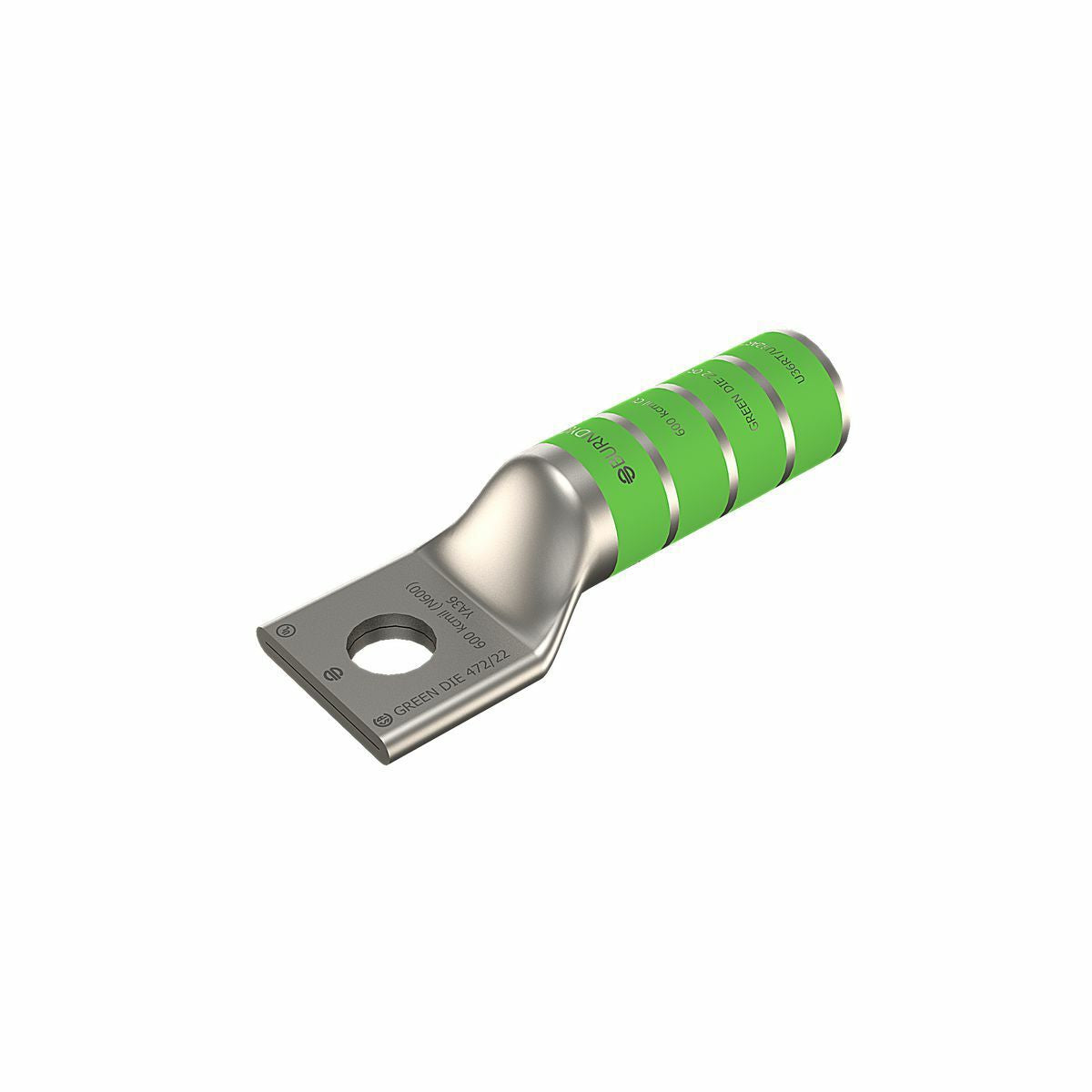

BURNDY YA36N 600 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated UL/CSA 90?C, Up to 35kV

Product Description

The BURNDY YA36N is a compression cable lug designed for high voltage applications. It supports a conductor material of copper and is suitable for wire termination. This product is UL listed and CSA approved, supporting voltage ratings from six hundred volts to thirty-five kilovolts.

• Supports conductor sizes up to 600 kcmil.
• Includes a straight tongue angle with an internal chamfer.
• Meets standards for UL 486A-486B.

Product Highlights

This lug features a green color code for easy identification and has a temperature rating of ninety degrees Celsius. It allows for efficient wire stripping with a length of two and three-quarter inches.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA36N
• Material: Copper
• Voltage Rating: 35
• Application: Wire Termination
• Made in USA: Yes
• Special Features: UL Listed 90°C, 600 V - 35 kV, Die Index: 22 or 472
• Country of Origin: United States
