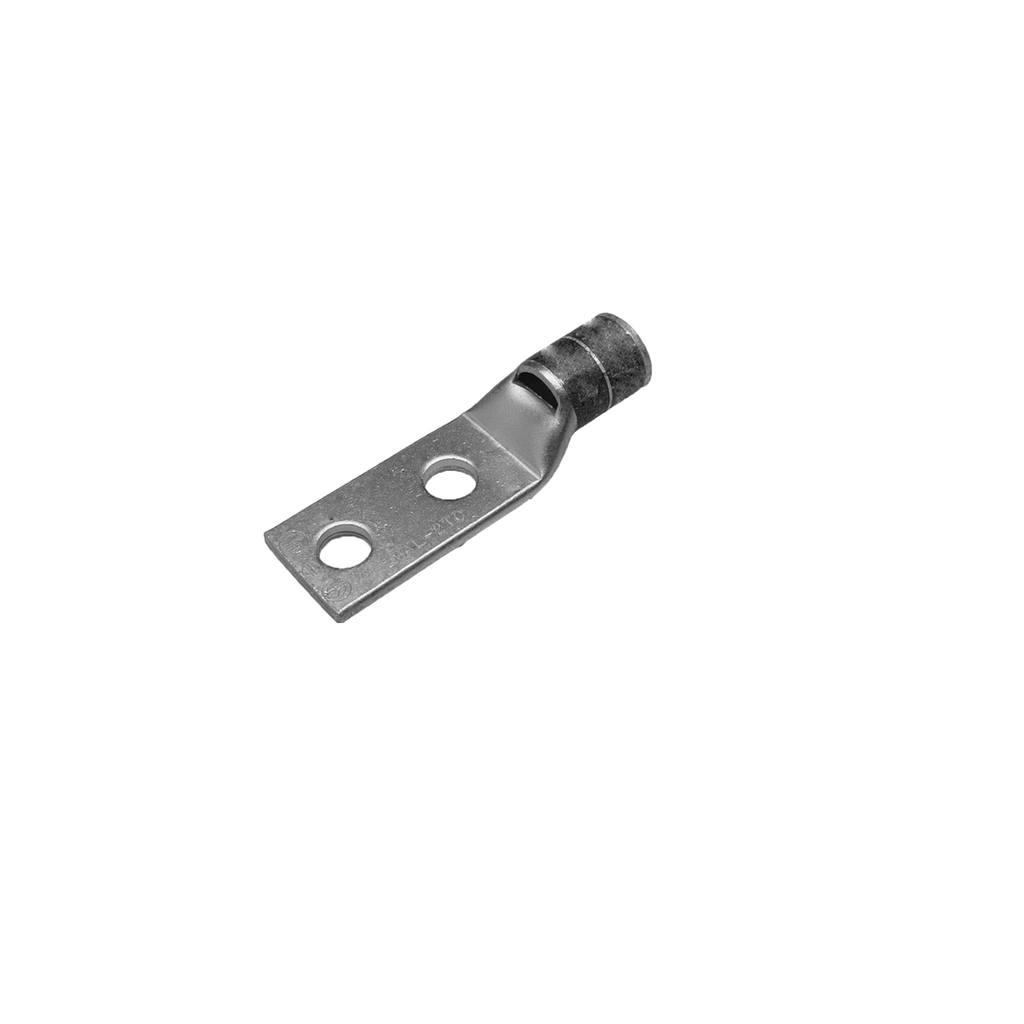

Burndy YA36L2TC38 HYDENT Lug 600 kcmil CU 3/8 Stud Size

Brand: BURNDY
SKU: YA36L2TC38
Availability: In Stock

Ships same day if ordered by 12 pm
$82.57
$82.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY YA36L2TC38 HYDENT lug is a copper compression tubular terminal designed for code conductors. This 2-hole lug features an inspection window and accommodates a 600 kcmil conductor with a 3/8" stud. It is UL Listed 90 DEG C, and suitable for 600 V - 35 kV applications. The lug has a green color code and uses a die index of 22 or 472.

  • UL Listed 90 DEG C, 600 V - 35 KV
  • Electro-Tin Plated finish
  • Designed with internal chamfer at wire entry for smooth wire insertion

Product Highlights

This copper compression lug ensures secure wire termination with its standard barrel, tin plating, and inspection window.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: YA36L2TC38
  • Country of Origin: US - United States
Technical Specifications
CSA
Yes
Type
Standard Barrel, Tin Plated
Brand
Burndy
Width
1.74 in
Finish
Tin Plated
Height
1.19 Inch
Length
4.23 Inch
Plated?
Yes
Voltage
35,000 Volt
Material
Copper
Hole Size
10 mm
Stud Size
0.375 in
Sub Brand
HYDENT
Cable Size
600 KCMIL, 300 SQ-MM For Class 2 Conductor
Max Voltage
35000 V
Applications
For Code Conductor
Color Coding
Green
Plating Type
Tin
Conductor Size
600 kcmil
Overall Length
4.23 in
Connection Type
Terminal
Number of Holes
2 Hole
Country of Origin
USA
Conductor Material
Copper
Stud Hole Spacing
1 in.
Die Color
Green
Color Family
Green
Voltage Rating
600 V to 35 kV
Barrel Type
Short, Standard, Straight
Barrel Length
1.38 Inch
Pad Size
1.74 Inch W x 0.27 Inch Thk
Number of Pad Holes
2
Pad Hole Spacing
1 Inch
Die Index
22/472
Approval
UL 468A/468B, CSA
RoHS Compatible
True
Includes Inspection Window
True
Temperature Rating
90 Deg C
Wire Strip Length
1-3/4 Inch
Cable Entry Type
Beveled Entry, Chamfered
Application
Wire Termination
Catalog Number
YA36L2TC38
Connector Type
STANDARD BARREL
EU RoHS Indicator
Yes
Feature - Barrel Style
Chamfered
Feature - Barrel Type
Standard
Finish Type
Tin-Plated
Physical Attribute - Number of Holes
2
Physical Attribute - Tongue Type
Standard
Plated
Y
Trade Name
HYLUG™
Dimension - B Length inch
1.38 in
Dimension - Bolt Hole Size inch
0.39 in
Dimension - Bolt Size fraction
3/8
Dimension - Bolt Size inch
0.38
Dimension - Hole Size fraction
3/8
Dimension - Hole Size inch
0.41
Dimension - Hole Size mm
10.4 mm
Dimension - L Length Overall mm
107 mm
Dimension - N inch
0.50 in
Dimension - Outside Diameter inch
1.19 in
Dimension - Pad Width inch
1.74 in
Dimension - Strip Length inch
1-3/4
Dimension - Stud Size fraction
3/8
Dimension - Z (inch)
0.52 in
Physical Attribute - Tongue Angle
Straight
Voltage - Maximum
35000
Conductor - Copper DLO Size Range
N/A
Conductor - Copper Str Size
600 KCMIL
Conductor - Copper Str Size Range
600 kcmil
Conductor Type
CODE
Industry Standard(s)
UL 486A-486B
Standards - Industry Standards Met
UL 486A-486B
Standards - RoHS Compliance Status
CM
UL Listed
Yes
Lug Wire Size
600 kcmil
Use With
Copper
Stud Holes
2
Screw/​Stud Size
3/8"
Lug L x Tongue W
4.23 x 1.73"
