BURNDY YA34N 500 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV

Product Description

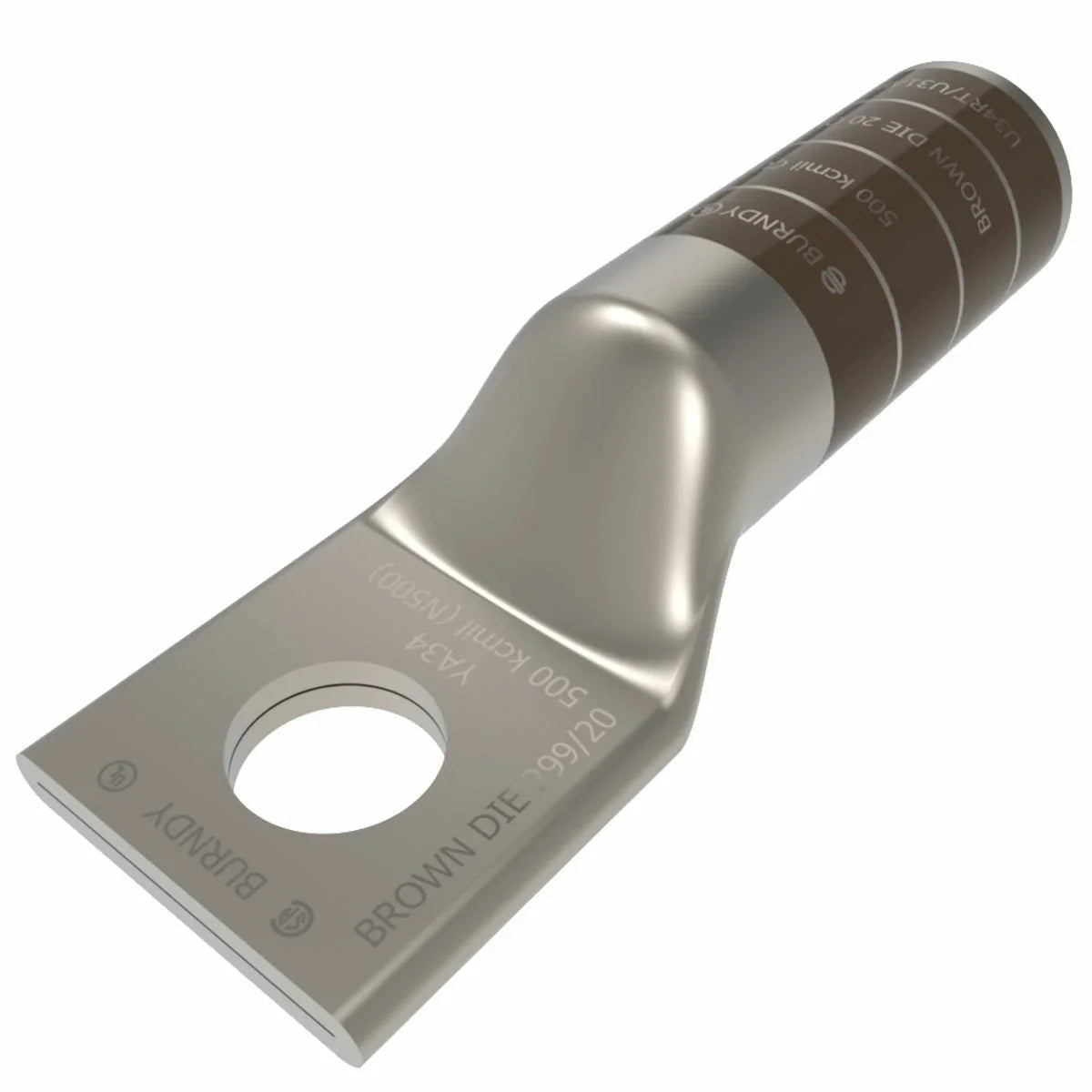

BURNDY YA34N is a compression cable lug designed for wire termination. It accommodates a conductor size of 500 kcmil and is made from copper. It features a long barrel with an internal chamfer and is tin plated for enhanced durability. This product meets UL and CSA standards and is rated for a voltage up to thirty-five kilovolts.

• UL Listed for safety and reliability
• Temperature rated for ninety degrees Celsius
• Designed for use with stranded copper conductors

Product Highlights

The BURNDY YA34N is well-suited for commercial electrical applications, providing a secure connection for high-voltage systems.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA34N
• Material: Copper
• Voltage Rating: 35 kV
• Application: Wire Termination
• Special Features: UL Listed, Temperature Rating 90 degrees C, Electro-Tin Plated
• Country of Origin: United States
• Cross Reference Products: L50048, 54918BE
• Wire Strip Length: 2-5/16 inches
