Burndy YA34LTC38FX 350 kcmil CU Lug 3/8 Stud Size

Product Description

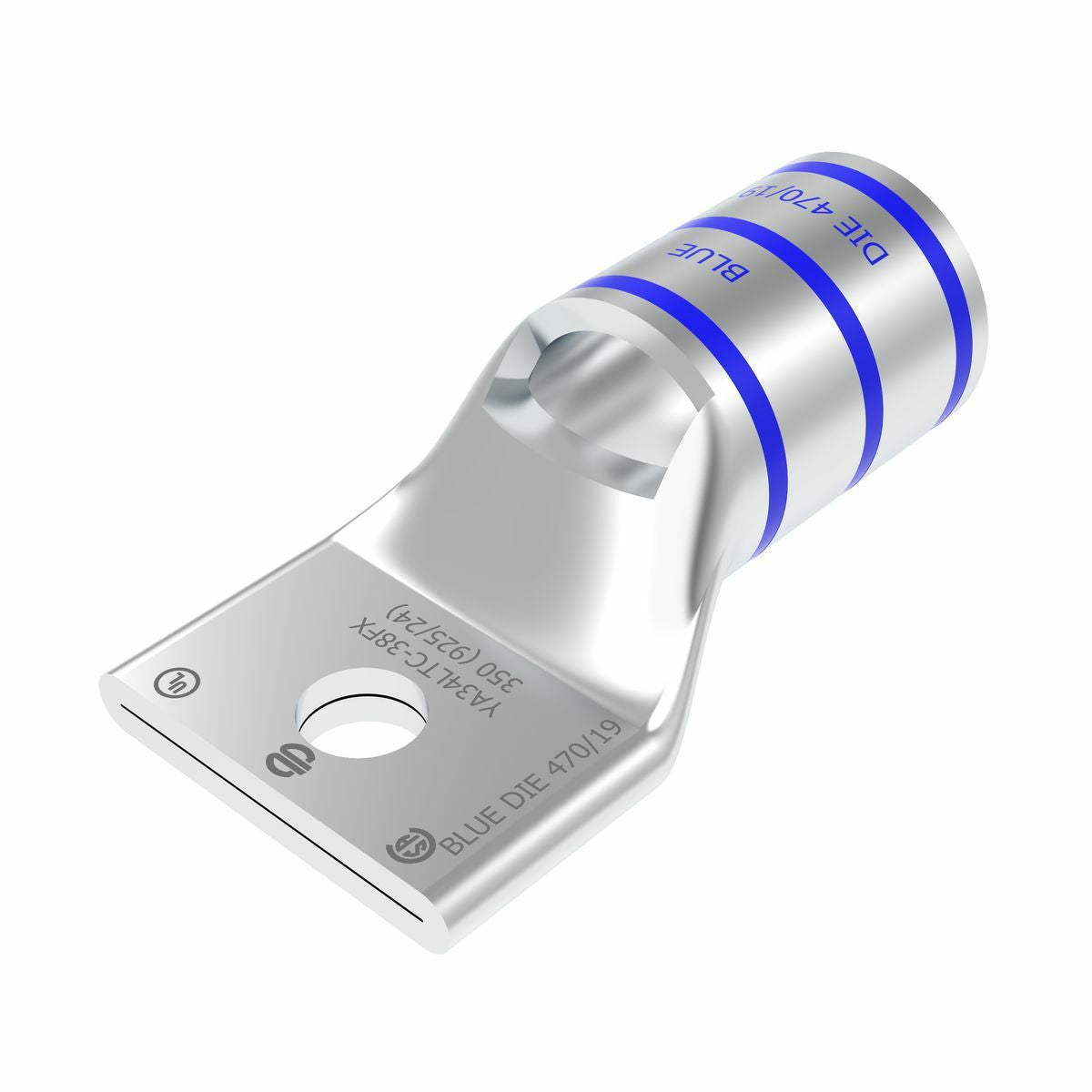

The BURNDY YA34LTC38FX is a 350 kcmil copper compression lug with one hole and a 3/8 stud size. This standard barrel, tin-plated lug features an inspection window and internal chamfer. It is UL/CSA certified, suitable for temperatures up to 90°C, and voltages up to 35kV. The lug is designed for wire termination and flexible conductors.

• UL Listed 90 DEG C, 600 V - 35 KV
• Electro-Tin Plated Finish
• Straight Tongue Angle
• Flexible conductor type

Product Highlights

Standard barrel, tin-plated copper compression lug with inspection window and 3/8 stud size. Suitable for wire termination.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA34LTC38FX
• Country of Origin: United States

Technical Specifications

• Catalog Number: YA34LTC38FX
• Manufacturer: Burndy
• Brand: BURNDY
• Sub Brand: HYLUG
• Country of Origin: United States
• Made in USA: Yes
• Application: Wire Termination
• Material: COPPER
• Standard: UL 486A-486B
• UPC: 781810134658
• GTIN: 00781810134658
• Item Type: Standard Barrel, Tin Plated
• Voltage Rating: 35
• ECCN: EAR99
• UNSPSC: 39121405
• Die Color: Blue
• Color Family: Blue
• Lug Wire Size: 350 kcmil
• Stud Size: 3/8 in.
• Barrel Type: Standard, Straight
• Barrel Length: 1.27 Inch
• Pad Size: 1.55 Inch W x 0.23 Inch Thk
• Number of Pad Holes: 1
• Die Index: 19/470
• Plating Material: Electro-Tin
• Overall Length: 2.87 Inch
• Approval: UL, CSA
• RoHS Compatible: Yes
• Temperature Rating: 90 Deg C
• Wire Strip Length: 1-5/16 Inch
• Cable Entry Type: Chamfered
• Country Of Origin: USA
• Description: CULUG 350 FLEX 3/8 STUD
• Terminal Type: Barrel - Standard
• Wire Size Range: 373.7 kcmil
• Insulated: Non-Insulated
• Tongue Width: 1.55 "
• Maximum Temperature: 194 °F
