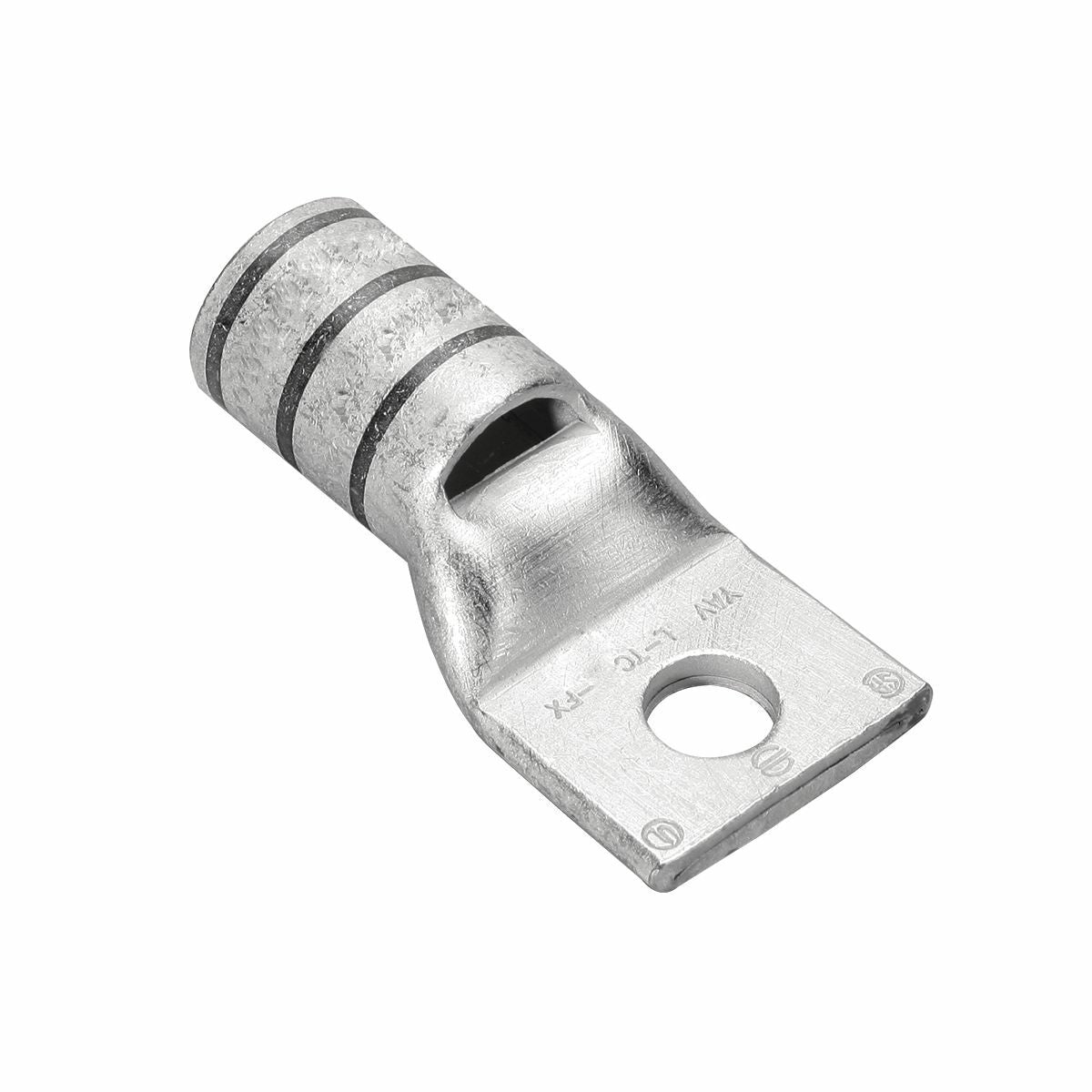

BURNDY YA34LTC12FX 350 KCMIL DLO CU One Hole 1/2 Stud Size Standard Barrel Inspection Window Internal Chamfer

Product Description

The BURNDY YA34LTC12FX is a compression cable lug designed for wire termination. This cable lug accommodates a conductor size of three hundred fifty kcmil with a standard barrel and features an inspection window. The lug is tin plated and suitable for voltages ranging up to thirty-five kV.

• Voltage rating is up to thirty-five kV
• Constructed from copper with electro-tin plating
• Meets UL/CSA standards and has a temperature rating of ninety degrees Celsius

Product Highlights

This cable lug is ideal for applications in electrical installations that require reliable connections.

Product Information

Standard Information

• Catalog Number: YA34LTC12FX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Application: Wire Termination
• Special Features: UL Listed, Temperature Rating: 90°C, Standard Barrel, Inspection Window
• Wire Strip Length: 1-5/16 inches
• Country of Origin: United States
• UPC: 781810543214
• GTIN: 00781810543214
