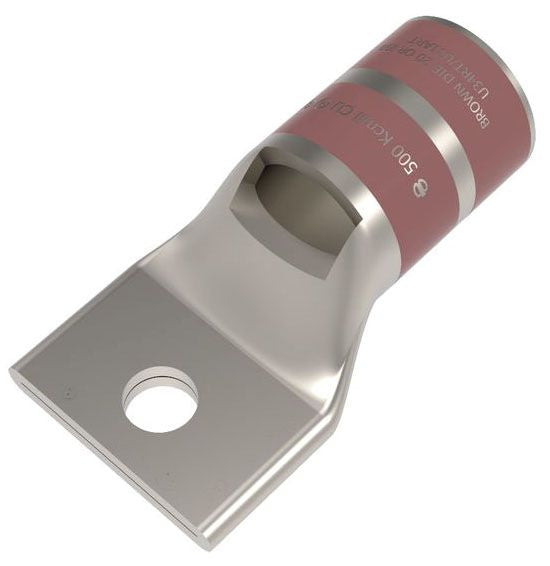

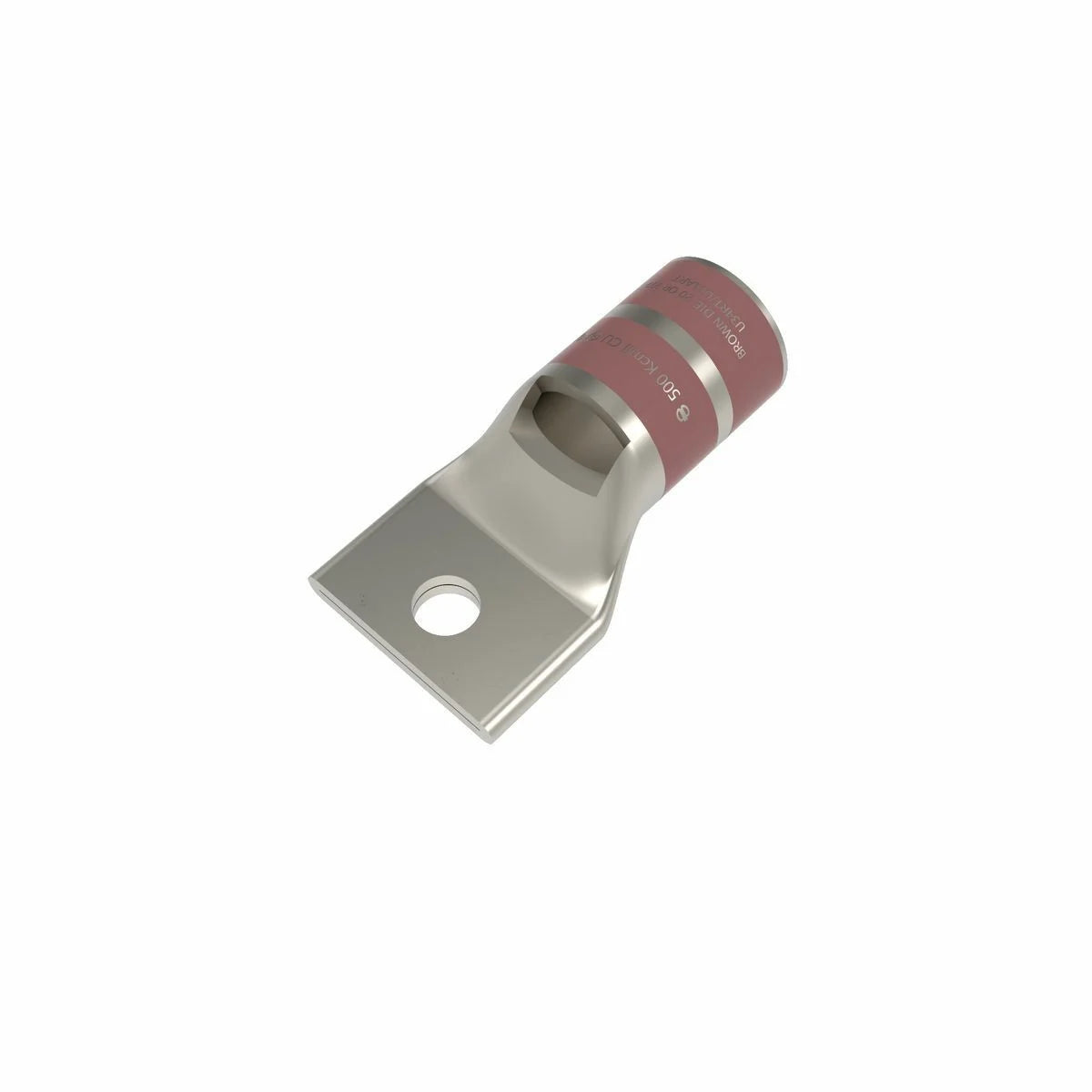

BURNDY YA34L6 500 kcmil CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV, BROWN Color Code, 20 or 299 Die Index

Product Description

The Burndy YA34L6 is a compression cable lug designed for wire termination applications. This product is suitable for conductors up to five hundred kcmil and can handle voltage ratings from six hundred volts to thirty-five kilovolts. Constructed from copper, it features a standard barrel with an inspection window and internal chamfer for ease of use.

• Voltage rating: From six hundred volts up to thirty-five kilovolts
• Material: Copper with electro-tin plating
• Application: Ideal for wire termination

Product Highlights

This lug is UL and CSA approved, making it reliable for various electrical applications. It is made in the United States and comes with specific features that enhance durability and performance.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA34L6
• Material: Copper
• Voltage Rating: 35 kV
• Die Index: 20 or 299
• Wire Strip Length: 1-7/16 inches
• Special Features: UL Listed 90 degrees Celsius, 600 V - 35 kV, internal chamfer, standard barrel, electro-tin plated finish, straight tongue angle
• Country of Origin: United States
• UPC: 781810506226
