Burndy YA34L2TC38 500 kcmil CU Two Hole Lug 3/8 Stud Size

Product Description

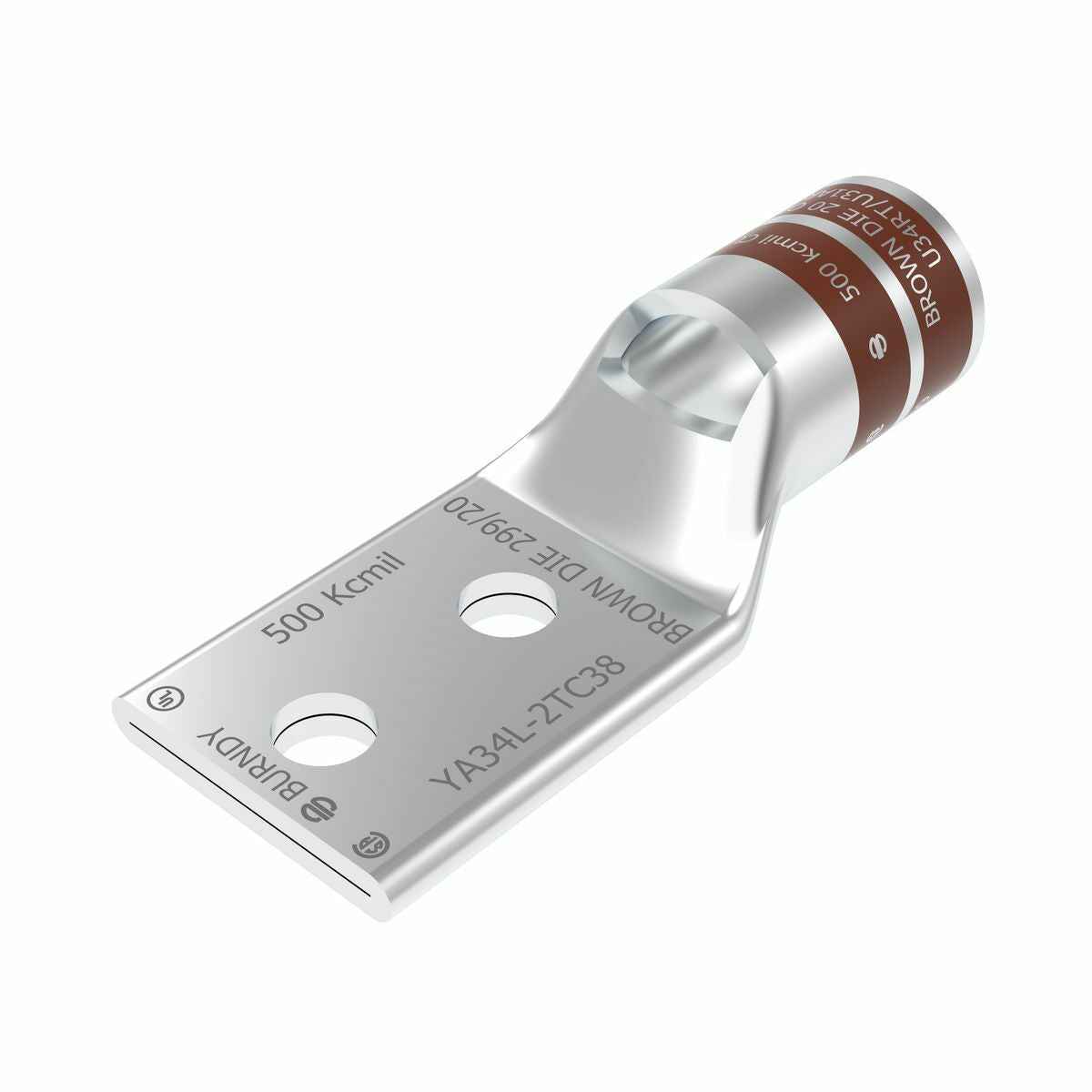

The BURNDY YA34L2TC38 is a 500 kcmil CU, two-hole lug with a 3/8 stud size. It features a standard barrel, inspection window, and internal chamfer, and is tin plated. This lug is UL/CSA certified, suitable for up to 35kV, and has a brown color code with a die index of 20 or 299. Designed for wire termination.

• UL Listed 90 DEG C, 600 V - 35 KV
• Die Index: 20
• Electro-Tin Plated finish

Product Highlights

This copper compression lug ensures secure wire termination with its two-hole design and inspection window.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA34L2TC38
• Country of Origin: US - United States

Technical Specifications

• Catalog Number: YA34L2TC38
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Sub Brand: HYLUG
• Country of Origin: United States
• Made in USA: Yes
• Application: Wire Termination
• Material: COPPER
• Standard: UL 486A-486B
• UPC: 781810503690
• GTIN: 00781810503690
• Item Type: Standard Barrel, Tin Plated
• Voltage Rating: 35 kV
• Die Color: Brown
• Stud Hole Spacing: 1 in.
• Lug Wire Size: 500 kcmil
• Stud Size: 3/8 in.
• Color Code: Brown
• Conductor Type: CODE
• Tongue Angle: Straight
• Temperature Rating: 90 DEG C
• Wire Strip Length: 1-7/16 IN
• Finish: Electro-Tin Plated
• Die Index: 20
• Bolt Size: 3/8 in
• Hole Spacing: 1 in
• Product Name: YA34L2TC38; Compression Terminal; 500 kcmil Cu; 2-Hole; 3/8IN Stud; 1IN Spacing;
• Product Type: TERMINAL
• Voltage - Maximum: 35000
• Dimension - N inch: 0.41 in
• Feature - Barrel Type: Standard
• FV_Industry Standard(s): UL 486A-486B
• FV_Conductor - Copper Str Size: 500 kcmil
• Physical Attribute - Tongue Angle: Straight
• Conductor Size: 500 KCMIL
• UL Listed: Yes
• Plated: Y
• Plating Type: Tin - Electro Plated
• Dimension - B Length inch: 1.27 in
• Dimension - Bolt Hole Size inch: 0.39 in
• Dimension - Hole Size inch: 0.41
• Dimension - L Length Overall mm: 99 mm
• Dimension - Outside Diameter inch: 1.06 in
• Dimension - Pad Width inch: 1.55 in
• Dimension - Strip Length inch: 1-7/16
• Dimension - Stud Size inch: 3/8
• Dimension - Z (inch): 0.42 in
• Outside Diameter: 1.06 in
• Physical Attribute - Number of Holes: 2
• Conductor - Copper Str Size Range: 500 kcmil
• Conductor - Material: COPPER
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Feature - Barrel Style: Chamfered, Skived
• Connector Type: STANDARD BARREL
• Trade Name: HYLUG™
• Certification - CSA Approved: Yes
• Finish Type: Tin-Plated
