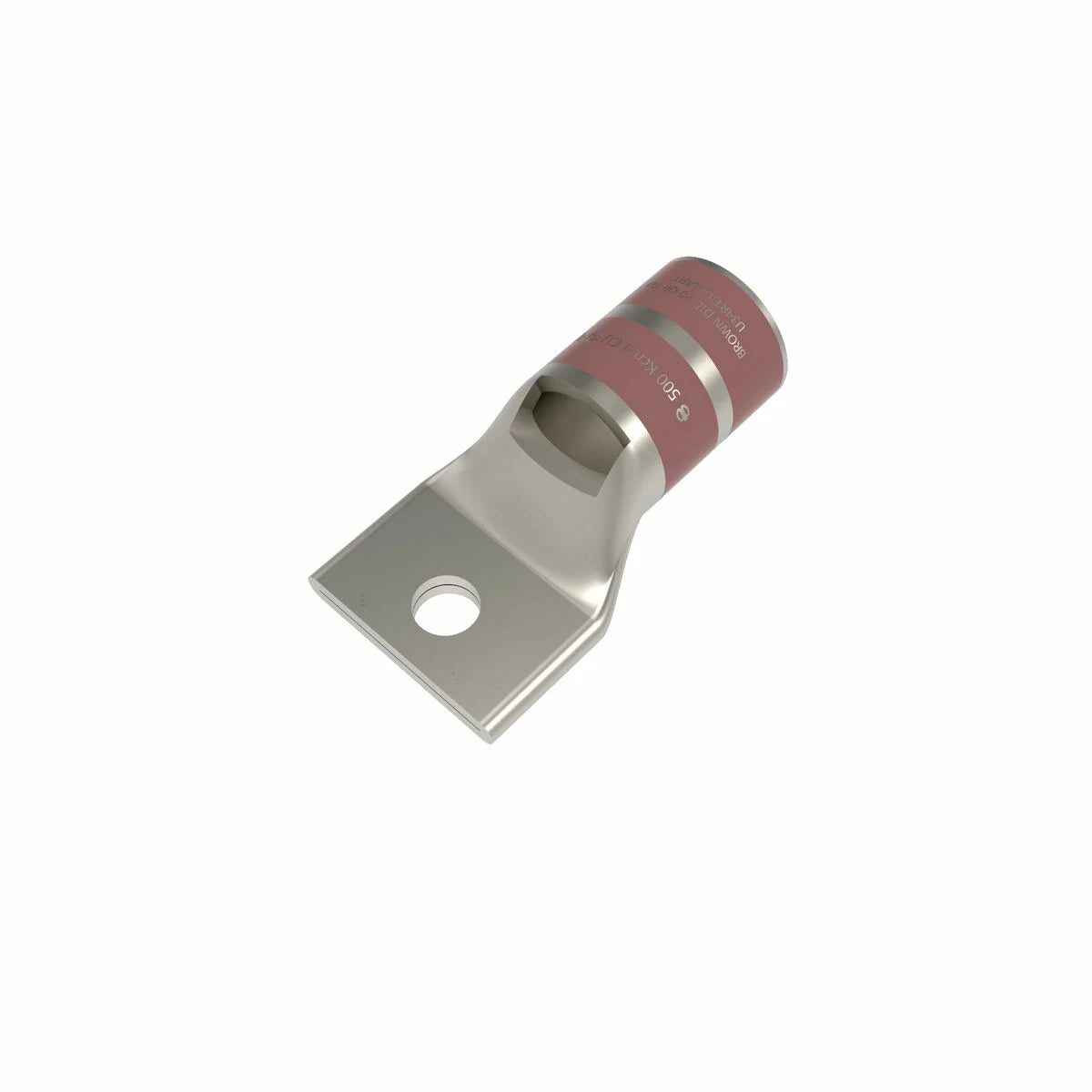

BURNDY YA34L CABLE TERMINALS
BURNDY BURNDY YA34L 500 kcmil CU, One Hole, 5/8 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV, BROWN Color Code, 20 or 299 Die Index
BURNDY YA34L CABLE TERMINALS
BURNDY YA34L 500 kcmil CU, One Hole, 5/8 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV, BROWN Color Code, 20 or 299 Die Index

BURNDY YA34L 500 kcmil CU, One Hole, 5/8 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV, BROWN Color Code, 20 or 299 Die Index

Brand: BURNDY
SKU: YA34L
Availability: In Stock

Ships same day if ordered by 12 pm
$20.33
$20.33
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY YA34L is a copper compression cable lug designed for wire termination applications. This lug features a standard barrel with an inspection window and is UL listed for safety and reliability. With a voltage rating of thirty-five kilovolts, it is suitable for a variety of high-voltage applications.

  • Compatible with 500 kcmil stranded copper conductors
  • Features an internal chamfer and electro-tin plating for corrosion resistance
  • Designed for use with a variety of crimping tools

Product Highlights

The BURNDY YA34L lug combines durability and performance for any electrical project. It ensures a secure connection and complies with industry standards.

Product Information

Standard Information

  • Manufacturer: Burndy, a Hubbell affiliate
  • Country of Origin: United States
Technical Specifications
Catalog Number
YA34L
Material
Copper
Voltage Rating
35 kV
Stud Size
5/8 inch
Wire Strip Length
1-7/16 inches
Weight
0.35 pounds
Die Index
20/299
Temperature Rating
90 °C
