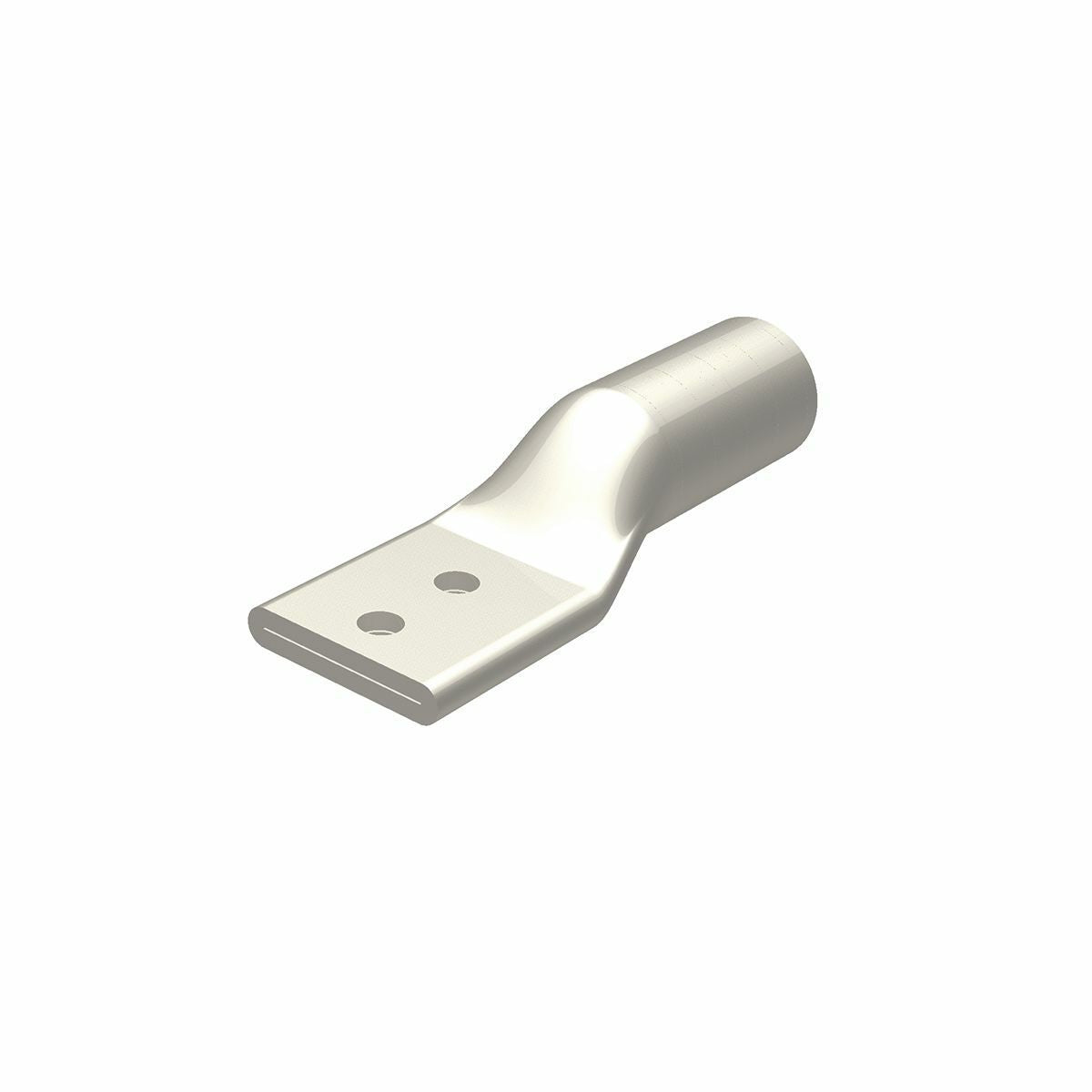

BURNDY YA34A3 500 kcmil AL Terminal Two Hole 1/2 Stud Size 1-3/4 Hole Spacing

Product Description

The BURNDY YA34A3 is a 500 kcmil aluminum terminal designed for effective wire termination. This dual-hole terminal features a half-inch stud size and a hole spacing of one and three-quarters inches. It is created from high-quality aluminum, ensuring durability and reliability in electrical applications. The terminal is equipped with an internal chamfer and is tin plated for enhanced conductivity. It complies with UL and CSA standards, rated for a maximum operating temperature of ninety degrees Celsius and suitable for voltages up to thirty-five kilovolts.

• Designed for wire termination.
• Made of aluminum with tin plating.
• Meets UL and CSA standards.

Product Highlights

This terminal is ideal for applications requiring strong and durable connections in electrical systems.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA34A3
• Application: Wire Termination
• Material: Aluminum
• Special Features: UL Listed 90°C, 600 V - 35 KV, Tongue Angle: Straight
• Voltage Rating: 35 kV
• Country of Origin: Mexico
• Cross Reference Products: ALND-500-12-134, AL500N, 60273
