BURNDY YA34 500 kcmil Cu, One Hole, 5/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV

Product Description

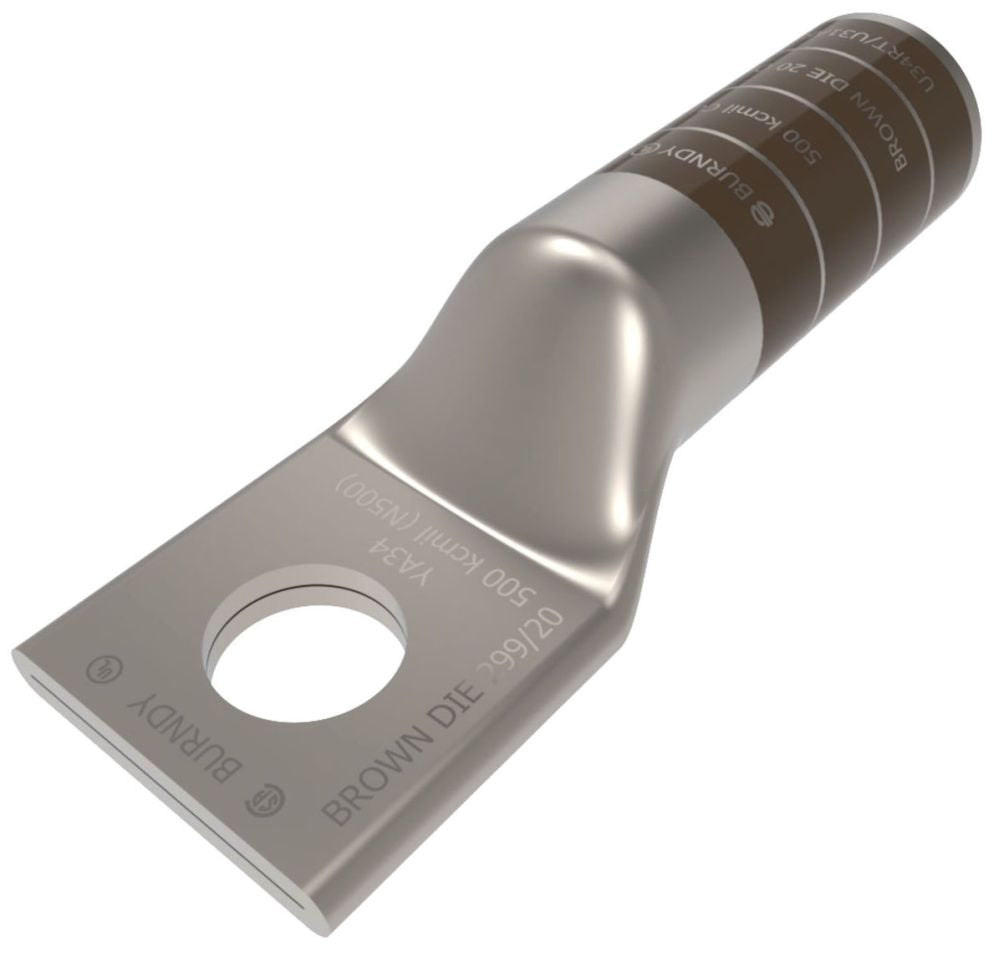

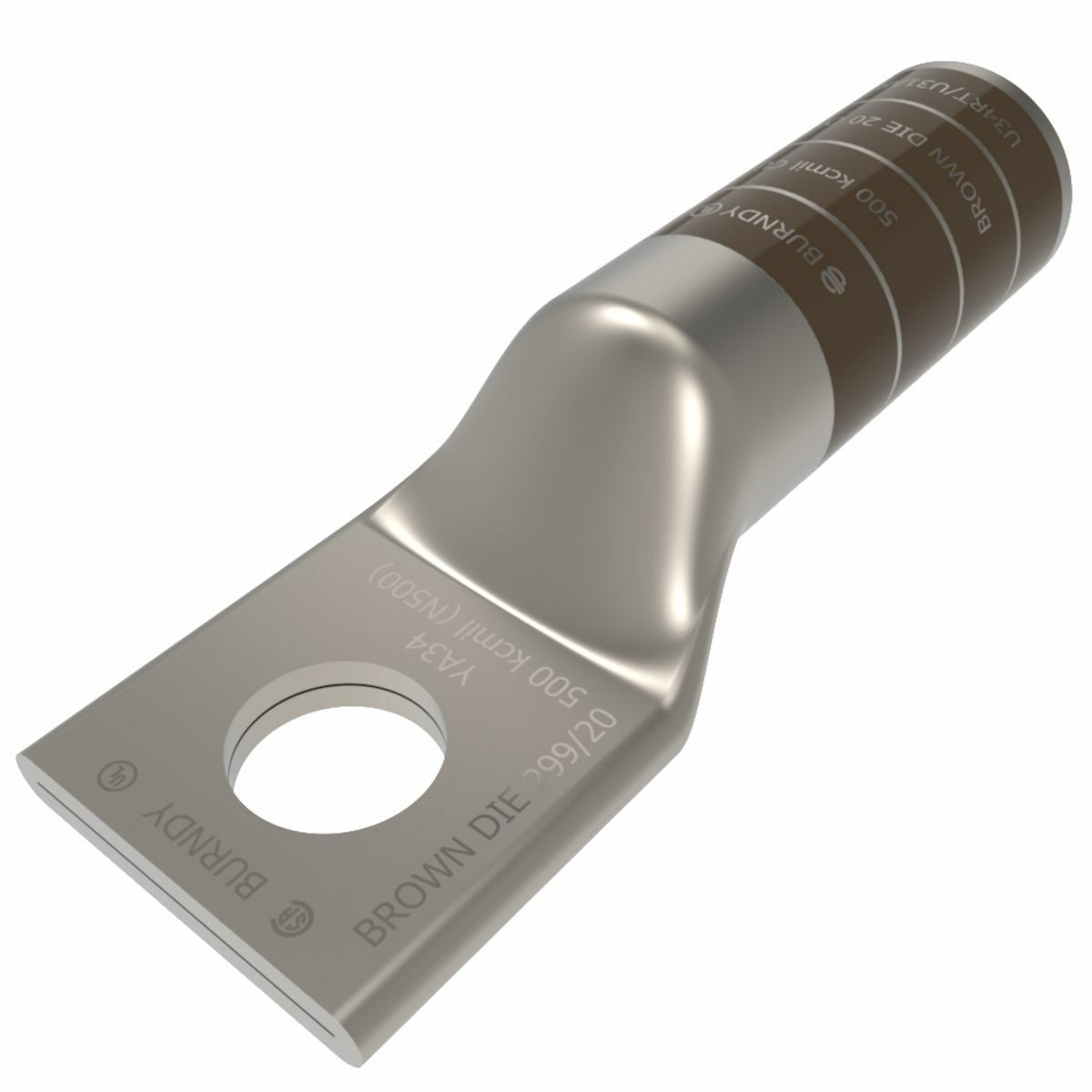

The BURNDY YA34 is a compression cable lug suitable for wire termination. It supports voltage ratings from six hundred volts to thirty-five kilovolts. This lug features a long barrel design for enhanced connection reliability.

• Suitable for 500 kcmil stranded copper conductors.
• Rated for temperatures up to ninety degrees Celsius.
• Utilizes electro-tin plated copper for durability.

Product Highlights

Ideal for connecting large gauge conductors in various electrical applications requiring reliable and safe terminations.

Product Information

Standard Information

• Catalog Number: YA34
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Voltage Rating: 35 kV
• Material: Copper
• Color Code: Brown
• Die Index: 20 or 299
• Pad Size: 1.55 inches width x 0.23 inches thickness
• Stud Size: 5/8 inches
• Wire Strip Length: 2-5/16 inches
• Application: Wire Termination
