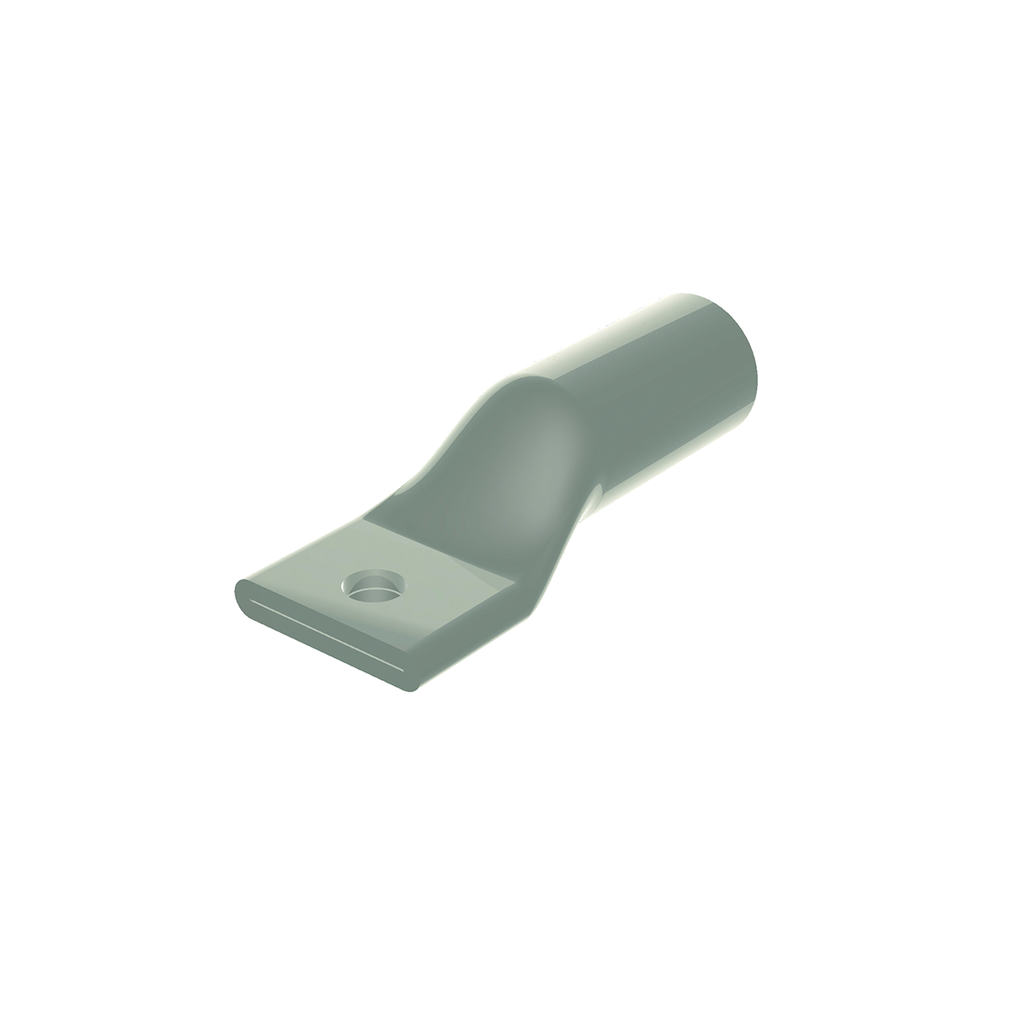

Burndy YA32A6 Aluminum Compression Terminal 600 V - 35 kV (400 kcmil, 1-Hole, 1/2 in. Stud)

Brand: BURNDY
SKU: YA32A6
Availability: In Stock

Ships same day if ordered by 12 pm
$125.27
$125.27
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Burndy YA32A6 is an uninsulated aluminum compression terminal (AL9CU) designed for 400 kcmil conductors and rated 600 V to 35 kV. The closed-barrel lug accepts a 1/2 in. stud, features an internal chamfer for smooth wire insertion, and is electro-tin plated to reduce galvanic corrosion. The connector is factory prefilled with PENETROX A13 and is UL/CSA listed with a 90�C temperature rating.

  • Voltage rating 600 V to 35 kV; UL 486A-486B listed and CSA approved, temperature rating 90�C
  • Accepts 400 kcmil conductors; closed barrel, 1-hole design for 1/2 in. stud mounting
  • Electro-tin plated aluminum construction, factory prefilled with PENETROX A13; includes inspection window

Product Highlights

Dual-rated AL/CU compression lug for 400 kcmil wire, 1/2 in. stud, electro-tin plated, prefilled with PENETROX A13, UL/CSA listed to 90�C

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: YA32A6
  • Country of Origin: United States
Technical Specifications
MPN
YA32A6
Brand
Burndy
Product Type
Uninsulated aluminum compression terminal (compression lug)
Trade Name
HYLUG
Material
Wrought aluminum (AL9CU)
Finish
Electro-tin plated
Plating Type
Tin (electro-plated)
Conductor Size
400 kcmil
Conductor Compatibility
Aluminum and copper (AL/CU, dual rated)
Voltage Rating
600 V to 35 kV
Maximum Voltage
35000 V
Stud Size
1/2 in.
Hole Size
14 mm (approx. 0.55 in)
Number of Holes
1
Barrel Type
Closed, standard straight
Barrel Length
2.26 in
Overall Length
4.92 in (125 mm)
Pad Size
1.62 in W x 0.43 in Thk
Die Index
472
Temperature Rating
90�C (194�F)
Prefilled With
PENETROX A13 oxide inhibitor
Features
Internal chamfer, inspection window, color coded end cap
Standards/Certifications
UL 486A-486B; UL listed; CSA approved
RoHS Compliance
Yes
Country of Origin
USA
