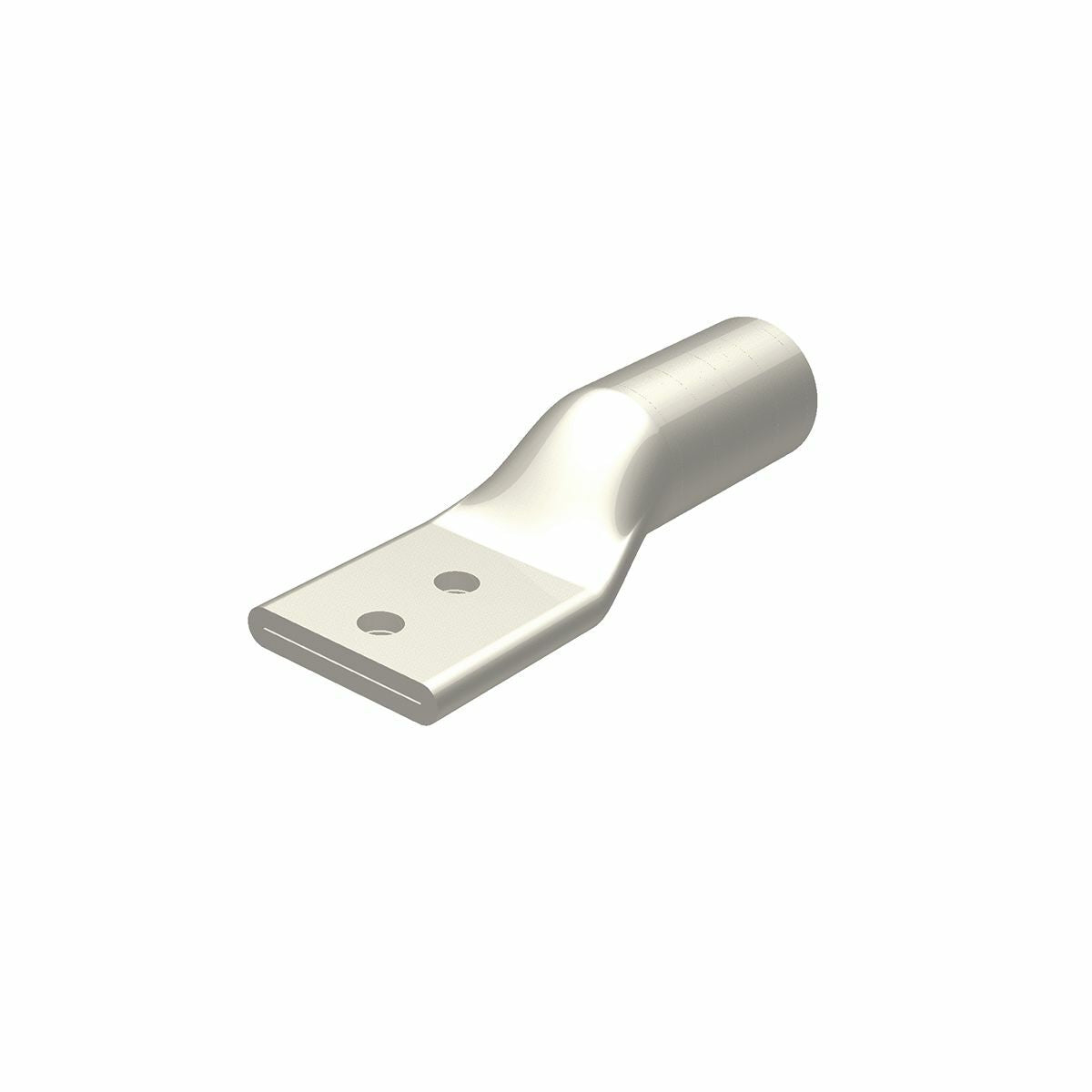

BURNDY YA32A3 400 kcmil AL Terminal One Hole 1/2 Stud Size AL9CU Internal Chamfer Tin Plated Prefilled PENETROX End Cap UL/CSA 90C Up to 35kV Green Color Code 472 Die Index

Product Description

The BURNDY YA32A3 is a reliable aluminum terminal designed for wire termination. This product supports a conductor size of 400 kcmil and is rated for use in voltages up to thirty-five kilovolts. The design includes an internal chamfer and a tin-plated finish, ensuring durability and conductivity.

• Voltage rating of thirty-five kilovolts.
• Features a straight tongue angle.
• Includes a pre-filled PENETROX end cap for enhanced conductivity.

Product Highlights

The BURNDY YA32A3 is suitable for various applications, primarily used in electrical installations where reliable wire connections are crucial.

Product Information

Standard Information

• Catalog Number: YA32A3
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Voltage Rating: 35 kV
• Pad Size: 1.62 inches wide x 0.43 inches thick
• Barrel Length: 2.26 inches
• Stud Size: 1/2 inches
• Cross Reference Products: ALND-400-12-134, 60269
• Standards: UL 486A-486B
• Country of Origin: United States
