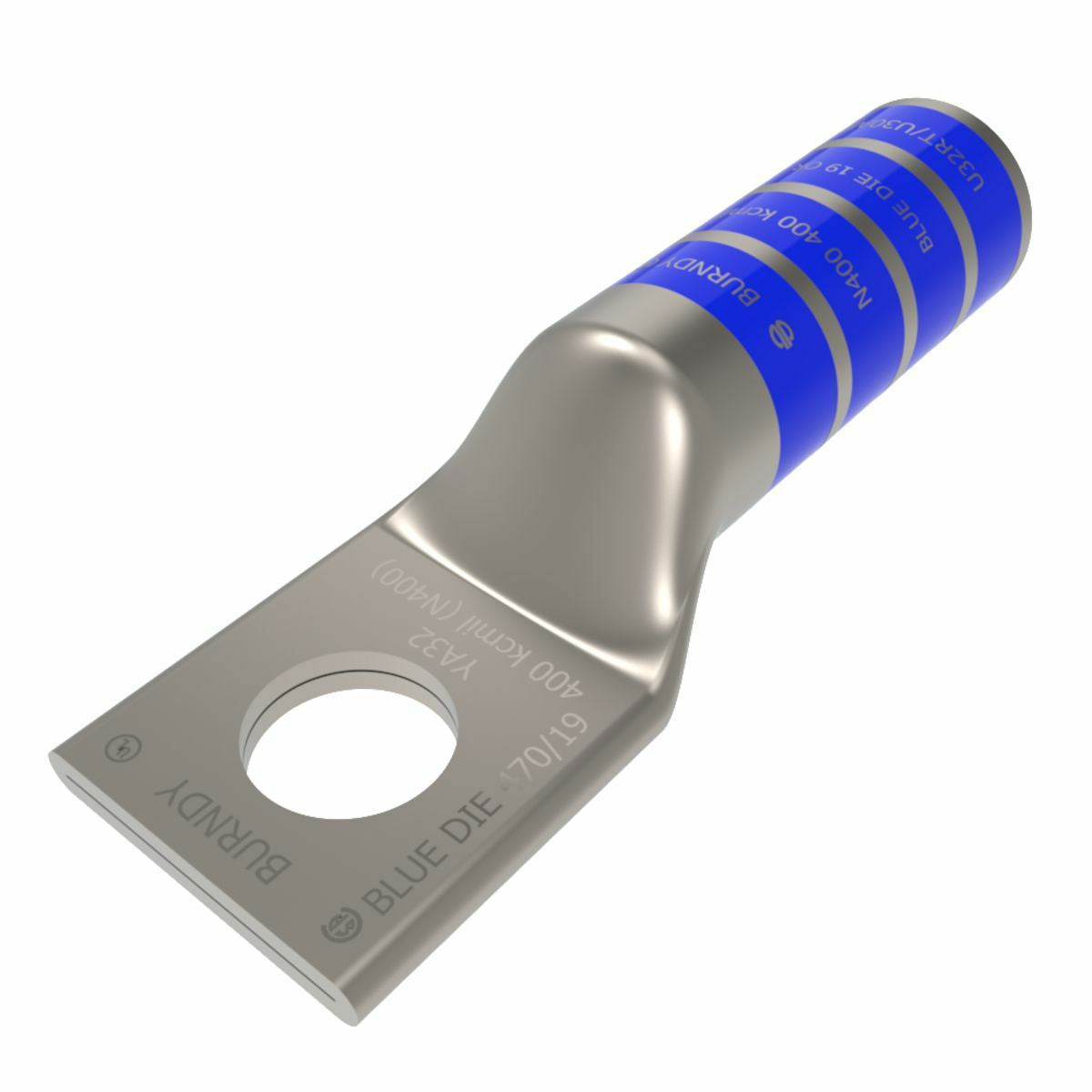

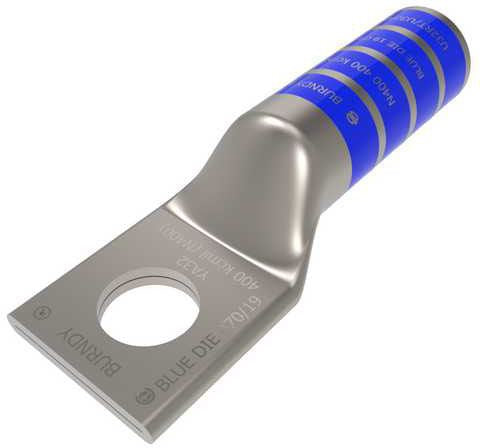

BURNDY YA32 400 kcmil CU, One Hole, 5/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, BLUE Color Code, 19 Die Index

Product Description

The BURNDY YA32 is an electrical connection component designed for use in various wiring applications. This cable lug accommodates conductors with a size of four hundred kcmil and features a one-hole and five eighths inch stud design. The long barrel provides a reliable connection with an internal chamfer for improved performance.

• UL listed for safety with a temperature rating of ninety degrees Celsius.
• Capable of handling voltage ratings up to thirty-five kilovolts.
• Constructed from copper and electro-tin plated for corrosion resistance.

Product Highlights

Ensure secure wire terminations in high voltage applications with this robust connector, ideal for commercial use.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YA32
• Material: Copper
• Country of Origin: United States
• Application: Wire Termination
• Temperature Rating: 90 degrees Celsius
• Wire Strip Length: 2-3/16 inches
• Voltage Rating: 35 kV
• Die Index: 19 or 470
• Standard Compliance: UL 486A-486B
