Product Description

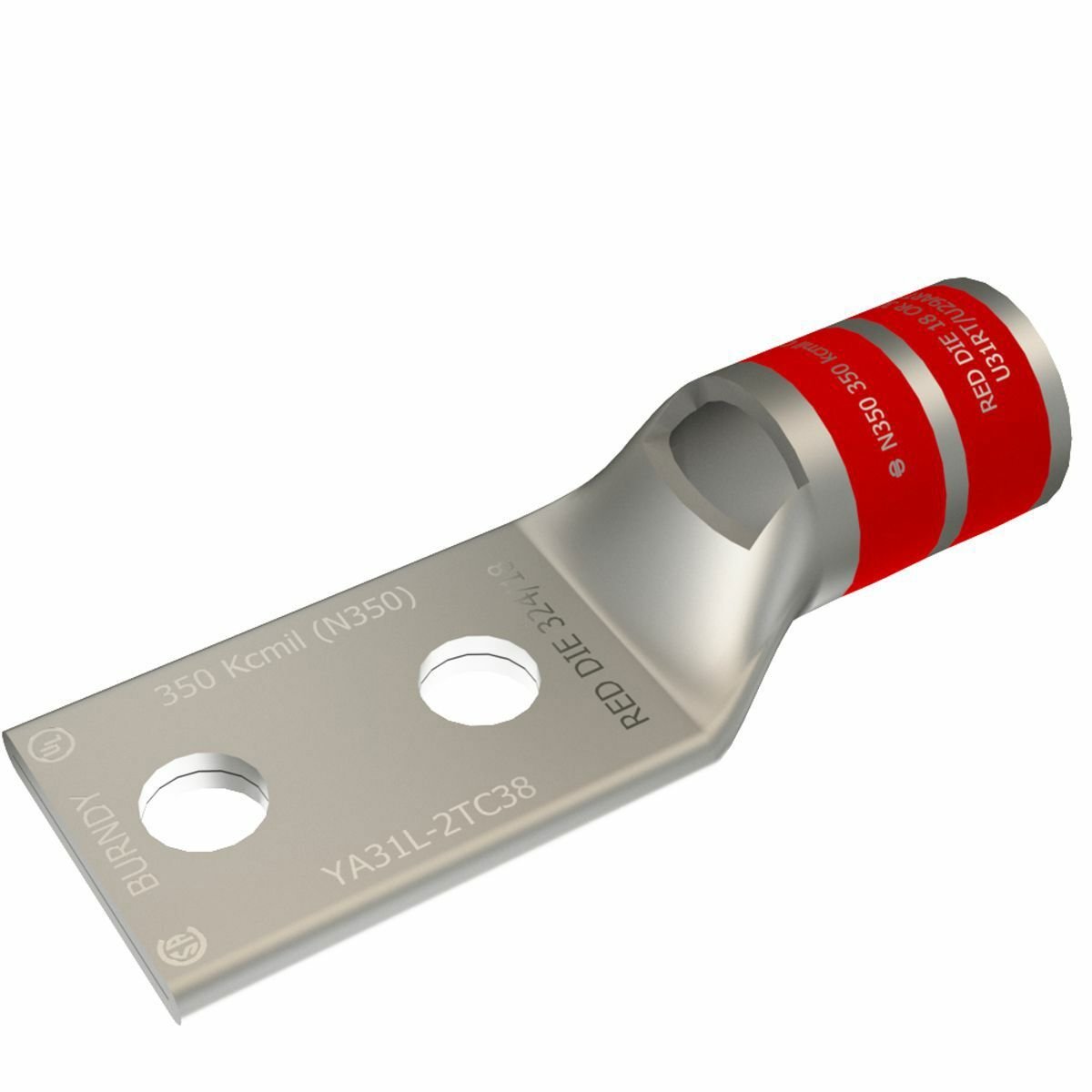

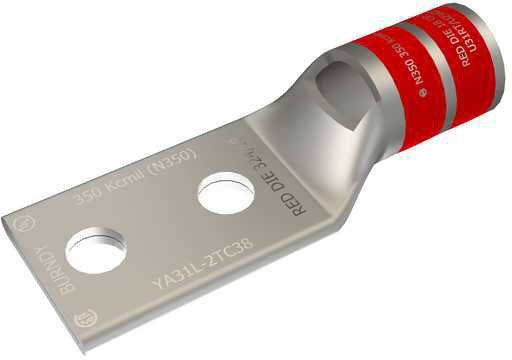

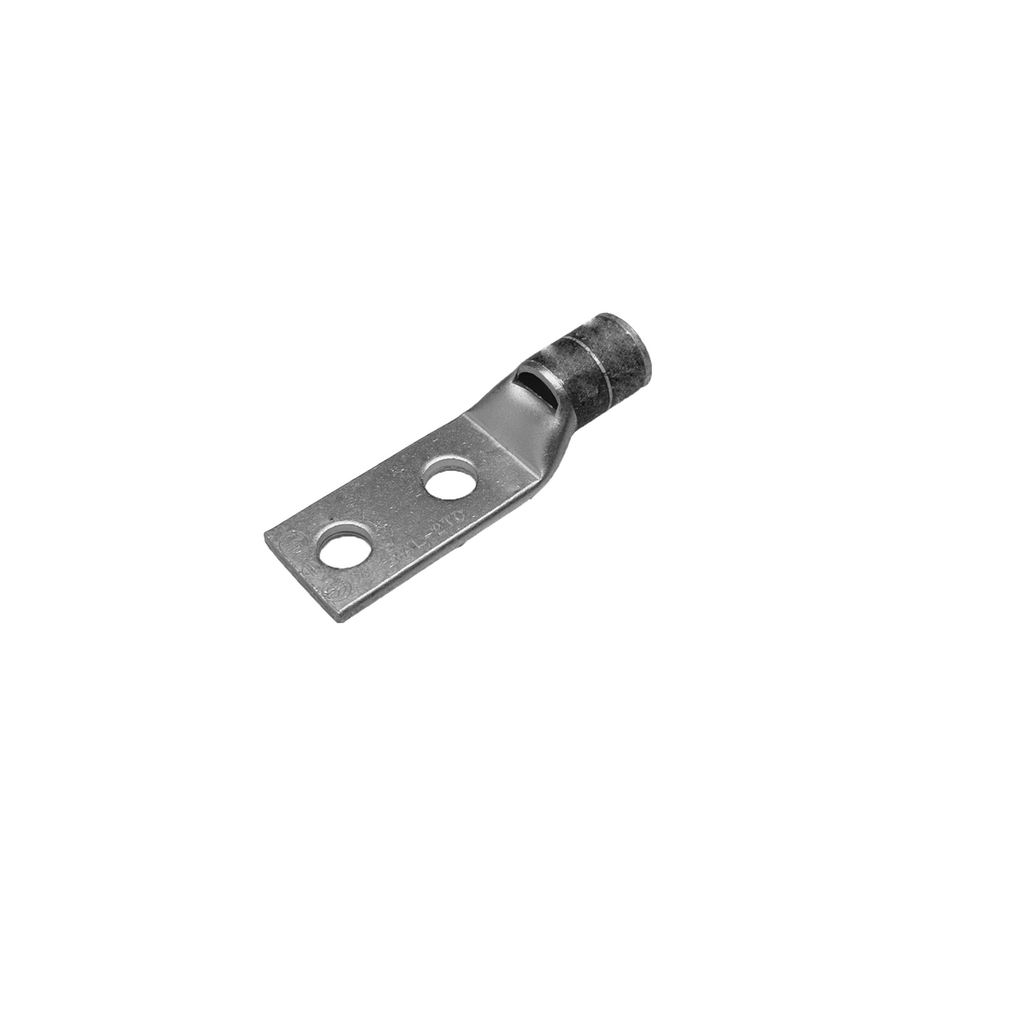

The BURNDY YA31L2TC38 HYDENT compression lug is a copper terminal with two holes and an inspection window, designed for terminating 350 kcmil conductors. It features a 3/8" stud and is electro-tin plated. This lug is suitable for use with code conductors and is UL listed for up to 35kV applications. The standard barrel includes an internal chamfer for easy wire insertion.
- UL Listed 90 DEG C, 600 V - 35 KV
- Electro-Tin Plated Finish
- Suitable for Mechanical and Hydraulic Tools
Product Highlights
This copper compression lug ensures a secure and reliable connection for a range of electrical applications, with a standard barrel design and inspection window.
Product Information
Standard Information
-
Brand: BURNDY
-
Manufacturer Part Number: YA31L2TC38
-
Country of Origin: USA
Technical Specifications
-
Type: Standard Barrel, Tin Plated
-
Brand: Burndy
-
Width: 1.29 in
-
Finish: Tin Plated
-
Height: 0.88 Inch
-
Length: 3.51 Inch
-
Plated?: Yes
-
Voltage: 35000 Volt
-
Material: Electro Plated Tin Copper
-
Stud Size: 0.375 in
-
Sub Brand: HYDENT
-
Cable Size: 350 KCMIL, 185 SQ-MM For Class 2 Conductor
-
Max Voltage: 35000 V
-
Applications: For Code Conductor
-
Color Coding: Red
-
Plating Type: Tin - Electro Plated
-
Conductor Size: 350 KCMIL
-
Overall Length: 3.51 in
-
Connection Type: Terminal
-
Number of Holes: 2 Hole
-
Conductor Material: Copper
-
Buy American Compliant: Y
-
Catalog Number: YA31L2TC38
-
Manufacturer: Burndy
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: Wire Termination
-
Standard: UL 486A-486B
-
UPC: 781810503683
-
GTIN: 00781810503683
-
Item Type: Standard Barrel, Tin Plated
-
Voltage Rating: 35 kV
-
ECCN: EAR99
-
UNSPSC: 39121405
-
Die Color: Red
-
Color Family: Red
-
Stud Hole Spacing: 1 in.
-
Lug Wire Size: 350 kcmil
-
Features: Inspection Window, Internal Chamfer
-
Standards: UL/CSA
-
Temperature Rating: 90.C
-
Die Index: 18 or 324
-
Hole Spacing: 1"
-
Barrel Type: Standard
-
Barrel Length: Short
-
Approval: UL 468A/468B, CSA
-
RoHS Compatible: True
-
Includes Inspection Window: True
-
Wire Strip Length: 1-1/8 Inch
-
Cable Entry Type: Beveled Entry, Chamfered
-
Part Number: YA31L2TC38
-
Product Series: YA-L-2TC
-
Family Series: Burndy Terminals, YA-L-2TC Series
-
Description: CU HYDENT 350 MCM(2) 3/8
-
Terminal Type: Barrel - Standard, Two Hole
-
Wire Size Range: 350 kcmil
-
Insulated: Non-Insulated
-
Plating Material: Electro-Tin
-
Stud Spacing: 1
-
Tongue Width: 1.29 "
-
Maximum Temperature: 194 °F
-
Approvals: CSA, UL
-
Conductor Type: CODE
-
Barrel Size: 1.06 in L
-
Series: YA-L-2TC
-
Tongue Size: 1.2 in W x 0.16 in THK
-
Die Code: 18
-
Tongue Type: Standard/Straight
-
Specifications: 1-3/16 in L Wire Strip, 1 in Hole Spacing
-
Dimension - B Length fraction: 1-1/16 in
-
Dimension - B Length inch: 1.06 in
-
Dimension - Bolt Hole Size inch: 0.39 in
-
Dimension - Bolt Size fraction: 3/8
-
Dimension - Bolt Size inch: 0.38
-
Dimension - Hole Size fraction: 3/8
-
Dimension - Hole Size inch: 0.41
-
Dimension - Hole Size mm: 10.4 mm
-
Dimension - L Length Overall mm: 89 mm
-
Dimension - Length Overall inch: 3.51 in
-
Dimension - N inch: 0.41 in
-
Dimension - Outside Diameter inch: 0.88 in
-
Dimension - Pad Width inch: 1.29 in
-
Dimension - Strip Length inch: 1-1/8
-
Dimension - Stud Size fraction: 3/8
-
Dimension - Stud Size inch: 3/8
-
Dimension - Z (inch): 0.42 in
-
Conductor - Copper DLO Size Range: N/A
-
Conductor - Copper Str Navy Size: 350 (91) Navy
-
Conductor - Copper Str Size: 350 KCMIL
-
Conductor - Copper Str Size Range: 350 kcmil
-
Conductor - Material: COPPER
-
Certification - CSA Approved: Yes
-
Certification - cULus: No
-
Certification - ETL: No
-
Certification - UL Recognized: No
-
Industry Standard(s): UL 486A-486B
-
Standards - Industry Standards Met: UL 486A-486B
-
Standards - RoHS Compliance Status: CM
-
UL Listed: Yes
