BURNDY YA30A3 300 KCMIL Two Hole Terminal 1/2 Stud Size 470 Die Index

Product Description

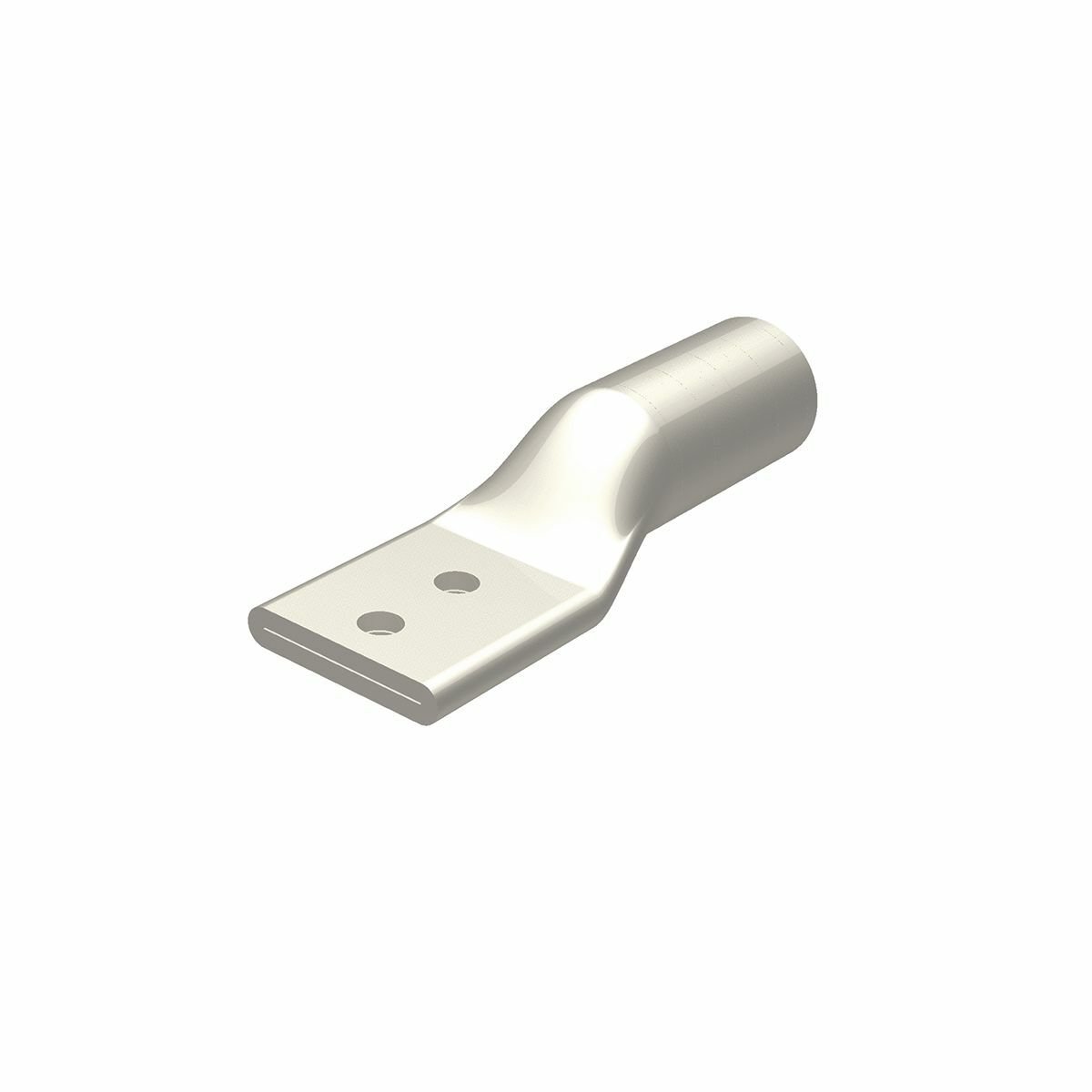

The BURNDY YA30A3 is a two-hole terminal designed for connecting aluminum and copper conductors. This terminal is suitable for use with conductors rated at 600 volts to 35 kilovolts. It features a standard straight barrel with a length of one and fifty-three hundredths inches and is made from electro-tin plated wrought aluminum. Its pad size measures one and thirty-eight hundredths inches in width by thirty-six hundredths inches in thickness, with a pad hole spacing of one and seventy-five hundredths inches.

• Conductor Size: 300 KCMIL
• Material: Aluminum with tin plating
• Temperature Rating: 90 degrees Celsius

Product Highlights

This terminal is UL Listed and is designed for efficient wire termination in both industrial and commercial applications. Its robust construction ensures reliability in high-voltage environments.

Product Information

Standard Information

• Catalog Number: YA30A3
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Application: Wire Termination
• Voltage Rating: 35 kV
• Special Features: UL Listed, 600 V - 35 kV
• Country of Origin: United States
• Made in USA: Yes
• Item Type: YA-A
