Burndy YA2CTC14 2 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV

Brand: BURNDY
SKU: YA2CTC14
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$21.99
$21.99
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

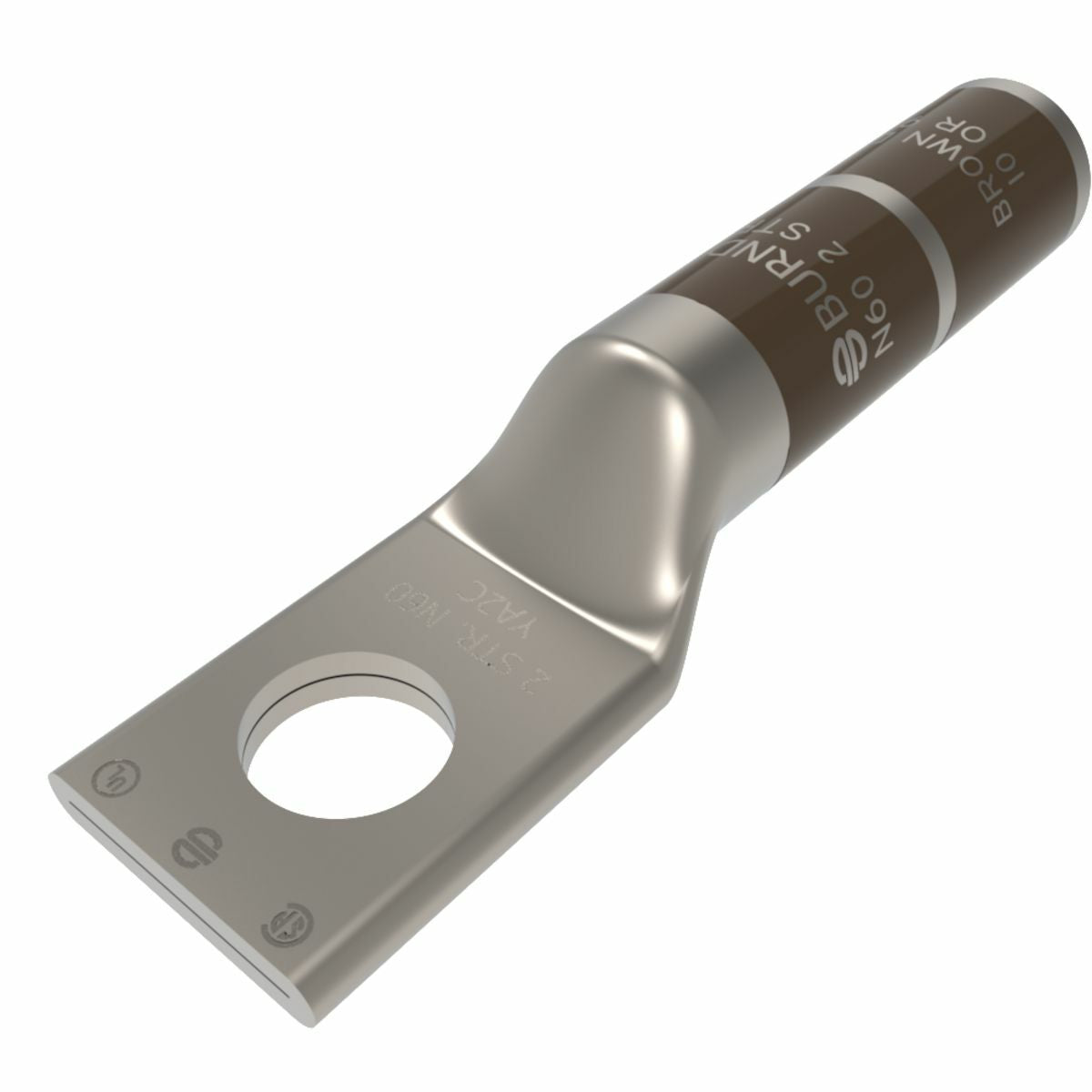

The Burndy YA2CTC14 is a compression cable lug designed for effective wire termination. This product is rated for voltages up to thirty-five kilovolts. It is made of copper and tin plated for durability. The lug features a long barrel with a one-hole design. The internal chamfer facilitates easier wire insertion and a solid connection.

  • Compatible with two AWG stranded conductors
  • Temperature rating of ninety degrees Celsius
  • UL Listed for use in various applications

Product Highlights

This cable lug is suitable for commercial and industrial wiring needs. It meets UL and CSA standards, ensuring quality and reliability.

Product Information

Standard Information

  • Catalog Number: YA2CTC14
  • Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

  • Material: Copper
  • Voltage Rating: 35 kV
  • Application: Wire Termination
  • Special Features: UL Listed, 90C, Electro-Tin Plated
  • Country of Origin: United States
  • Die Index: 10
  • Wire Strip Length: 1-5/16 inches
  • Overall Length: 2.1 inches
