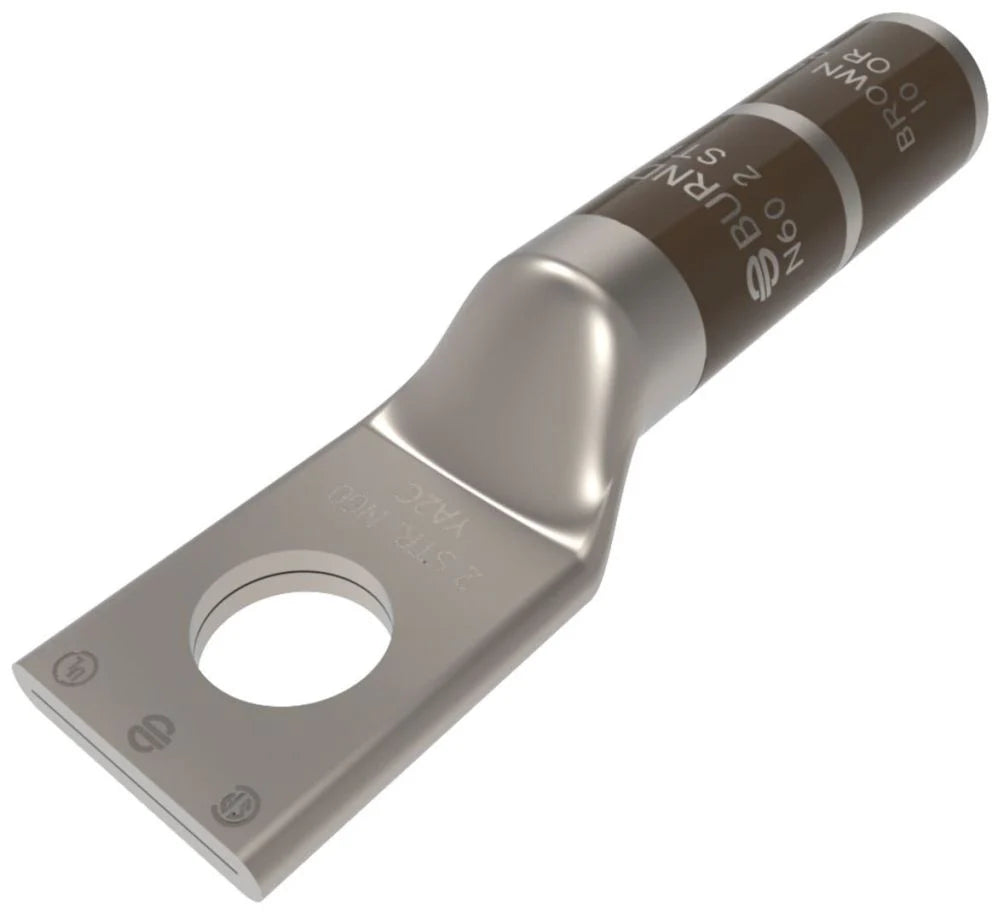

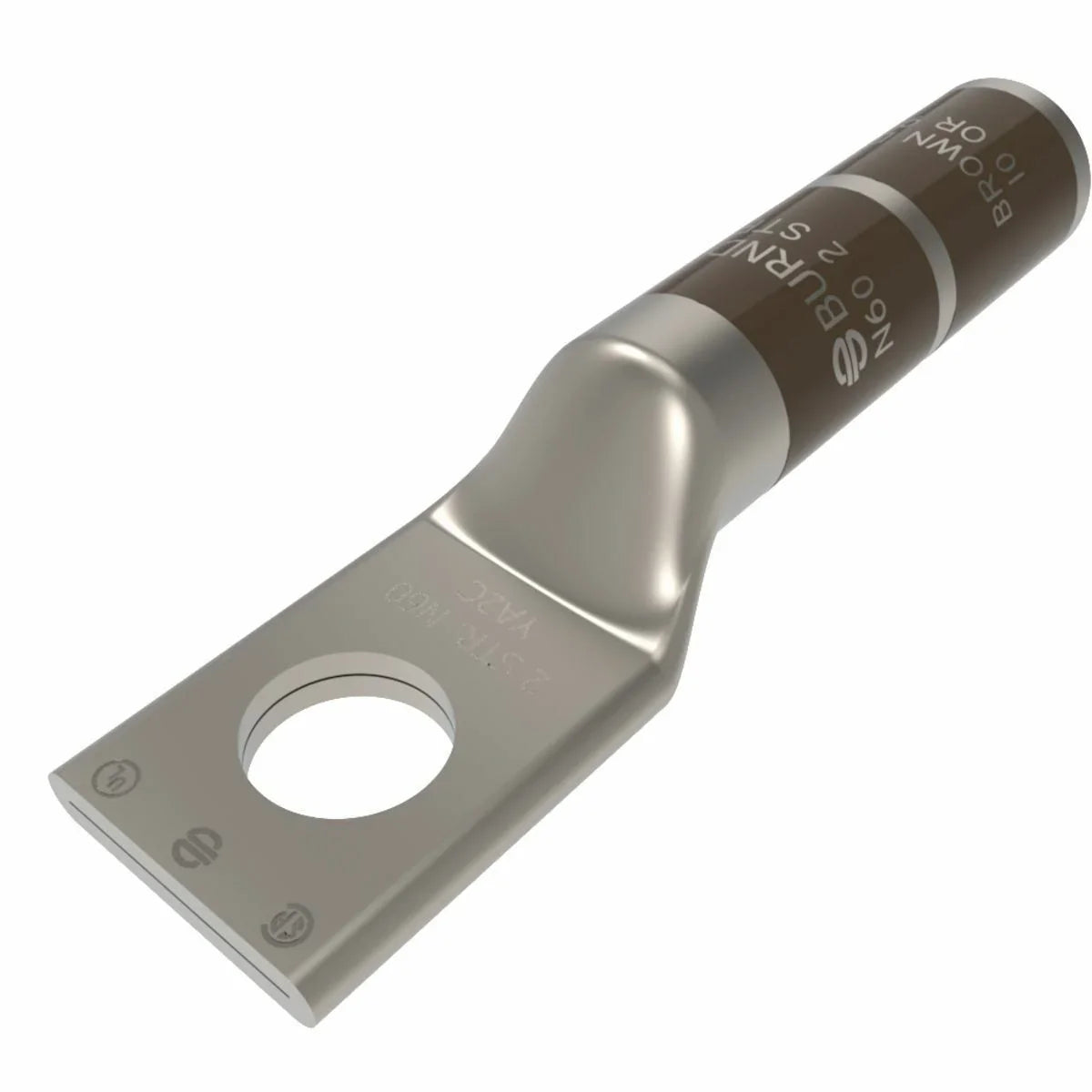

Burndy YA2CN 2 AWG CU One Hole 1/2 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

The Burndy YA2CN is a compression cable lug designed for efficient wire termination. This lug features a copper construction and is suitable for 2 AWG stranded conductors. It supports a voltage rating of thirty-five kilovolts. The lug is UL listed and provides a variety of installation angles to meet specific project needs.

• Constructed of copper for excellent conductivity.
• Rated for use in harsh environments with a temperature rating of ninety degrees Celsius.
• Features a long barrel design with an internal chamfer for easy wire insertion.

Product Highlights

Durable and reliable, the Burndy YA2CN lug is ideal for powering electrical systems safely and effectively. Its electro-tin plated finish ensures long-lasting performance.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA2CN
• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Application: Wire Termination
• Special Features: UL Listed, 600 V to 35 kV, Wire Strip Length: 1-5/16 inches
• Country of Origin: United States
• Cross Reference Products: 3M 31125, ABBInstall 256-30695-869, Burndy YA2C-2LN
