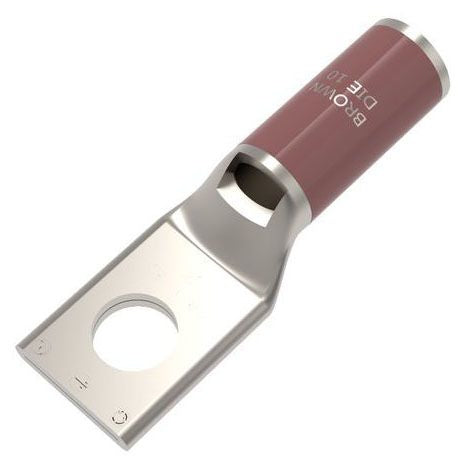

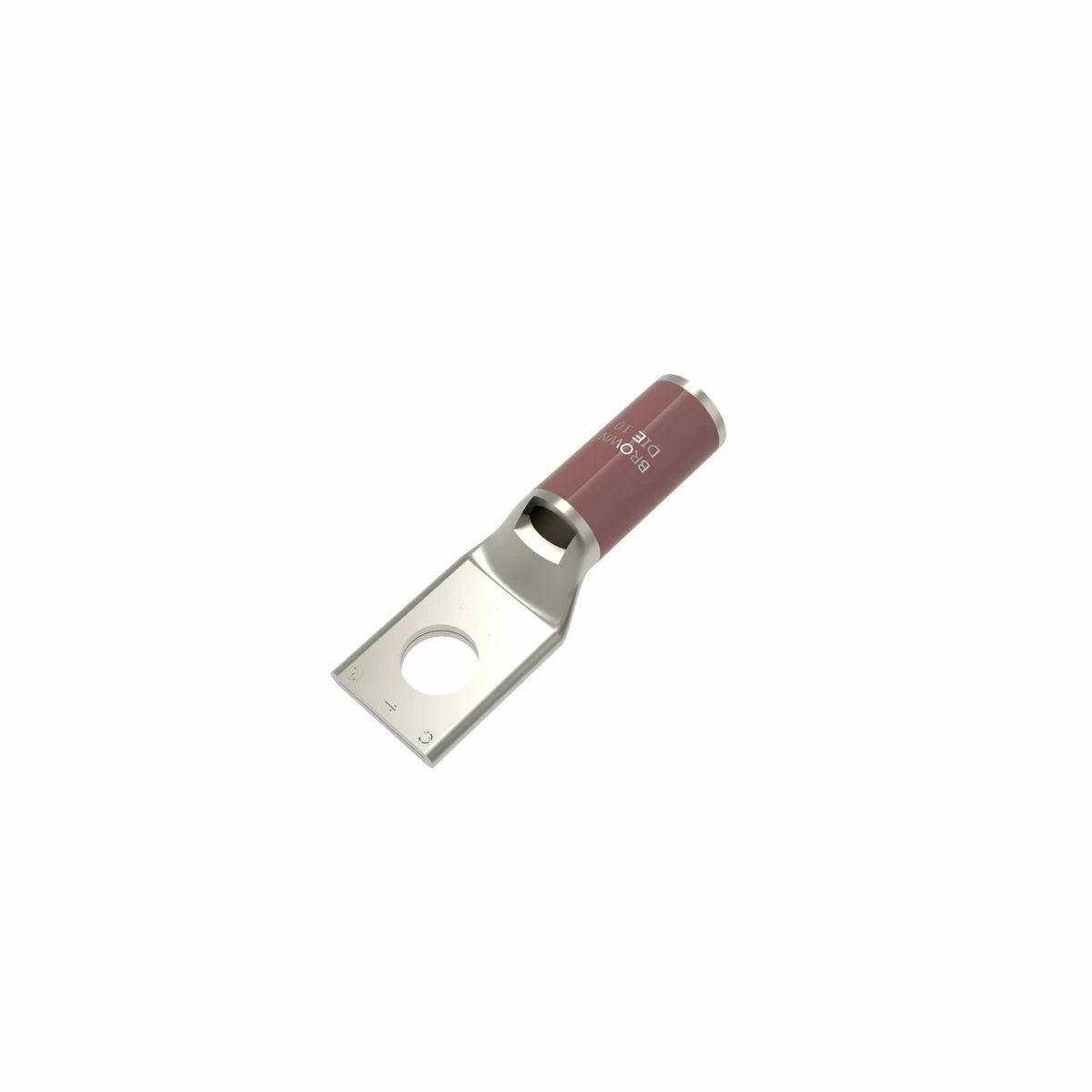

BURNDY YA2CLBOX 2 AWG CU One Hole 5/16 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Product Description

The Burndy YA2CLBOX is a 2 AWG copper compression terminal designed for reliable wire termination in high voltage applications. It features a one hole design suitable for a 5/16 inch stud size. The terminal is UL listed and CSA approved, making it compliant with industry standards.

• Conductors are rated for voltage up to thirty-five kilovolts.
• Constructed from copper and tin plated for corrosion resistance.
• Includes an inspection window for easy verification of wire placement.

Product Highlights

The YA2CLBOX terminal is ideal for applications requiring high conductivity and mechanical strength. It supports commercial stranded copper conductors and is perfect for outdoor use where durability is critical.

Product Information

Standard Information

• Catalog Number: YA2CLBOX
• Brand: Burndy

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Wire Strip Length: 15/16 inches
• Pad Size: 0.61 inches (width) x 0.11 inches (thickness)
• Number of Pad Holes: 1
• Die Index: 10
• Approval: UL, CSA
• Country of Origin: United States
