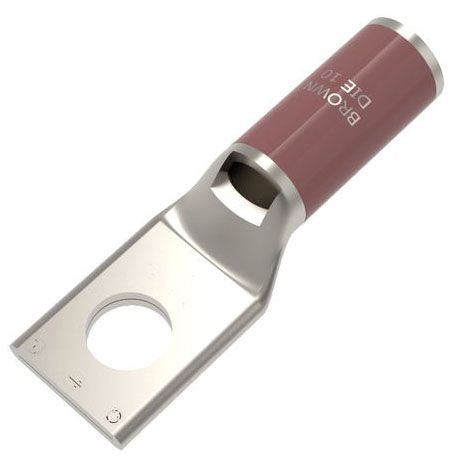

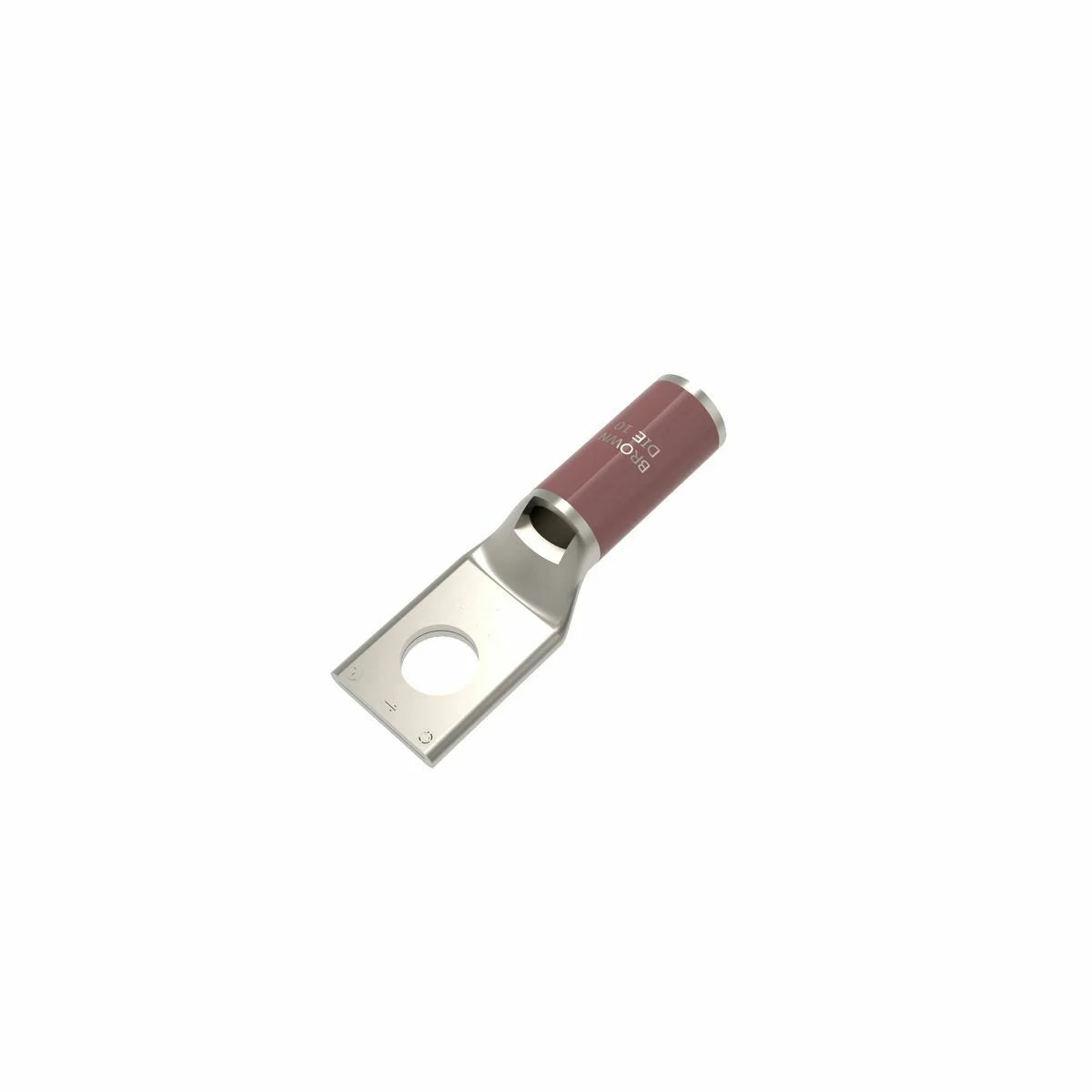

BURNDY YA2CL4BOX 2 AWG CU ONE HOLE 3/8 STUD SIZE STANDARD BARREL INSPECTION WINDOW INTERNAL CHAMFER TIN PLATED UL/CSA 90 UP TO 35KV

Product Description

The BURNDY YA2CL4BOX is a compression terminal designed for high voltage wire termination. This product can handle up to thirty-five kilovolts and is ideal for connecting two AWG stranded copper wires with a one-hole design. It features a straight barrel, inspection window, and an internal chamfer for easy wire insertion.

• Rated for voltages up to 35kV
• Constructed from high-quality copper with electro-tin plating
• UL and CSA approval for safe usage

Product Highlights

This terminal offers reliable performance for professionals in the field. It is suitable for various applications, including industrial settings, where secure connections are vital.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YA2CL4BOX
• Conductor Material: Copper
• Conductor Size: 2 AWG
• Barrel Type: Standard, Straight, Non-Insulated
• Stud Size: 3/8 inch
• Color Code: Brown
• Temperature Rating: 90 Deg C
• Wire Strip Length: 15/16 inch
• Approval: UL, CSA
• Voltage Rating: 35 kV
• Die Index: 10
