Burndy YA2C2TC14E2 2 AWG CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Brown Color Code, 10 Die Index

Product Description

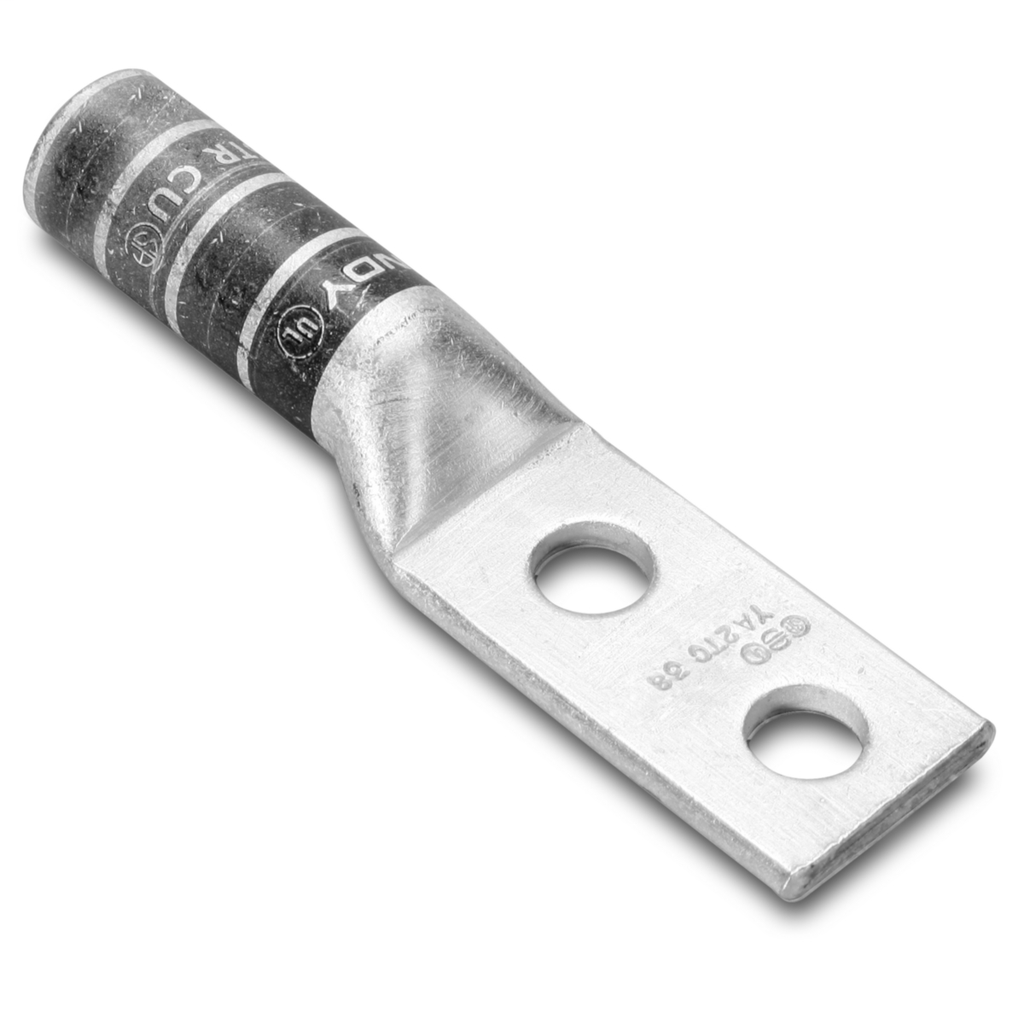

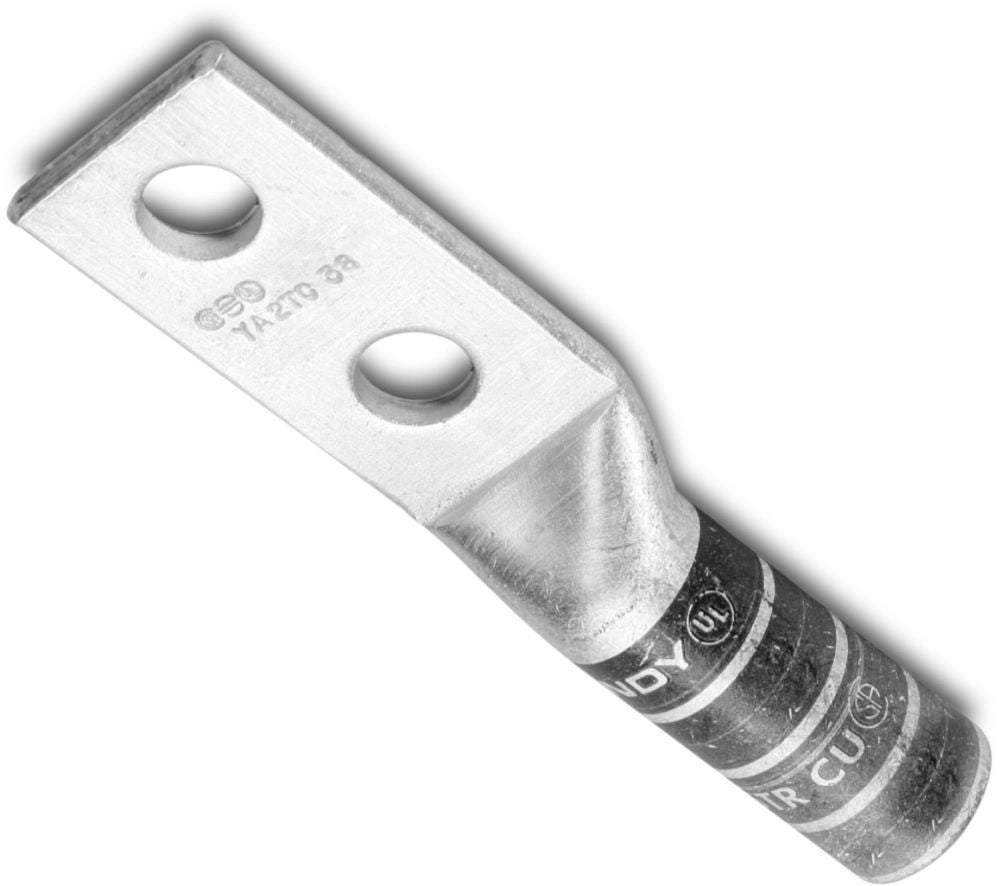

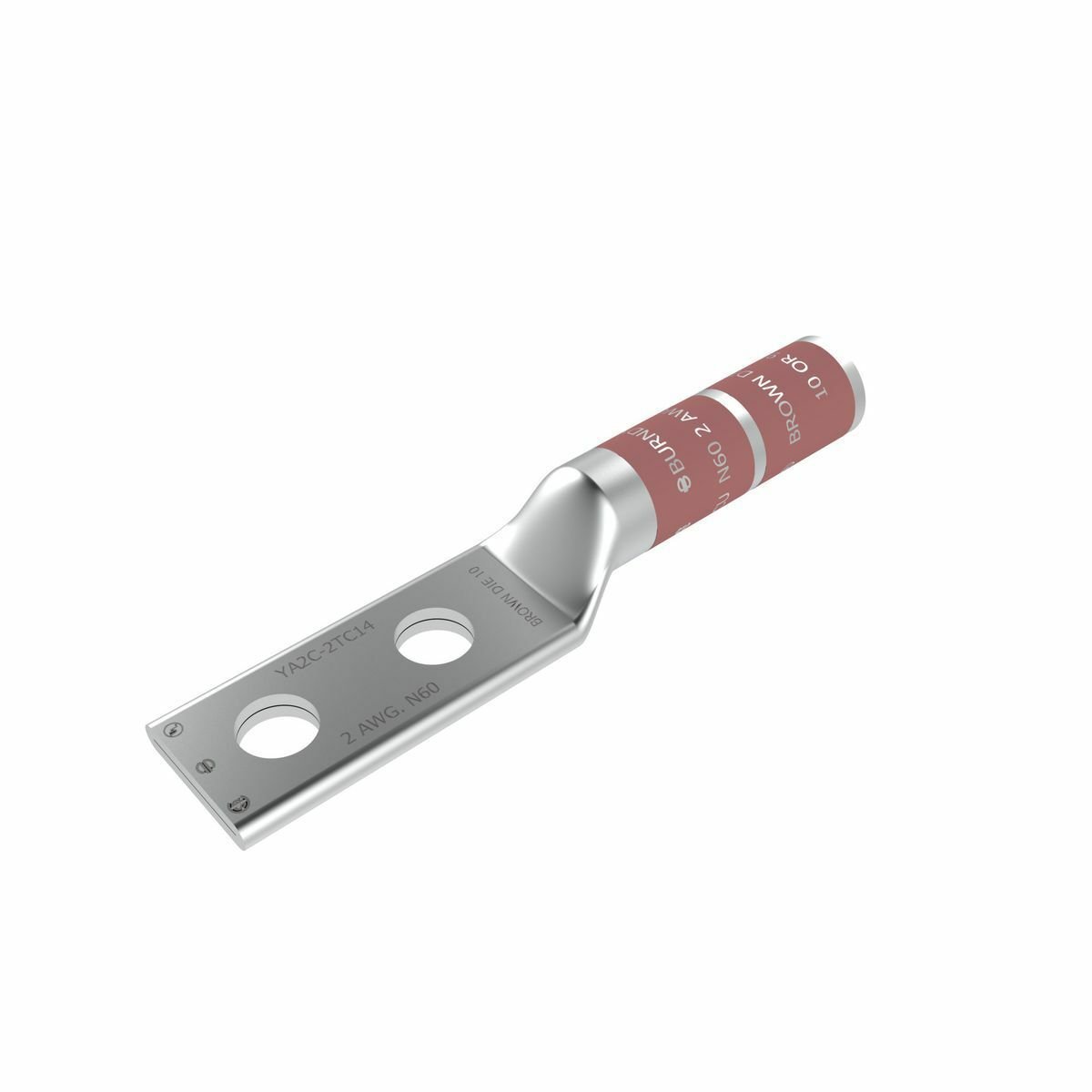

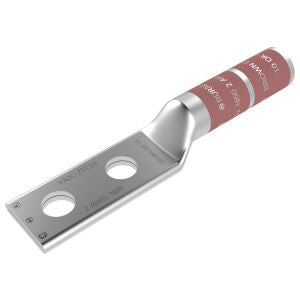

The Burndy YA2C2TC14E2 is a compression lug designed for 2 AWG copper wire with two holes. This component allows for reliable electrical connections and is rated for use in high-voltage applications up to thirty-five thousand volts.

• Made of copper with a tin plating for corrosion resistance.
• UL and CSA certifications ensure safety and compliance.
• Two-hole design compatible with 1/4 inch studs, offering flexibility in installations.

Product Highlights

This compression lug features a long barrel for enhanced connection integrity and a chamfered entry for easy wire insertion.

Product Information

Standard Information

• Catalog Number: YA2C2TC14E2
• Manufacturer: Burndy

Technical Specifications

• Material: Copper
• Coating: Tin Plated
• Voltage Rating: 35,000 Volts
• Conductor Size: 2 AWG
• Stud Size: 1/4 inch
• Overall Length: 2.98 inches
• Width: 0.60 inches
• Height: 0.42 inches
• Number of Holes: 2
• Temperature Rating: 90 degrees Celsius
