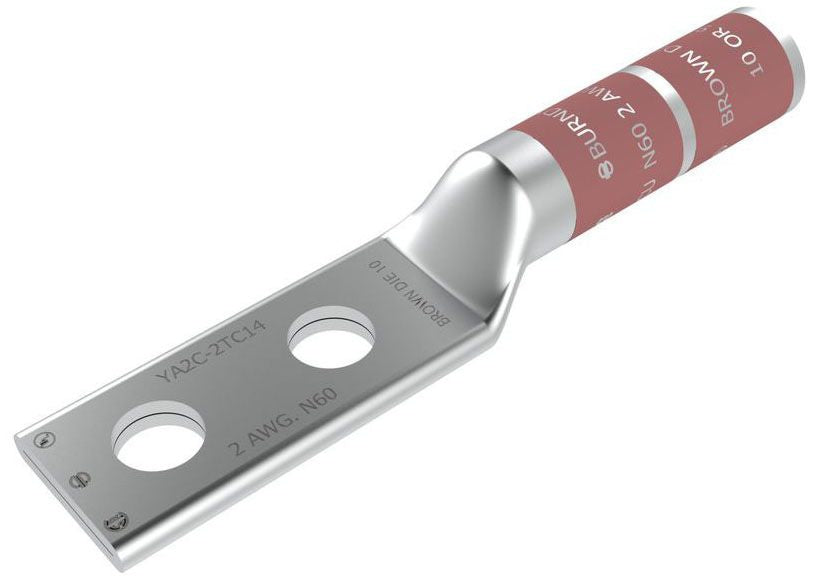

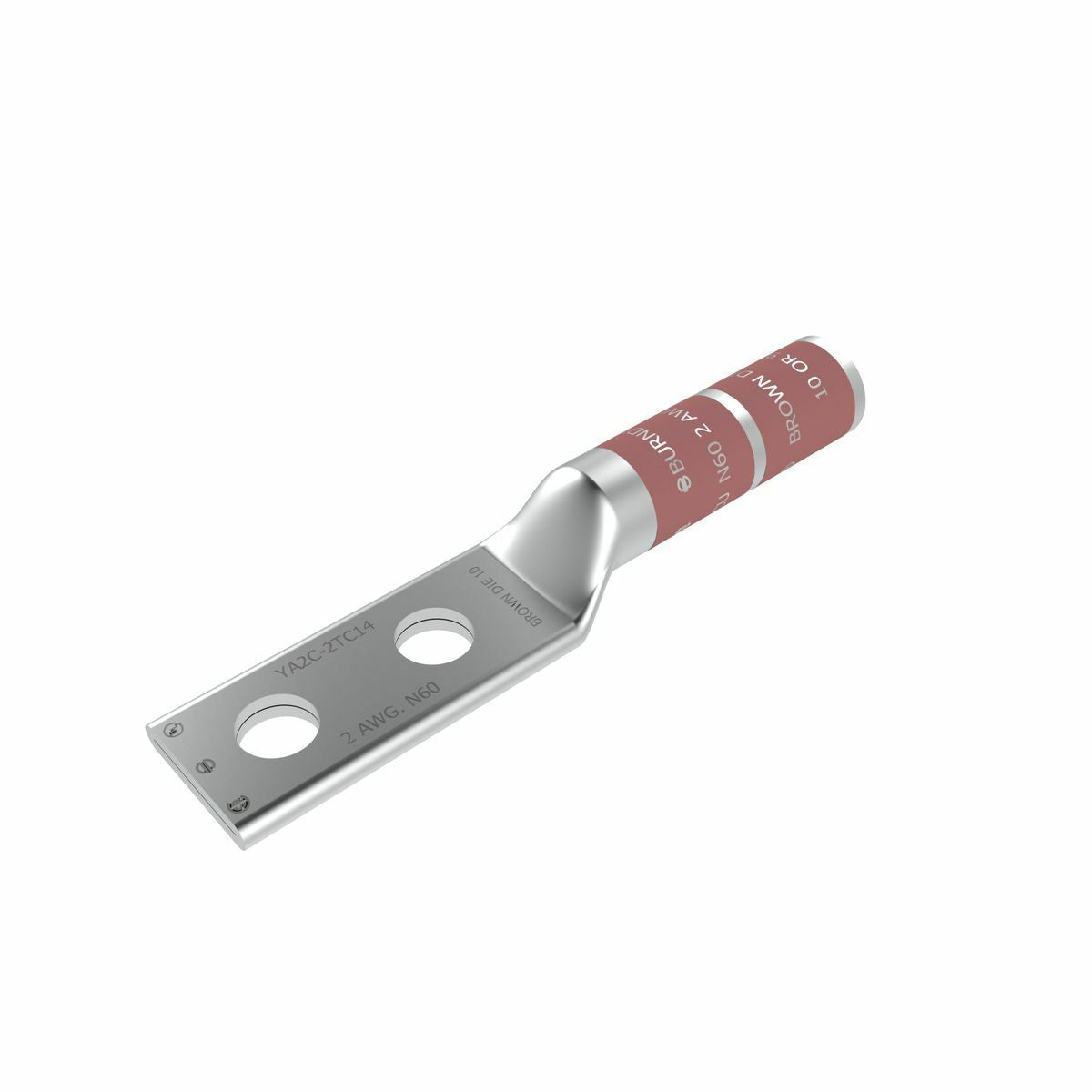

BURNDY YA2C2TC14 2 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Brown Color Code, 10 Die Index.

Product Description

The BURNDY YA2C2TC14 is a compression cable lug designed for secure and reliable wire termination in electrical applications. This product accommodates two holes with a quarter-inch stud size and five-eighths inch hole spacing. It is constructed from copper and has a long barrel internal chamfer to facilitate ease of use.

• Conductor size: Two AWG, suitable for solid and stranded wire.
• Voltage rating: 600 volts to 35 kilovolts.
• UL listed for safety and compliance with standards.

Product Highlights

The YA2C2TC14 provides excellent corrosion resistance through an electro-tin plating finish. It supports a variety of mechanical and hydraulic tools for crimping. This lug is a preferred choice for high voltage wire applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA2C2TC14
• Voltage Rating: 35
• Material: Copper
• Country of Origin: United States
• Temperature Rating: 90 degrees Celsius
• Wire Strip Length: 1-5/16 inches
• Pad Size: 0.6 inches width x 0.11 inches thickness
• Pad Hole Spacing: 5/8 inches
