Burndy YA2C2LN Compression Lug 2 AWG (2) Nema replacement mpn

Product Description

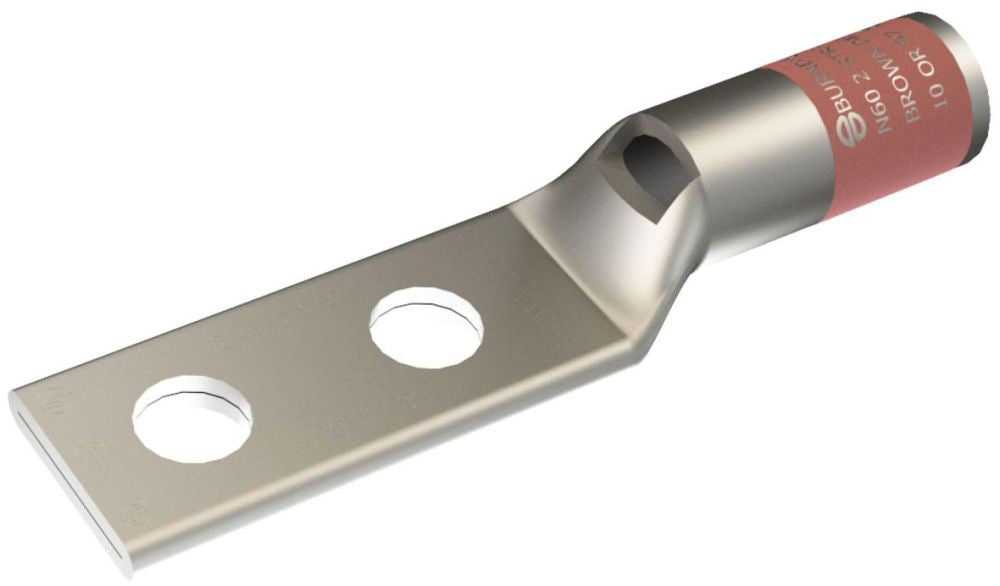

The BURNDY YA2C2LN Two-Hole Standard Barrel Lug is a #2 AWG lug with 1/2" bolt size and 1-3/4" center spacing. It is made from electrolytic copper and plated for corrosion resistance. This compression cable lug has a voltage rating of 600 Volt to 35 Kilovolt and includes an inspection window for quality assurance.

• Constructed from electro tin plated copper
• Designed with a short, standard, straight, chamfered, non-insulated barrel
• UL 486A/B and CSA approved

Product Highlights

The YA2C2LN lug is ideal for wire termination applications, ensuring reliable electrical connections in both Central Office and Wireless communications markets.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA2C2LN
• Country of Origin: USA

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 2 AWG Stranded (Code), 60 (Navy)
• Voltage Rating: 600-35kV Volts
• Barrel Type: Short, Standard, Straight, Chamfered, Non-Insulated
• Barrel Length: 0.88 Inch
• Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
• Number of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Die Index: 10
• Material: Copper
• Material Type: Copper
• Overall Length: 4.27 Inch
• Approval: UL 486A/B, CSA
• RoHS Compliant: RoHS Compliant
• Cable Entry Type: Beveled
• Wire Strip Length: 15/16 Inch
• Temperature Rating: 90 Deg C
• Application: Wire Termination
• Includes Inspection Window: Includes Inspection Window
• Country Of Origin: USA
• Model: YA2C2LN
• Terminal: Ring Terminal
• Wire Size: 2 AWG
• Standards: UL Listed, UL468A-468B, CSA Certified, RoHS Compliant
• Lug Size: 2 AWG
• Barrel Size: Short
• Number of Holes: 2
• Stud Hole Size: 1/2 in.
