Burndy YA2C2L Hylug 2-Hole Standard Barrel Code Conductor With Inspection Window 2 AWG

Product Description

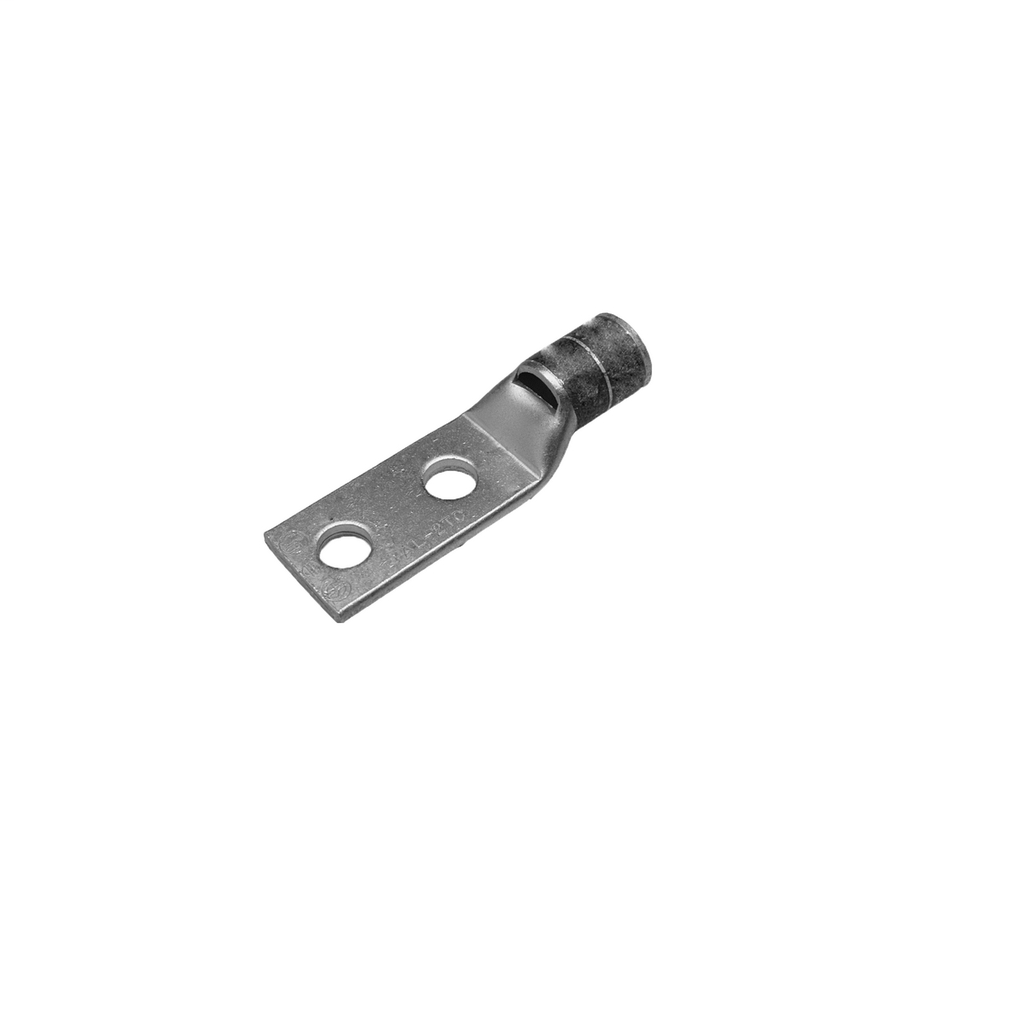

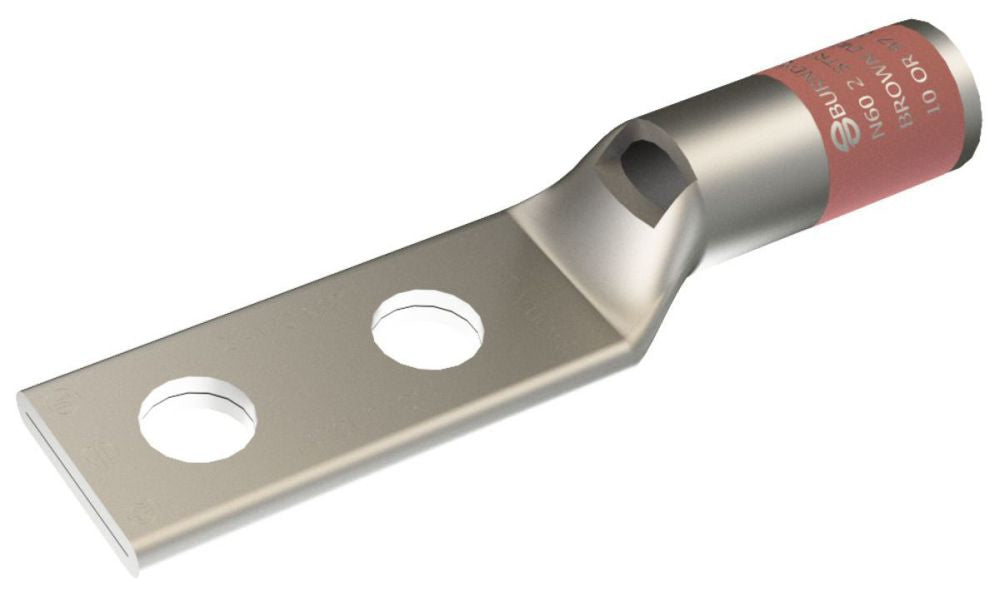

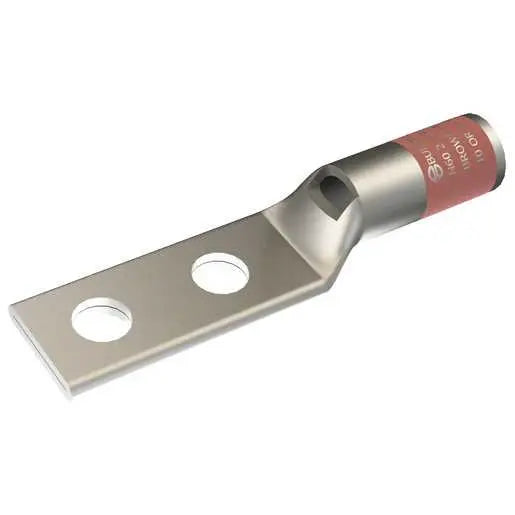

The BURNDY YA2C2L Hylug is a 2-hole standard barrel code conductor with an inspection window. Constructed from copper with a tin-plated finish, this lug accommodates a 2 AWG wire size. It features a standard barrel with an internal chamfer at the wire entry for smooth wire insertion. The 2-hole design prevents rotation.

• 2-Hole Standard Barrel
• Code Conductor
• Inspection Window
• Copper

Product Highlights

This copper compression lug features a tin-plated finish, 2-hole mount, and is suitable for code copper conductors.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA2C2L
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121405
• Die Color: Brown
• Stud Size: 5/16 in.
• Color Family: Brown
• Lug Wire Size: 2 AWG
• Country of Origin: US - United States
• Stud Hole Spacing: 0.75 in.
• Brand: BURNDY
• MPN: YA2C2L
• Hole Spacing: 0.75 in.
• Conductor Size: 2 AWG
• Material: Copper
• Plating: Tin Plated
• Barrel Type: Standard Barrel
• Hole Quantity: 2
• Voltage: Up to 35kV
• Temperature Rating: 90.C
• Die Index: 10
• Features: Inspection Window, Internal Chamfer
• Color Code: Brown
• Conductor Material: Copper
• ConnectionType: Terminal
• Max Voltage: 35000 V
• Plated?: Yes
• Plating Type: Tin - Electro Plated
• Finish: Tin
• Hole Size: 8 mm
• Length: 2.67 Inch
• Overall Length: 2.67 in
• CSA: Yes
• Application: Wire Termination
• Catalog Number: YA2C2L
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Type: Standard
• Trade Name: HYLUG™
• Type: Standard Barrel, Tin Plated
• Bolt Size: 5/16 in
• Dimension - B Length fraction: 7/8 in
• Dimension - B Length inch: 0.88 in
• Dimension - Bolt Hole Size inch: 0.33 in
• Dimension - Bolt Size fraction: 5/16
• Dimension - Bolt Size inch: 0.3125
• Dimension - D inch: 1.45 in
• Dimension - Hole Size fraction: 5/16
• Dimension - Hole Size inch: 0.38 in
• Dimension - Hole Size mm: 10 mm
• Dimension - L Length Overall mm: 68 mm
• Dimension - N inch: 0.34 in
• Dimension - Outside Diameter inch: 0.42 in
• Dimension - Pad Width inch: 0.60 in
• Dimension - Strip Length inch: 15/16
• Dimension - Stud Size fraction: 5/16
• Dimension - Z (inch): 0.36 in
• Outside Diameter: 0.42 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper Str Size: 2 AWG
• Conductor - Copper Str Size Range: 2 AWG
• Conductor - Material: COPPER
• Conductor Type: CODE
• Certification - CSA Approved: Yes
• Industry Standard(s): UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• System of Measurement: Unified (inch)
• RoHS Compliant: Yes
• Volts AC: 600
• Mounting: 2-Hole
• Standards: California Proposition 65
• Allowable Gauge Range: 2
• Dimension - Length Overall inch: 2.67 in
