Burndy YA29LBOX 250 KCMIL CU One Hole 1/2 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Product Description

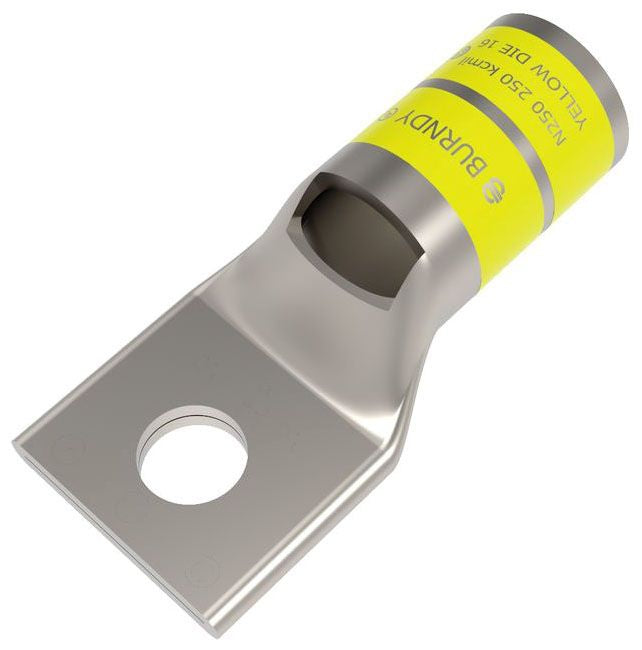

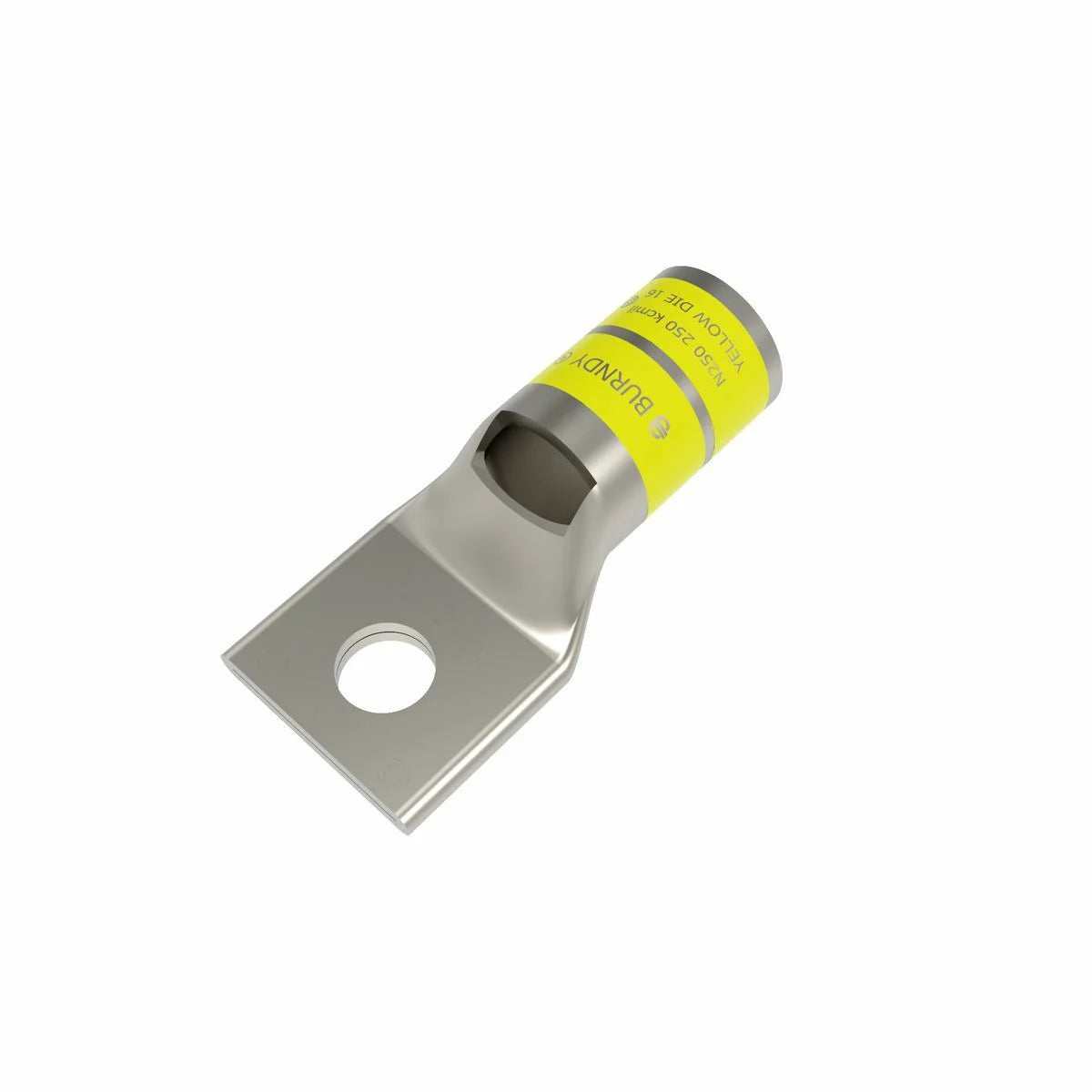

The Burndy YA29LBOX is a compression cable lug designed for wire termination applications. This model accommodates conductor sizes of two hundred fifty kcmil stranded copper. It features a one hole and half inch stud size. The standard barrel comes with an inspection window and internal chamfer for ease of use.

• Suitable for voltages up to thirty-five kilovolts
• Meets UL and CSA standards
• Made in the USA from high-quality materials

Product Highlights

This product is ideal for connecting wire to equipment in various electrical environments. It is heavily used in commercial and industrial installations.

Product Information

Standard Information

• Brand: Burndy
• Part Number: YA29LBOX

Technical Specifications

• Catalog Number: YA29LBOX
• Manufacturer: Burndy, a Hubbell affiliate
• Material: Copper
• Voltage Rating: 35 kV
• Application: Wire Termination
• Cross Reference Products: CTL250-12
• Country of Origin: United States
• Special Features: UL Listed, 600 V - 35 kV, Temperature Rating: 90°C
