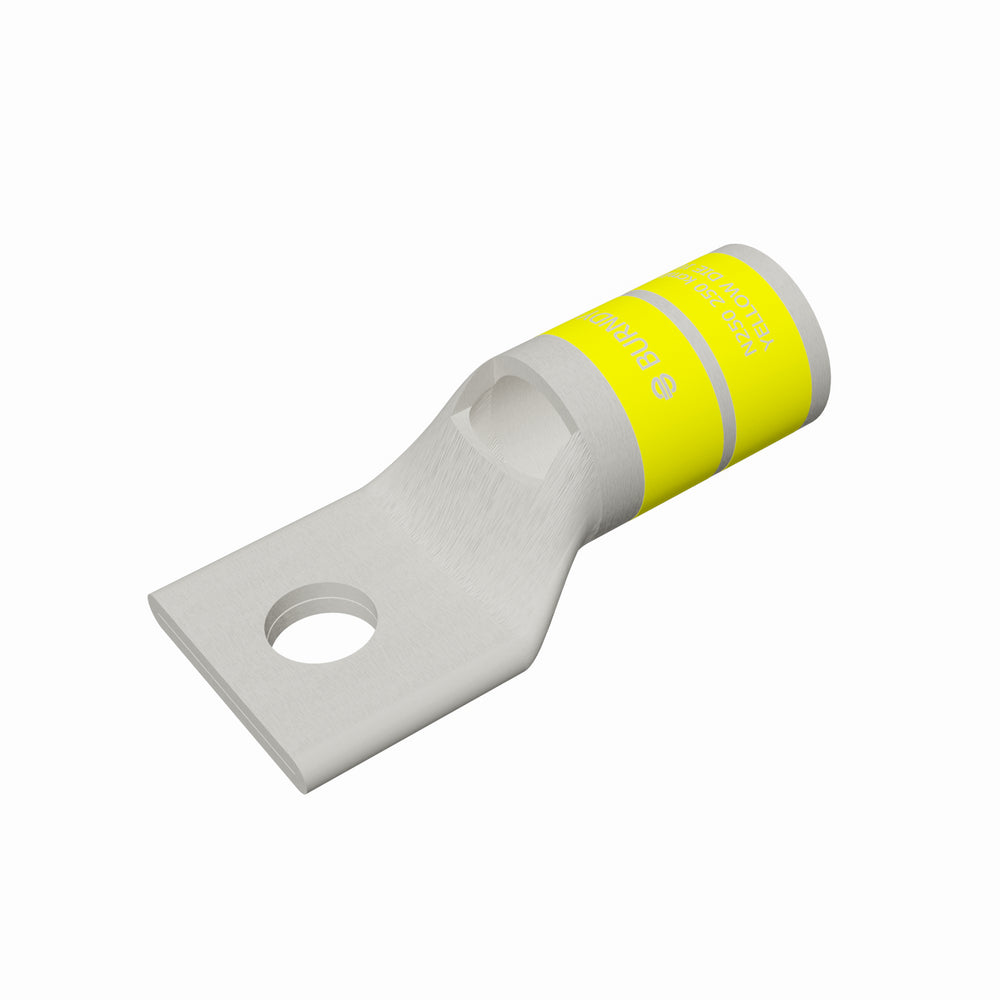

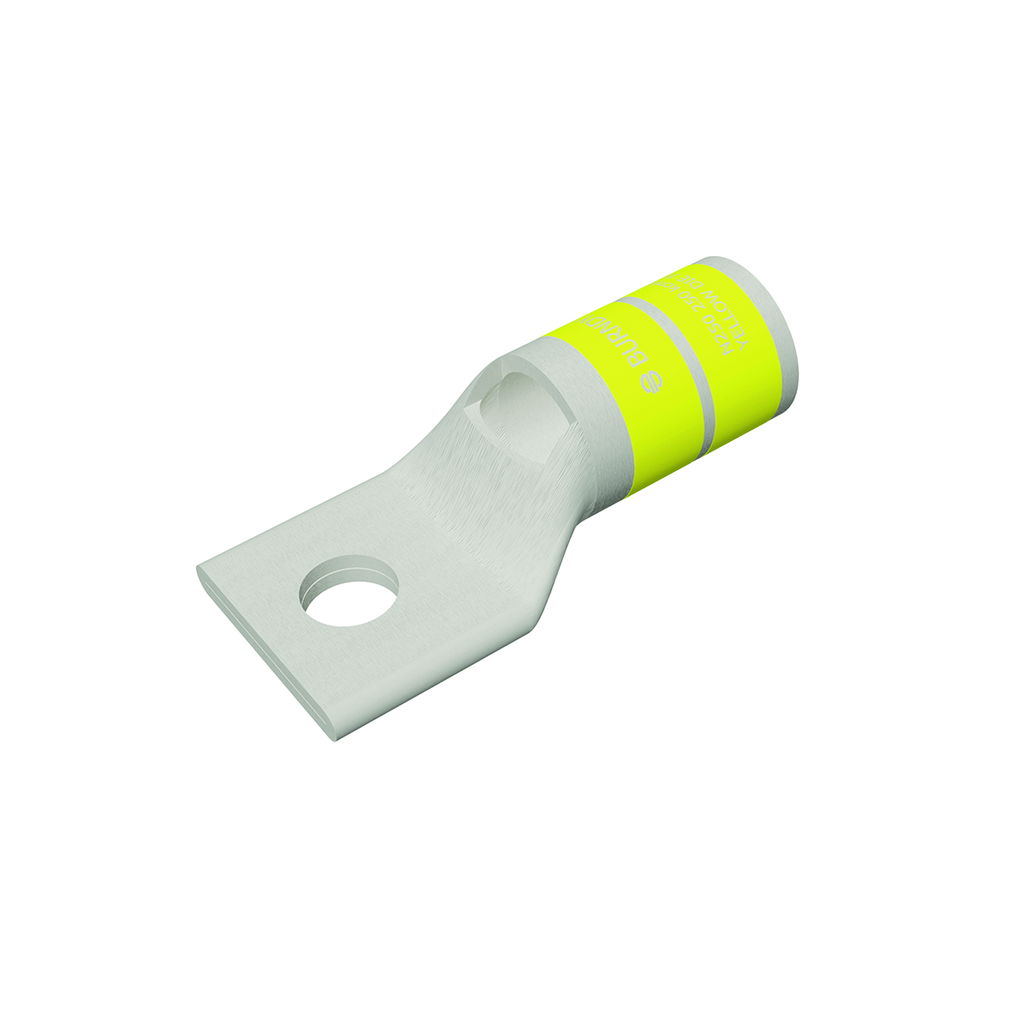

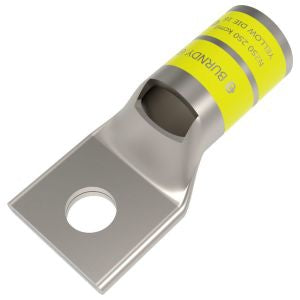

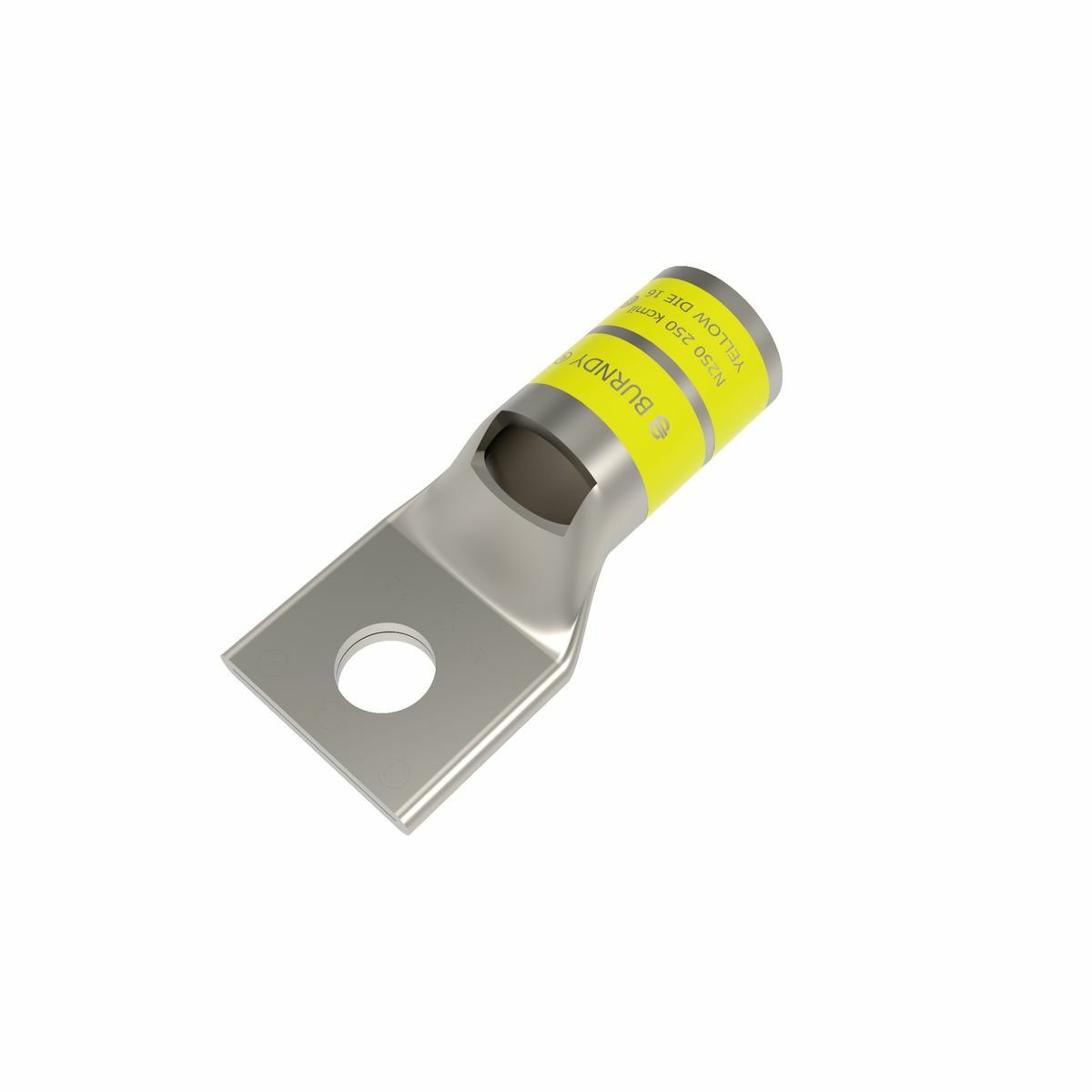

Burndy YA29L4 Compression Lug 250 kcmil One Hole 3/8 Stud Size Standard Barrel Inspection Window

Product Description

Burndy YA29L4 is a compression lug designed for copper conductors of size 250 kcmil. It features a one-hole design with an inspection window, facilitating easy installation. The lug is suitable for stud sizes of three-eighths inches and is made from tin-plated copper for reliable conductivity.

• Voltage rating up to 35 kV
• UL and CSA compliant for safety and reliability
• Color coded yellow for easy identification

Product Highlights

This compression lug is ideal for use in wire termination applications. It meets various industry standards and is designed for optimal performance in electrical installations.

Product Information

Standard Information

• Brand: Burndy
• Sub Brand: Hylug

Technical Specifications

• Material: Copper
• Length: 2.42 inches
• Width: 1.11 inches
• Height: 3/4 inches
• Stud Size: 3/8 inches
• Hole Size: 10 mm
• Voltage Rating: 35,000 Volts
• Die Index: 16
• Plating Type: Tin - Electro Plated
