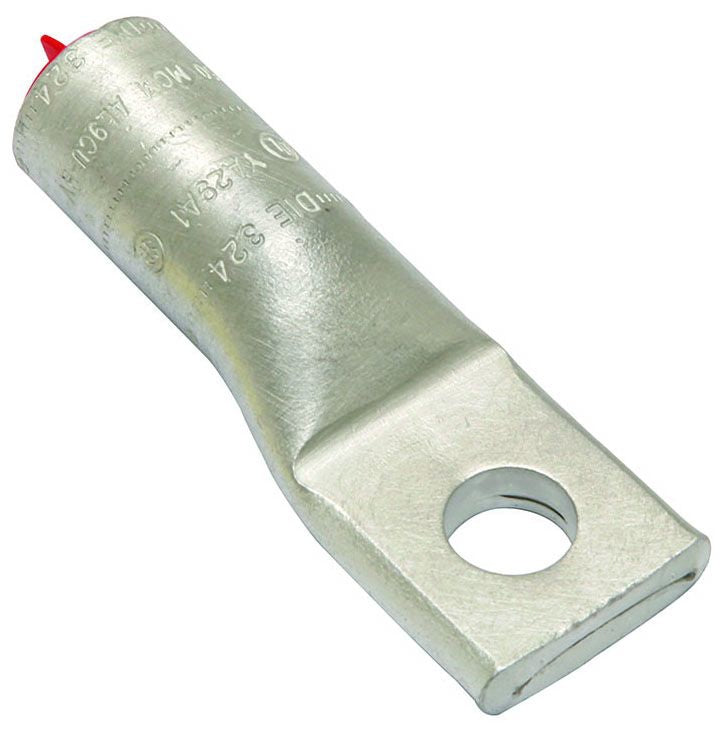

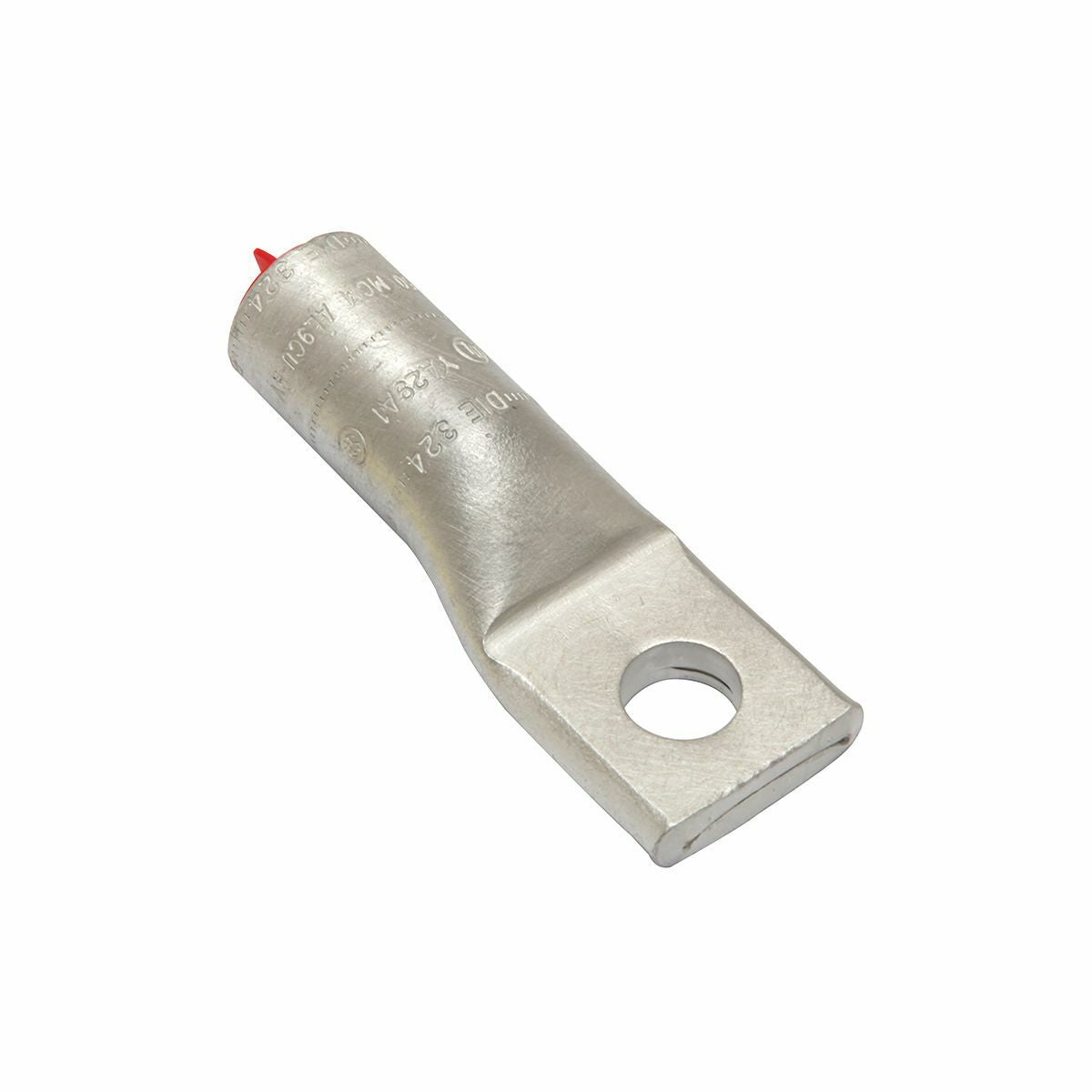

BURNDY YA29A1 250 KCMIL AL Terminal One Hole 1/2 Stud Size AL9CU Internal Chamfer Tin Plated Prefilled PENETROX End Cap ULCSA 90C Up to 35kV Red Color Code 324 Die Index

Product Description

The BURNDY YA29A1 is a compression terminal designed for use with both aluminum and copper conductors. It is built for applications rated up to thirty-five kilovolts. This product is a heavy-duty terminal, designed to provide reliable wire termination.

• Rated for use on aluminum and copper conductors
• UL and CSA approved for high-voltage applications
• PENETROX prefilled for oxidation prevention

Product Highlights

The YA29A1 terminal is dual-rated and features a unique design allowing for a strong connection into both aluminum and copper wires. It comes prefilled with PENETROX, which helps maintain conductivity over time.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA29A1
• Material: Aluminum
• Voltage Rating: 35 kV
• Color Code: Red
• Diameter of Pad Hole: 1/2 inches
• Barrel Length: 1.45 inches
• Temperature Rating: 90 degrees Celsius
• Application: Wire Termination
