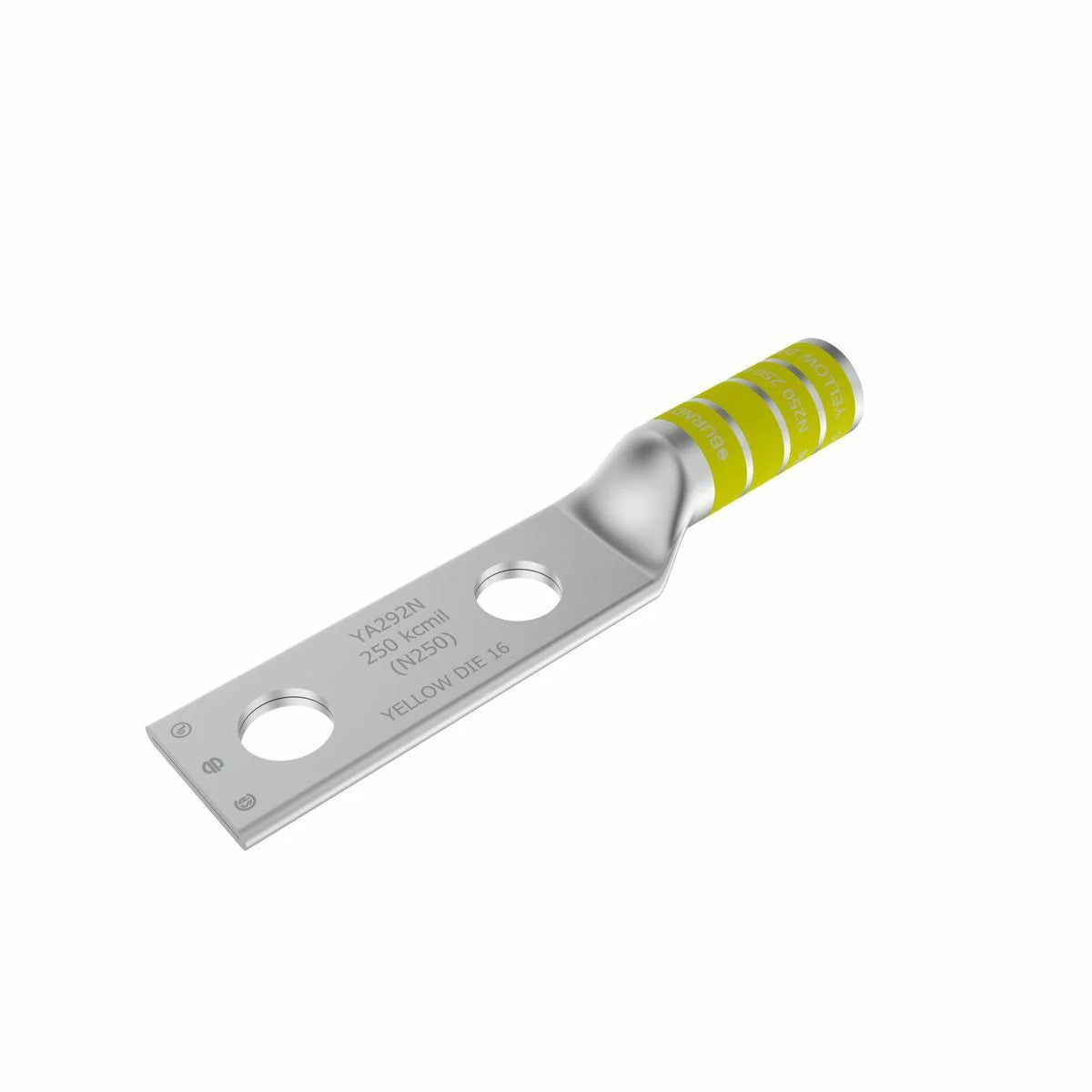

BURNDY YA292N Compression Terminal 600V to 35KV 250 kcmil CU, Two Hole, 1/2 Stud Size

Product Description

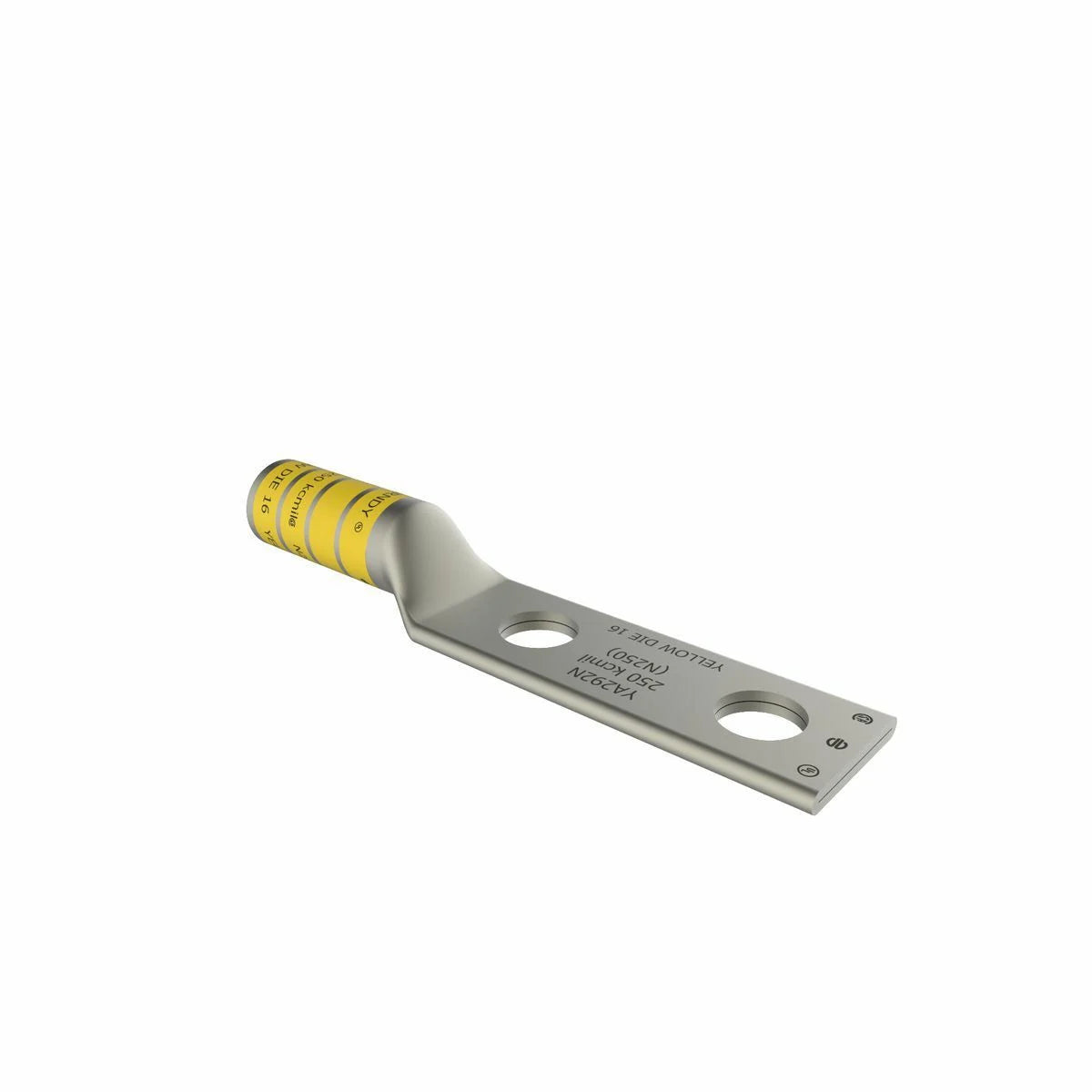

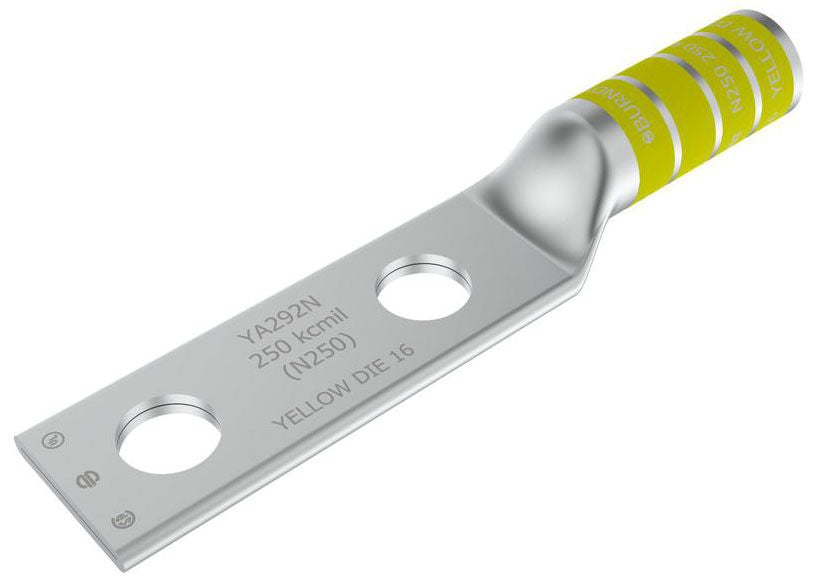

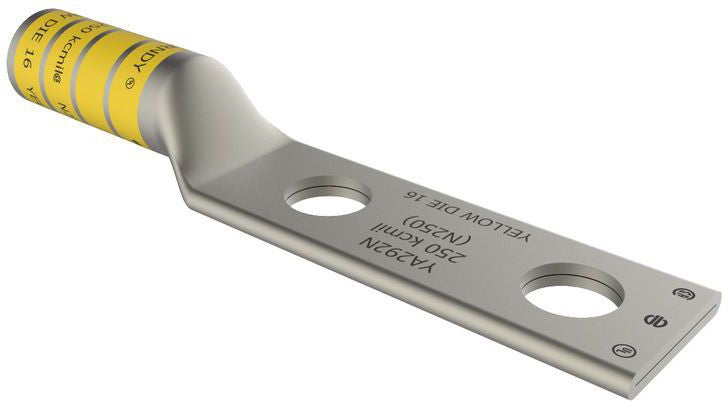

The BURNDY YA292N is a compression terminal designed for wire termination. It is suitable for use with copper conductors sized 250 kcmil. This terminal offers a voltage rating from six hundred volts to thirty-five kilovolts. The device has a long barrel with a straight, chamfered entry for ease of installation.

• UL Listed for 90 degrees Celsius and rated for up to 35 kV
• Made of copper with an electro-tin plating
• Designed for wire strip length of one and eleven-sixteenths inches

Product Highlights

This terminal is designed for reliable connections in various applications requiring wire termination.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YA292N
• Application: Wire Termination
• Material: Copper
• Voltage Rating: 35 KV
• Finish: Electro-Tin Plated
• Pad Size: 1.11 inches x 0.16 inches
• Number of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 inches
