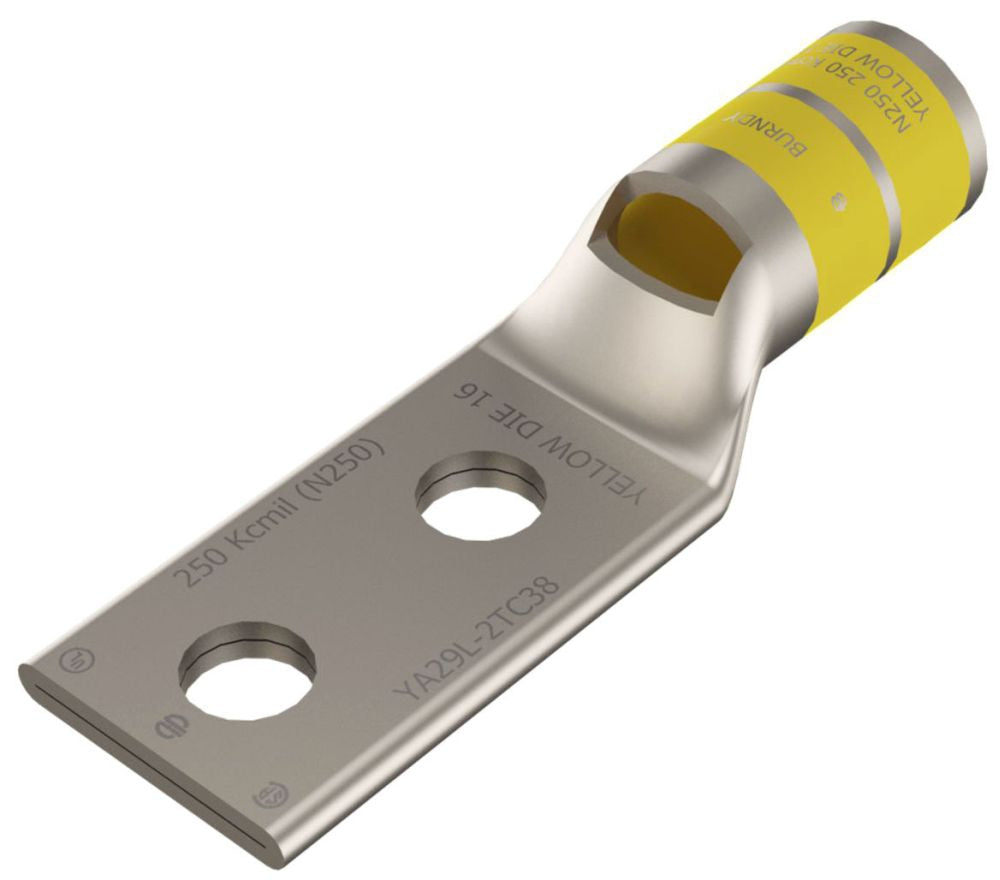

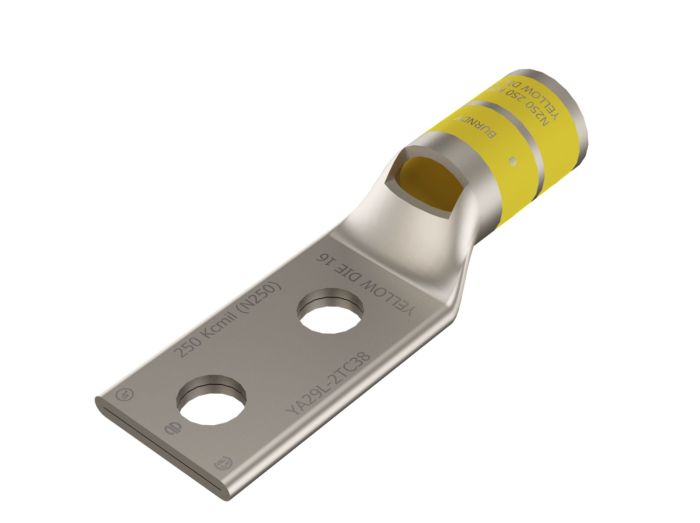

Burndy YA292LN Hylug Compression Lug With Inspection Window 2-Hole 250 kcmil

Product Description

The BURNDY YA292LN Hylug™ is a 2-hole compression lug with an inspection window, designed for copper conductors. This lug is tin-plated and accommodates a wire size of 250 kcmil. It is suitable for use in applications requiring a reliable and durable connection, with a voltage rating up to 35kV.

• Copper Compression Lug
• 2 Hole with Inspection Window
• Short Barrel

Product Highlights

Provides a secure and reliable connection for 250 kcmil copper conductors, featuring an inspection window and tin plating for enhanced durability.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA292LN
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121405
• Die Color: Yellow
• Color Code: Yellow
• Stud Hole Spacing: 1.75 in.
• Lug Wire Size: 250 kcmil
• Stud Size: 1/2 in.
• Material: Copper
• Number of Holes: 2
• Hole Spacing: 1-3/4 in
• Plating: Tin Plated
• Voltage: Up to 35kV
• Temperature Rating: 90.C
• Die Index: 16
• Plating Type: Tin - Electro Plated
• Application: Wire Termination
• Standard: UL 486A-486B
• Trade Name: HYLUG
• Product Type: TERMINAL
• Voltage Rating: 35 kV
• Dimension - Hole Size inch: 0.56
• Dimension - Pad Width inch: 1.10 in
• Product Series: YA-2LN
• Terminal Type: Barrel - Standard, Two Hole
• Wire Size Range: 250 kcmil
• Insulated: Non-Insulated
• Approvals: CSA, UL
• Tongue Width: 1.11 in
• Maximum Temperature: 194 °F
