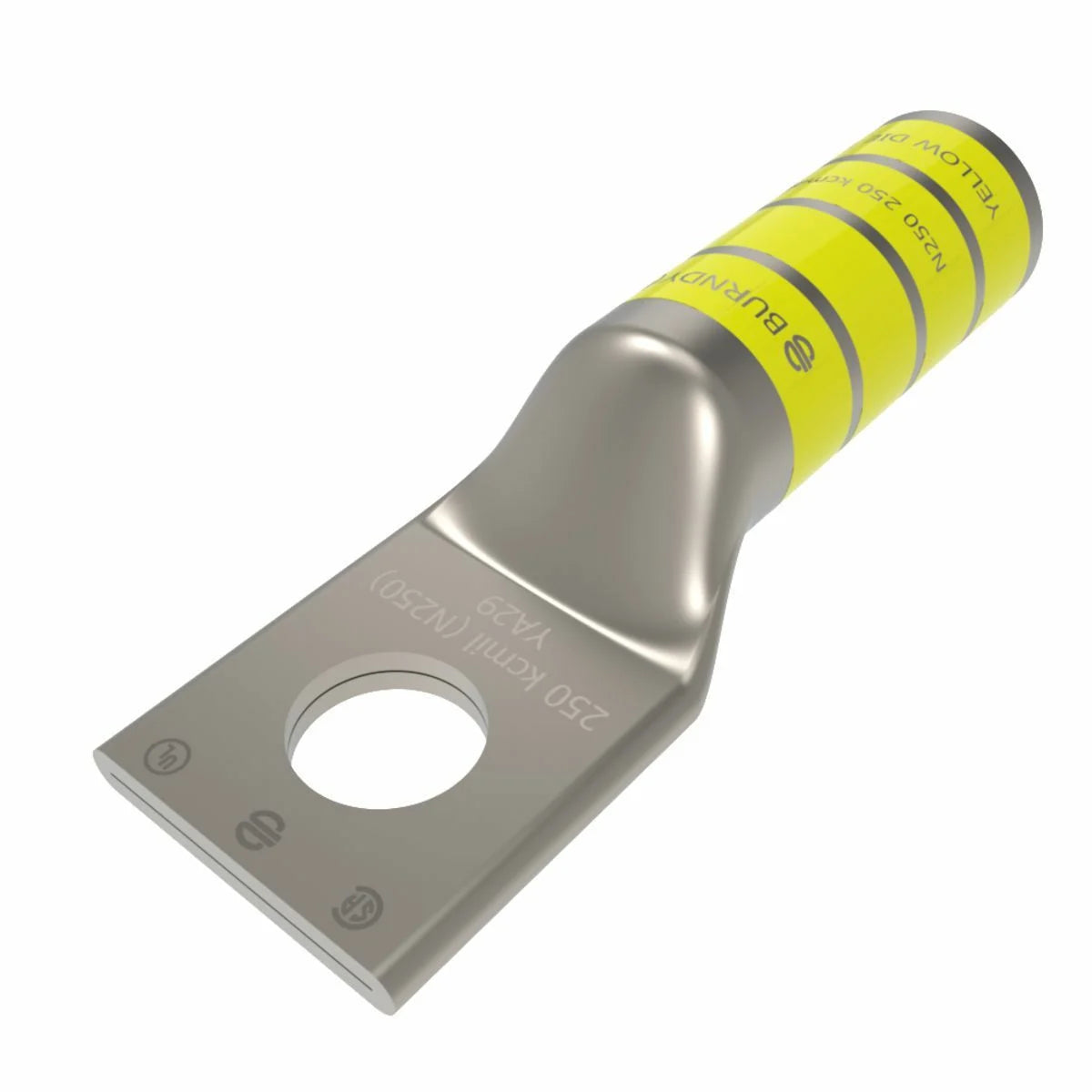

BURNDY YA29 Compression Cable Lug 250 KCMIL CU 1/2 Stud Size Long Barrel

Product Description

BURNDY YA29 is a compression cable lug designed for reliable wire termination. This product is suitable for use with 250 KCMIL copper conductors and is UL listed for safety. The lug can handle voltage ratings up to 35 kilovolts, making it ideal for various electrical applications.

• UL Listed for applications up to 35 kV
• Made from copper with electro-tin plating
• Features a long barrel with internal chamfer

Product Highlights

Designed for effective wire termination, this copper lug is engineered to provide secure connections in a variety of environments.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA29
• Voltage Rating: 35 kV
• Conductor Size: 250 KCMIL
• Material: Copper
• Pad Size: 1.11 inches by 0.16 inches
• Stud Size: 1/2 inch
• Temperature Rating: 90 °C
• Special Features: UL Listed 90 °C, 600 V - 35 KV, die index: 16, color code: yellow
• Country of Origin: United States
