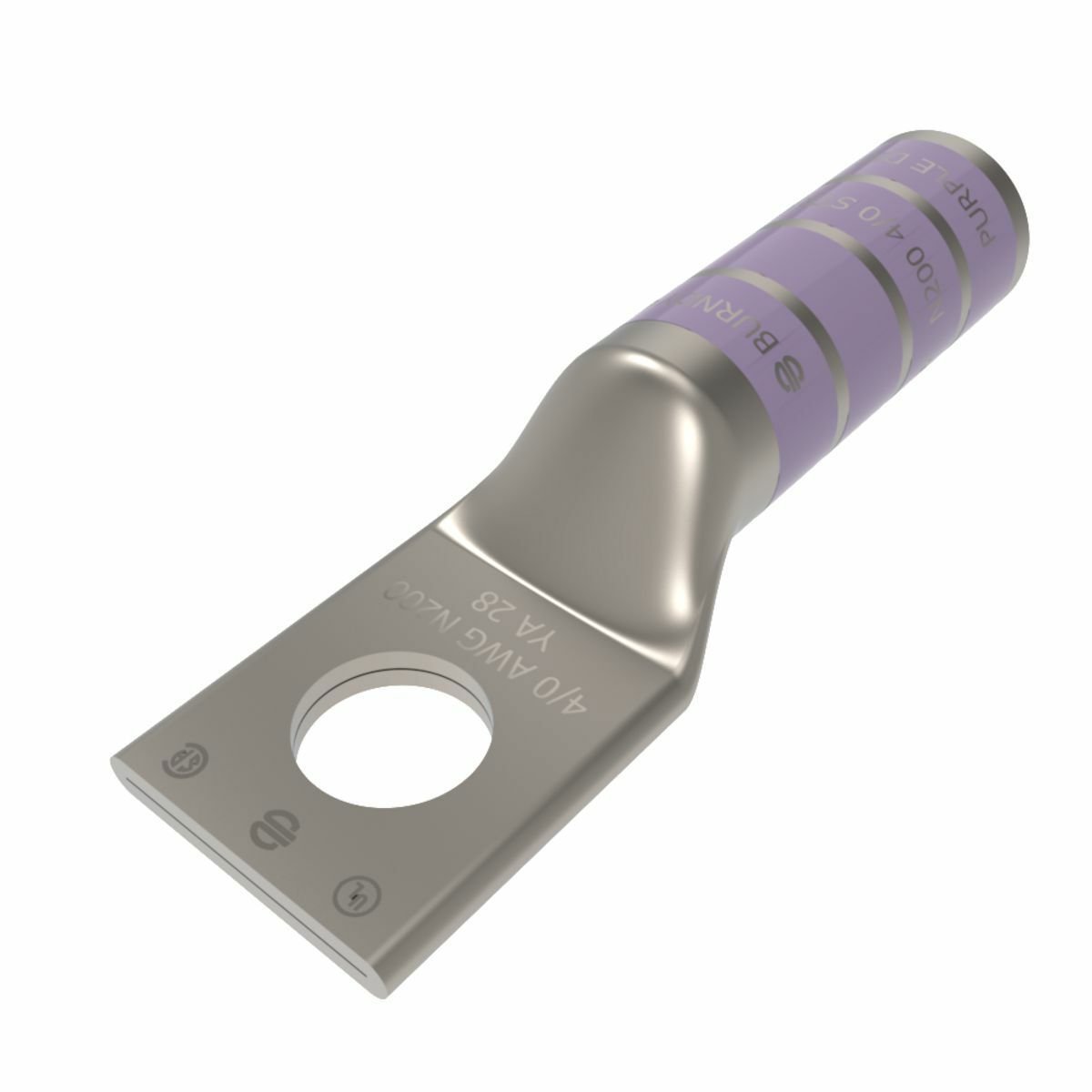

BURNDY YA28TC38 4/0 AWG CU One Hole 3/8 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV

Product Description

The BURNDY YA28TC38 compression cable lug is designed for efficient wire termination. It accommodates a conductor size of 4/0 AWG and features a one hole design with a three eighths inch stud size. The lug is constructed from copper with a long barrel length measuring one point six two inches.

• Voltage rating of thirty five kilovolts
• Meets UL and CSA standards
• Temperature rated up to ninety degrees Celsius

Product Highlights

This product is ideal for applications requiring reliable electrical connections in various environments. The tin plating enhances corrosion resistance and ensures long-lasting performance.

Product Information

Standard Information

• Catalog Number: YA28TC38
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Item Type: Long Barrel, Tin Plated
• Voltage Rating: 35 kV
• Special Features: Internal chamfer, UL listed
• Wire Strip Length: 1-11/16 inches
• Color Code: Purple
• Application: Wire termination
• Country of Origin: United States
