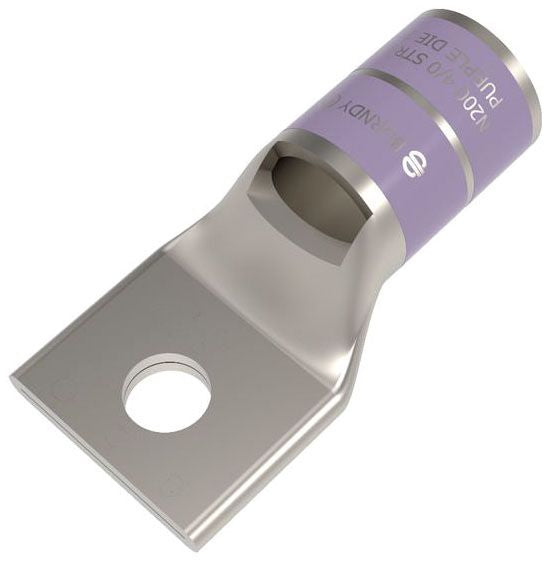

Burndy YA28L4BOX 4/0 AWG CU, One Hole, 3/8 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV Purple Color Code 15 Die Index

Product Description

The Burndy YA28L4BOX is a cable lug designed for electrical connections. It is made from copper and is suitable for wire termination applications. This lug has a voltage rating of thirty-five kilovolts and is UL/CSA listed for safety. It features a one-hole design to fit a three-eighths inch stud size.

• Material: Copper
• Voltage Rating: 35kV
• Application: Wire Termination

Product Highlights

This product includes an inspection window, internal chamfer, and a tin plated finish, ensuring reliability in installations.

Product Information

Standard Information

• Catalog Number: YA28L4BOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Item Type: Standard Barrel, Tin Plated
• Cross Reference Products: 54112
• Application: Wire Termination
• Material: Copper
• Special Features: Features UL Listed 90 DEG C, 600 V - 35 KV, Electro-Tin Plated
• Country of Origin: United States
• Temperature Rating: 90 DEG C
• Wire Strip Length: 1-1/8 inch
