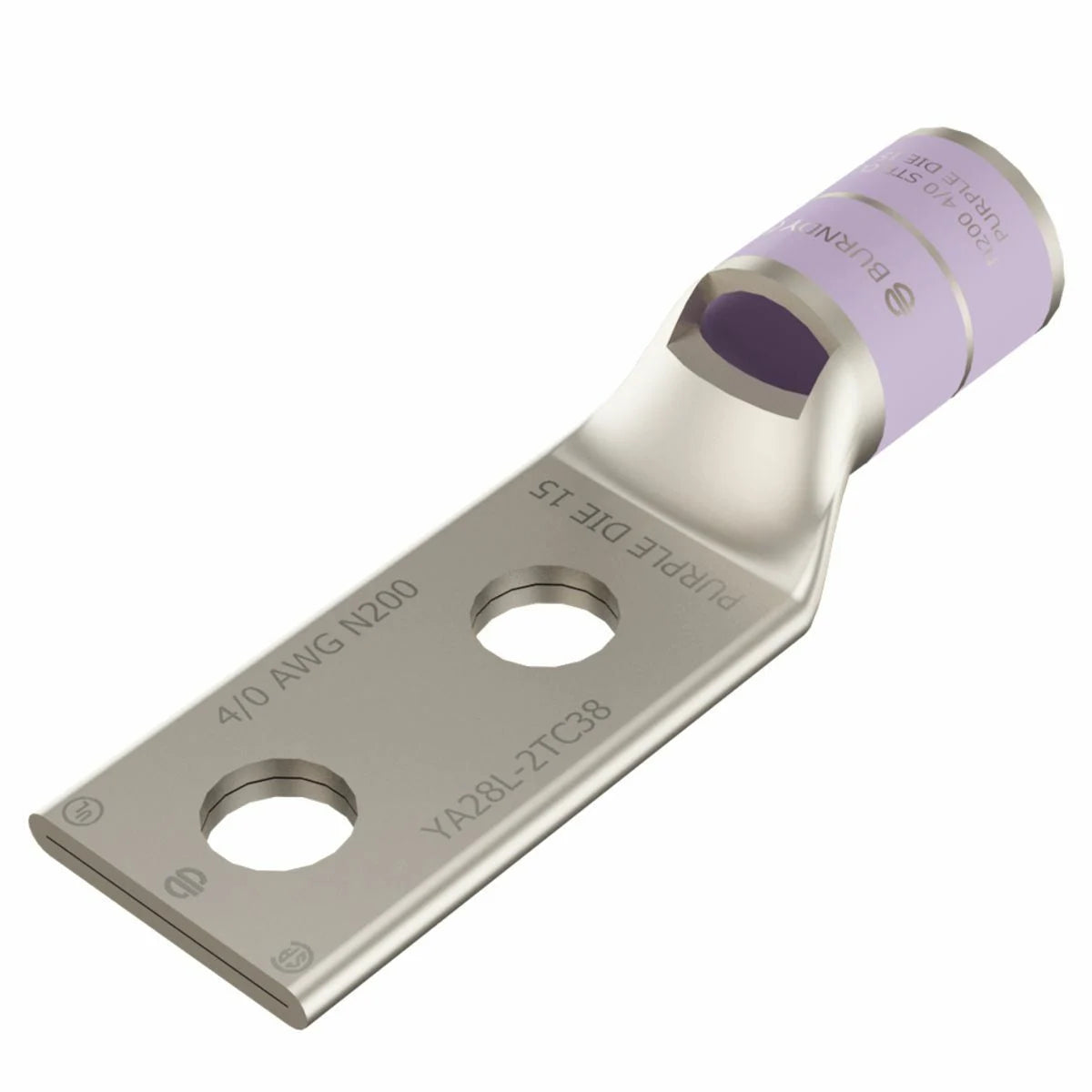

BURNDY YA28L2TC38 4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA

Product Description

The BURNDY YA28L2TC38 is a compression cable lug designed for wire termination applications. It accommodates a conductor size of four ought AWG copper. This product features a two-hole design with a three-eighth inch stud size and a one-inch hole spacing. It is suited for high voltage applications up to thirty-five kilovolts.

• Compatible with UL486A-486B standards
• Rated for temperatures up to ninety degrees Celsius
• Electro-tin plated finish for enhanced corrosion resistance

Product Highlights

The lug is easy to handle and offers reliable connectivity for copper conductors. It has an inspection window, allowing for visual confirmation during installation. The design includes internal chamfers for improved wire entry.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA28L2TC38
• Material: Copper
• Voltage Rating: 35 kV
• Wire Strip Length: 1-1/8 inches
• Die Index: 15
• Special Features: UL Listed, tin plated
• Country of Origin: United States
