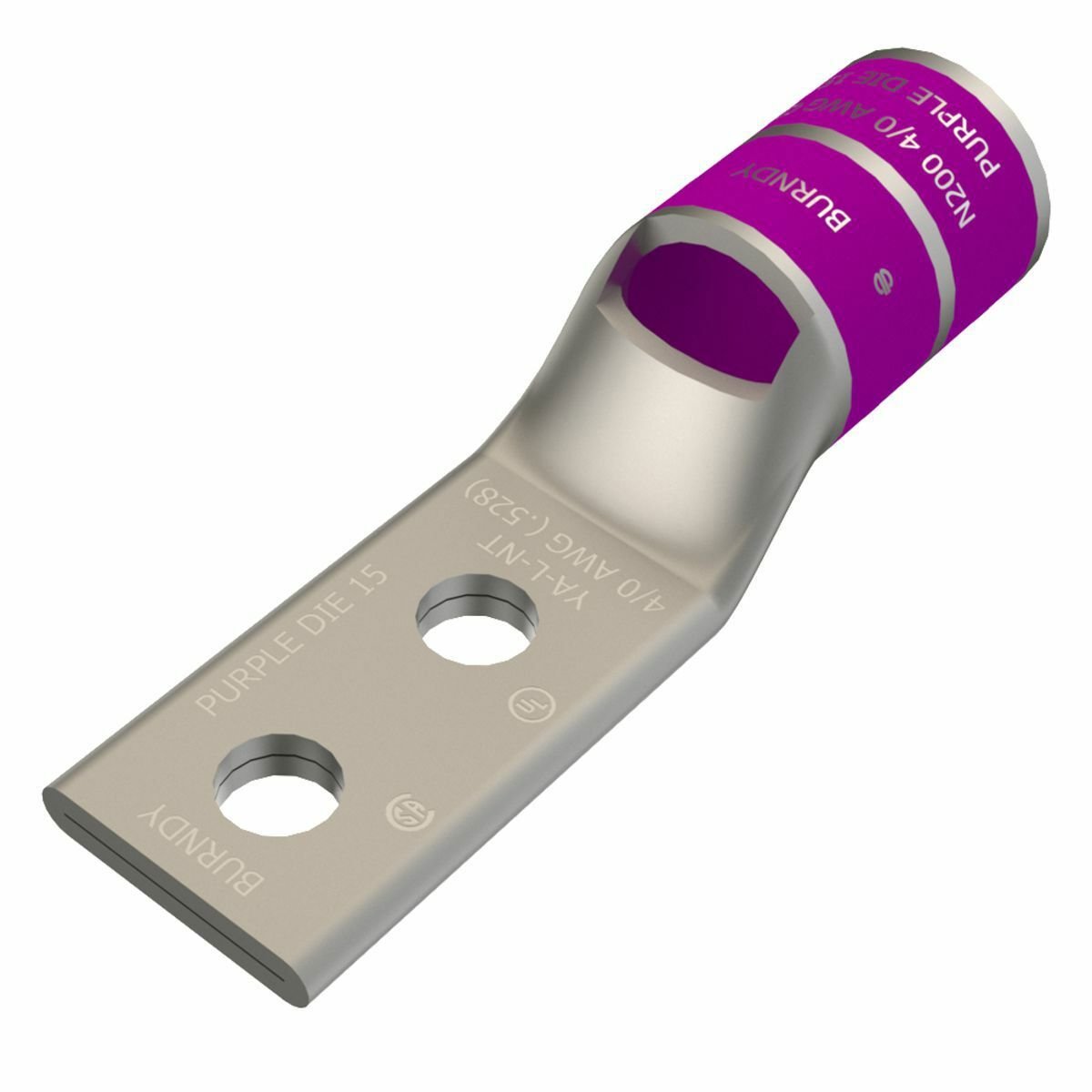

Burndy YA28L2NT14 4/0 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Standard Barrel

Product Description

The Burndy YA28L2NT14 is a two-hole lug designed for electrical wire termination. It is suitable for use with 4/0 AWG copper wire. This product is UL listed and has a voltage rating of up to thirty-five kilovolts, making it reliable for high voltage applications.

• Voltage Rating: Up to 35 kV
• Material: Copper
• Application: Wire Termination

Product Highlights

This lug features a tin-plated finish and an inspection window for easier installation checks.

Product Information

Standard Information

• Catalog Number: YA28L2NT14
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: Burndy
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Conductor Size: 4/0 AWG Stranded

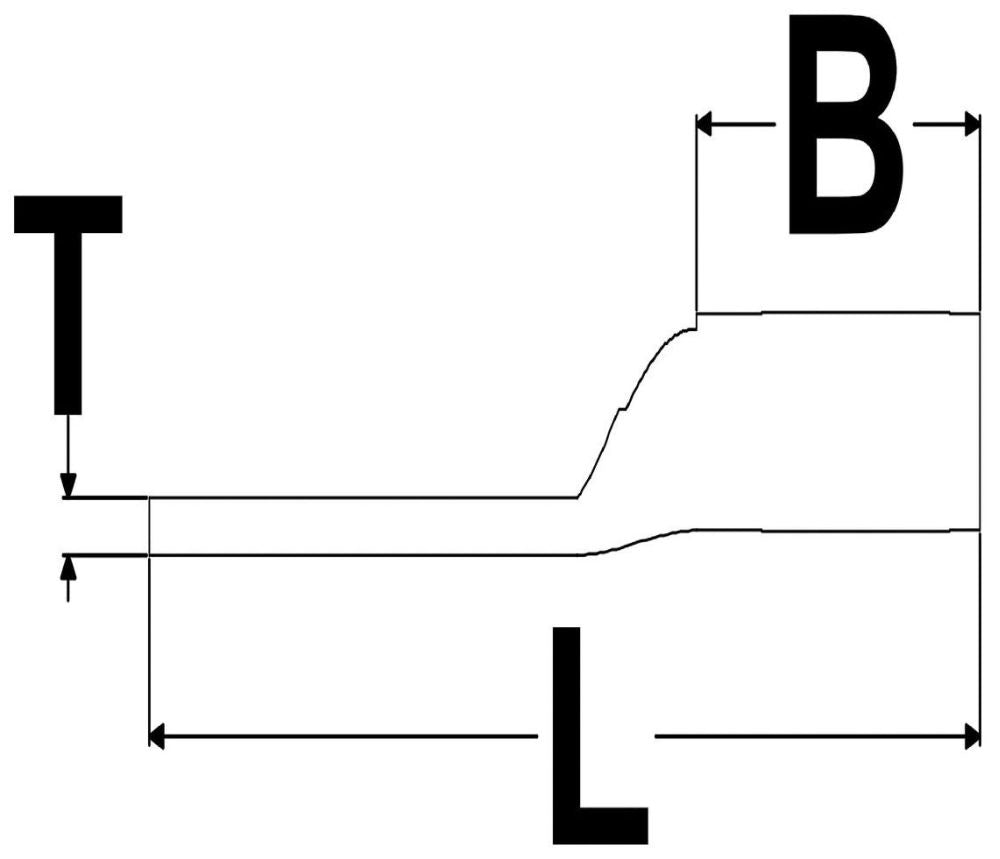

• Pad Size: 1.3 inches length x 0.76 inches width x 0.13 inches thickness
• Pad Hole Spacing: 5/8 inches
• Stud Size: 1/4 inches
• Color Code: Purple
• Die Index: 15
• Approval: UL 486A/486B, CSA
• Insulation Type: Non-Insulated
