BURNDY YA28A3 4/0 AWG, AL Terminal, One Hole, 1/2 Stud Size, AL9CU

Product Description

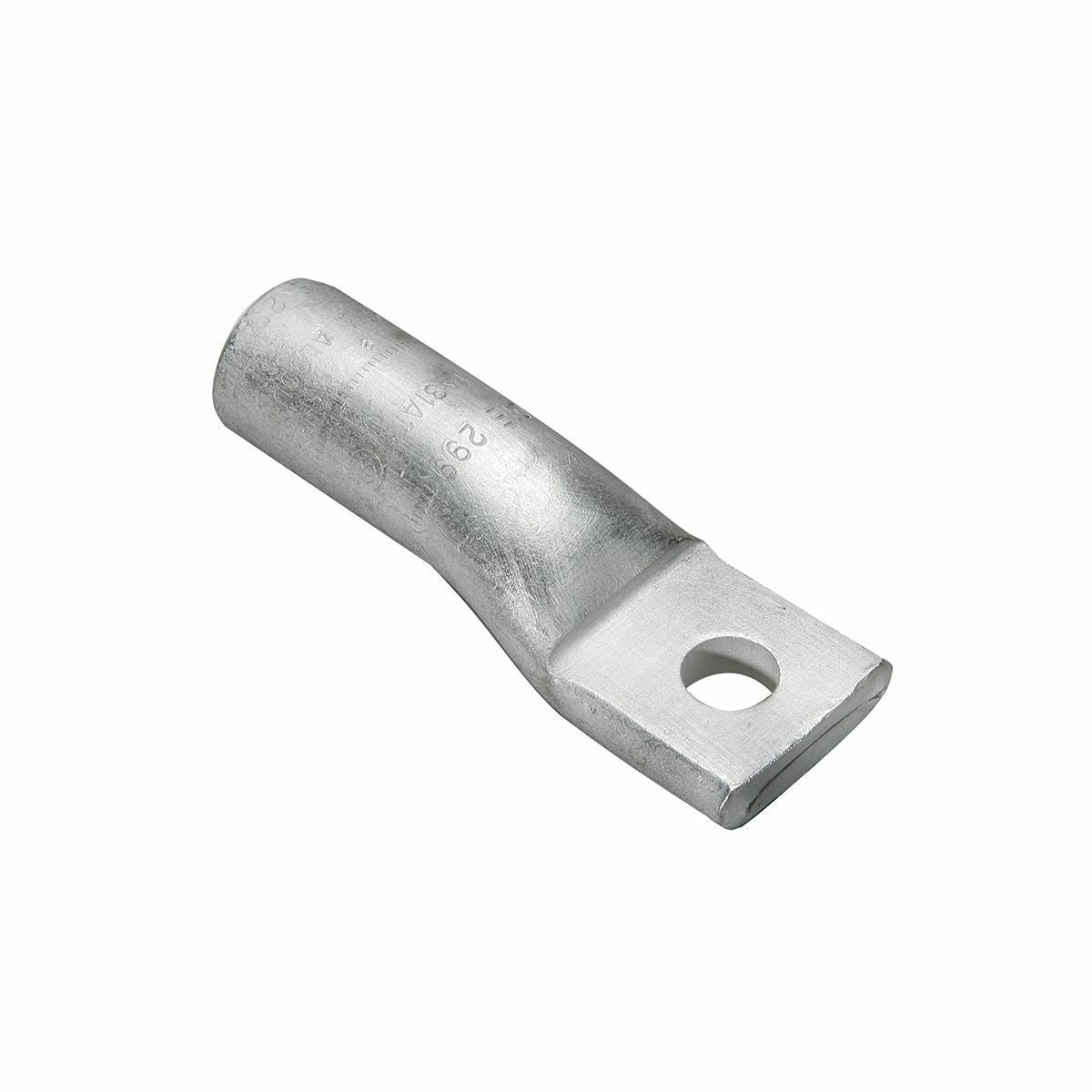

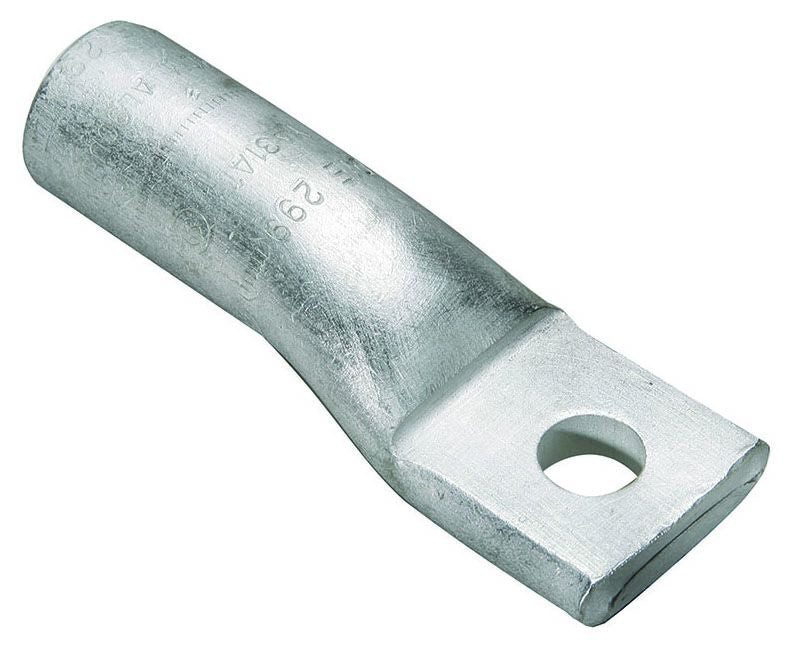

The BURNDY YA28A3 is a compression cable lug designed for electrical wire termination. This lug accommodates a wire size of 4/0 AWG and has a stud size of one-half inch. It is made from aluminum and features a tin-plated finish for enhanced conductivity and corrosion resistance.

• Rated for voltages up to thirty-five kilovolts.
• Prefilled with PENETROX oxide inhibitor for long-term reliability.
• Color-coded end caps prevent contamination before usage.

Product Highlights

This product is dual-rated for aluminum and copper conductors and is ideal for heavy-duty applications. It meets UL486B and CSA standards for safe and effective use.

Product Information

Standard Information

• Catalog Number: YA28A3
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Application: Wire Termination
• Material: Aluminum
• Voltage Rating: 35
• Special Features: Dual-rated, UL Listed 90 degrees Celsius, corrosion-resistant, prefilled with oxide inhibitor, internally bevelled barrel for easy cable insertion, clearly marked with wire size and die index.
• Standard: UL 486A-486B
• UPC: 781810754801
• GTIN: 00781810754801
• Item Type: YA-A, Dual Rated
