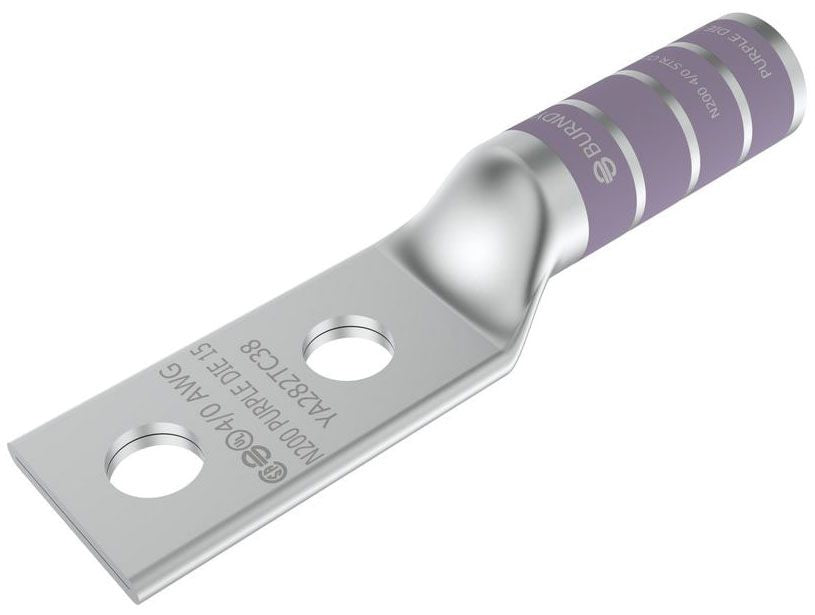

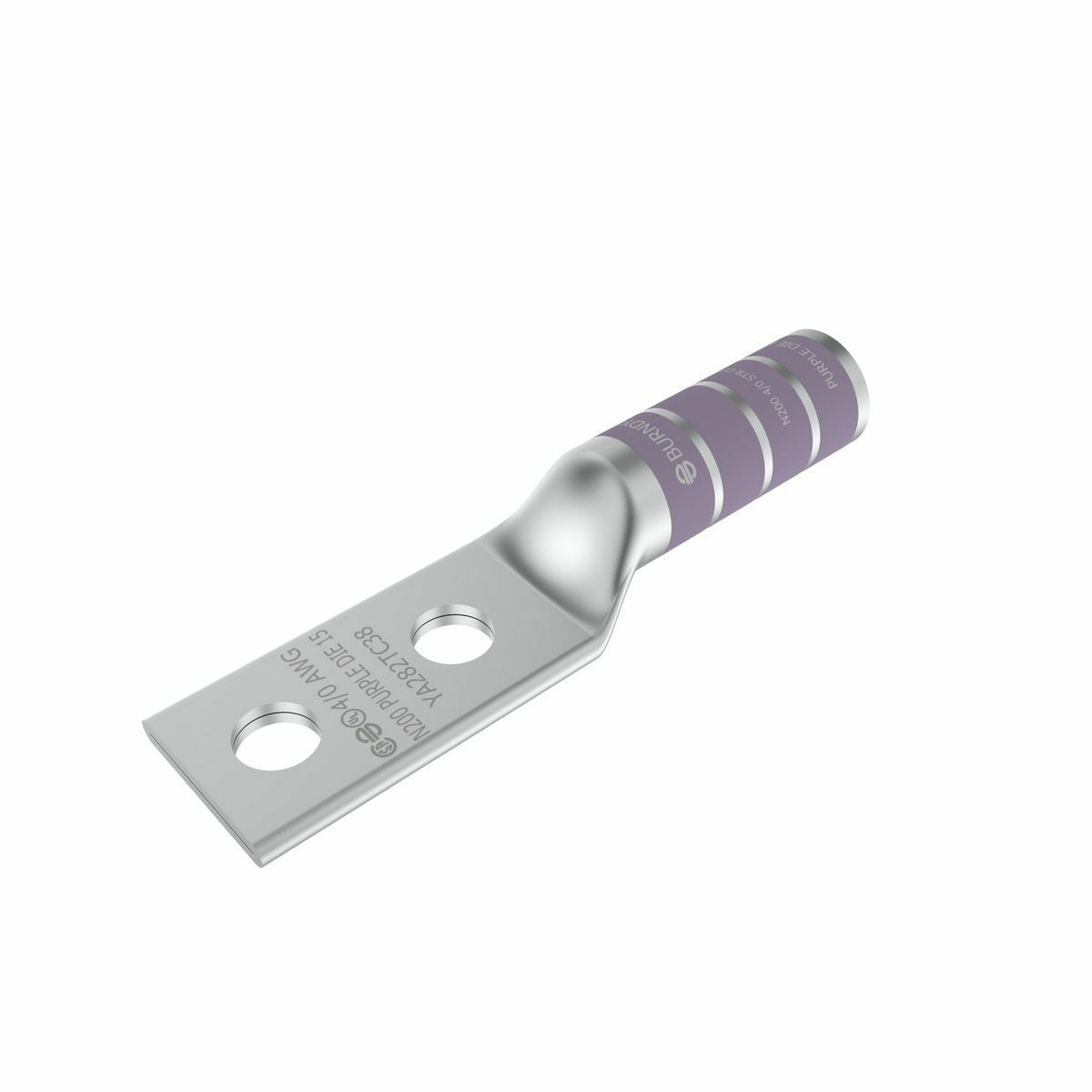

BURNDY YA282TC38 4/0 AWG CU Two Hole 3/8 Stud Size Long Barrel Internal Chamfer

Product Description

BURNDY offers the YA282TC38, a reliable compression cable lug for electrical applications. This product is designed for wire termination, featuring a long barrel and internal chamfer. The lug accommodates a three-eighth inch stud size with one hole spacing. The construction includes copper material, electro-tin plating, and a maximum voltage rating of thirty-five kilovolts.

• UL and CSA approved for safe and reliable use.
• Temperature rating of ninety degrees Celsius suitable for a variety of applications.
• Wire strip length guidelines for effective installation.

Product Highlights

This compression cable lug is ideal for securing and terminating electrical wires in diverse installations. The product comes with a purple color code for easy identification and conforms to UL 486A-486B standards.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA282TC38
• Voltage Rating: 35 kV
• Material: Copper
• Application: Wire Termination
• Special Features: UL Listed, temperature rating of 90 degrees Celsius, electro-tin plated finish
• Country of Origin: United States
• Die Index: 15
• Wire Strip Length: 1-11/16 inches
