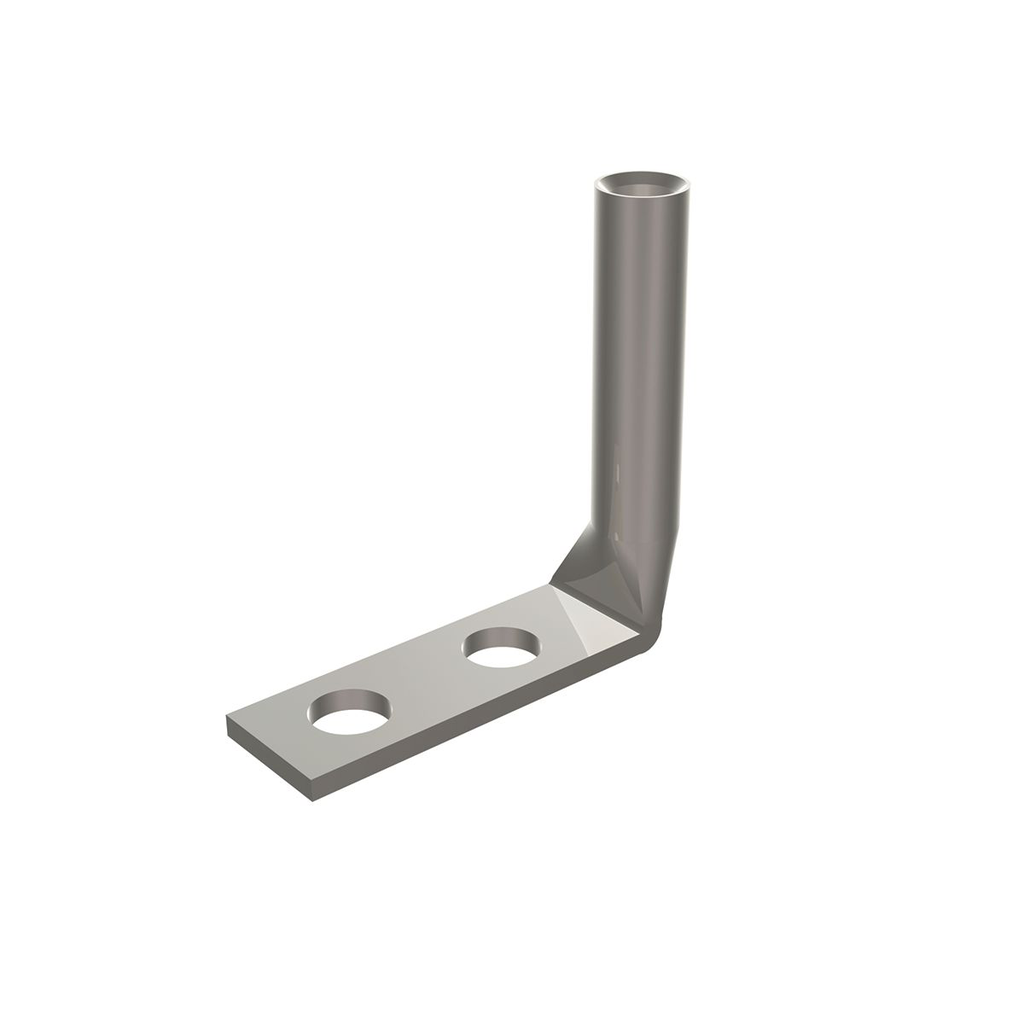

BURNDY YA282N90 4/0AWG TERMINAL LUG

Product Description

The BURNDY YA282N90 is a compression terminal designed for high voltage applications, rated up to thirty-five kilovolts. This terminal is made to connect copper conductors of size four-ought American Wire Gauge. Its long, chamfered barrel is specifically crafted to accommodate larger wire sizes, ensuring reliable connections in various electrical applications.

• Compression Terminal Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Approval: UL 486A/486B, CSA

Product Highlights

The BURNDY YA282N90 features a high-quality electrolytic tin plated copper construction that enhances conductivity and resist corrosion. It is easy to install with a barrel length of one point sixty-two inches, ensuring a secure fit for your wiring needs.

Product Information

Standard Information

• Manufacturer: BURNDY
• UPC: 78181017972

Technical Specifications

• Conductor Size: 4/0 AWG Stranded
• Barrel Type: 90 Degree, Long, Chamfered
• Pad Size: 3.02 Inch Length x 1.02 Inch Width x 0.14 Inch Thickness
• Number of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Overall Length: 3.49 Inch
• Insulation Type: Non-Insulated
