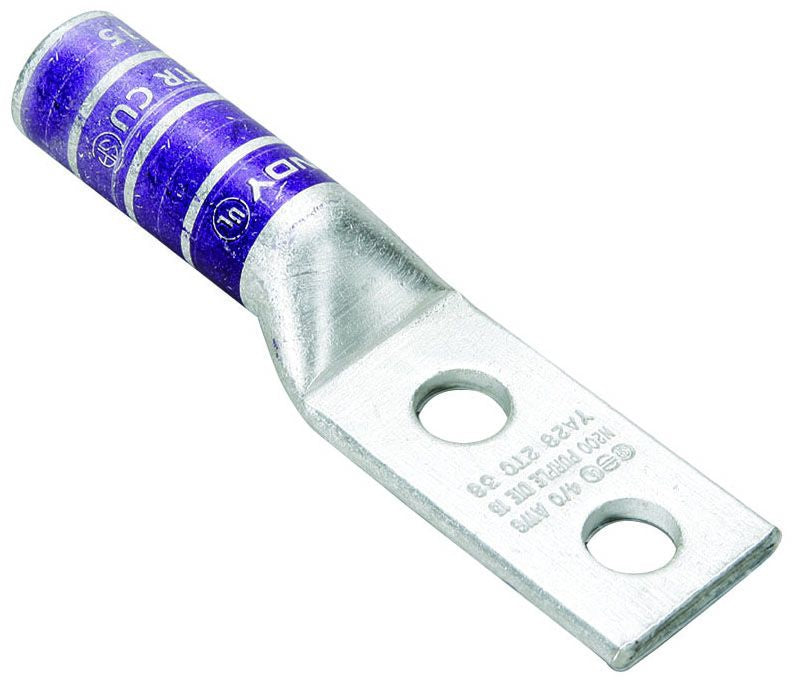

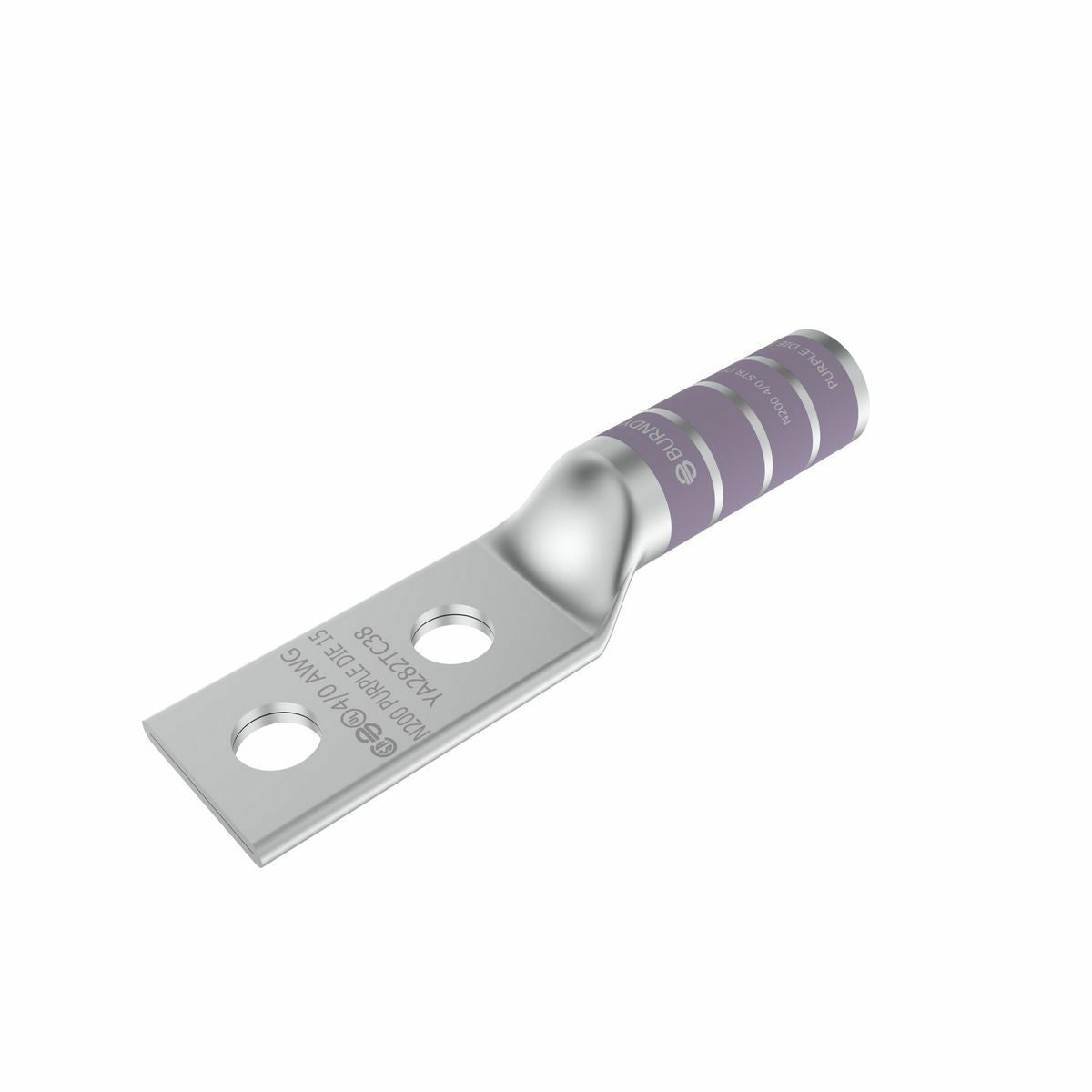

BURNDY YA282N 4/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated

Product Description

The BURNDY YA282N is designed for reliable wire termination applications. This compression cable lug is suitable for use with two hole connections. It is specifically made for 4/0 AWG stranded copper conductors, ensuring a strong and secure connection. The lug features a long barrel with a chamfered entry for ease of installation.

• Voltage rating: 35 kV
• UL and CSA listed for safety
• Temperature rating of 90 degrees Celsius

Product Highlights

This product offers exceptional performance for electrical connections, easy installation, and industry compliance. It is perfect for electricians and technicians working with high-voltage applications.

Product Information

Standard Information

• Catalog Number: YA282N
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Item Type: Long Barrel, Tin Plated
• Barrel Length: 1.62 inches
• Pad Size: 1.02 inches width x 0.14 inches thickness
• Pad Hole Spacing: 1-3/4 inches
• Stud Size: 1/2 inch
• Color Code: Purple
• Die Index: 15
• Country of Origin: United States
