Burndy YA28-L2 Compression Terminal 4/0 AWG 1-Hole 1/4 inches Stud

Product Description

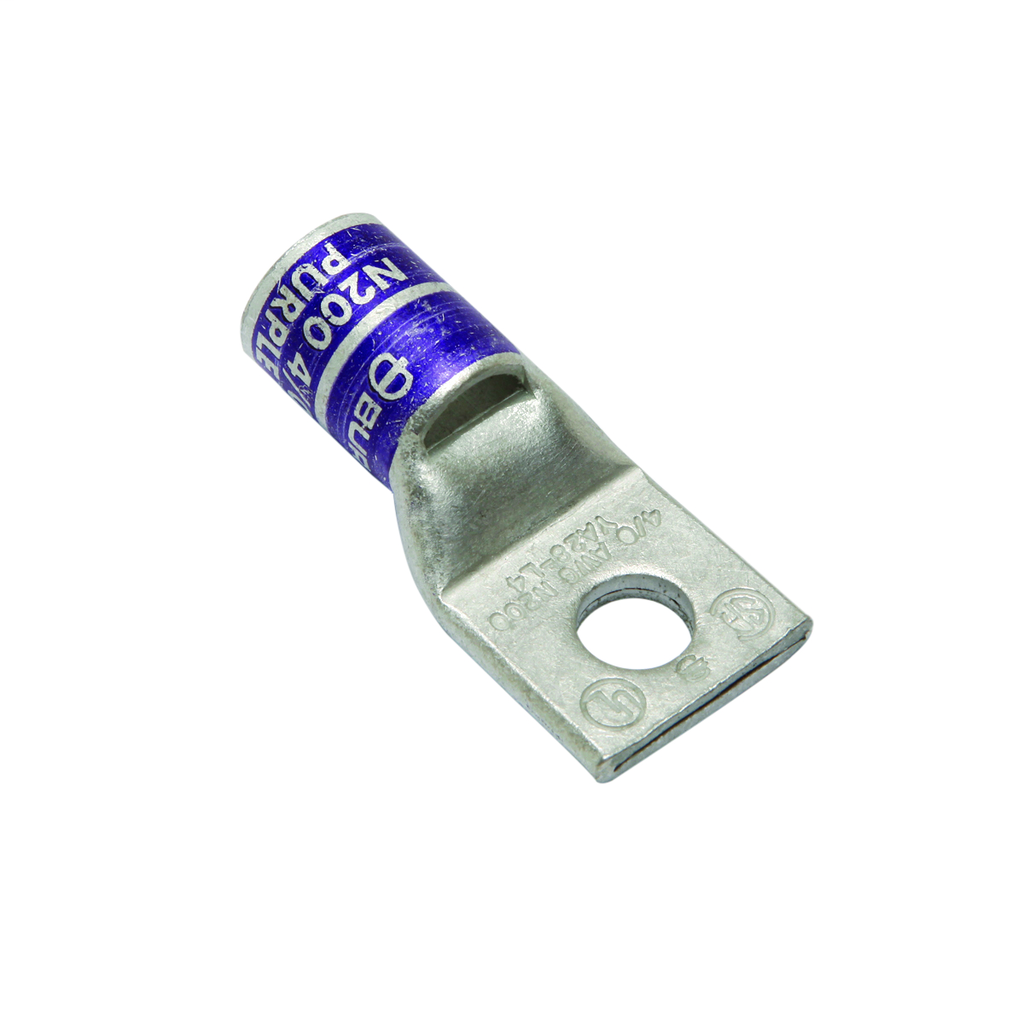

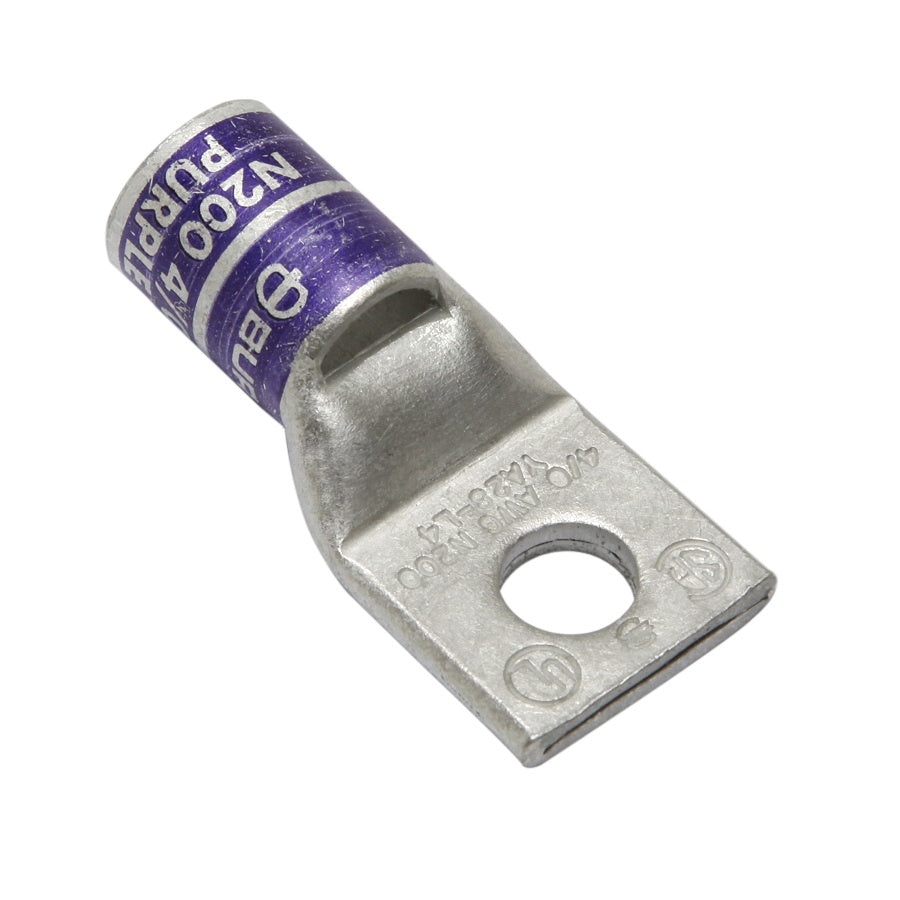

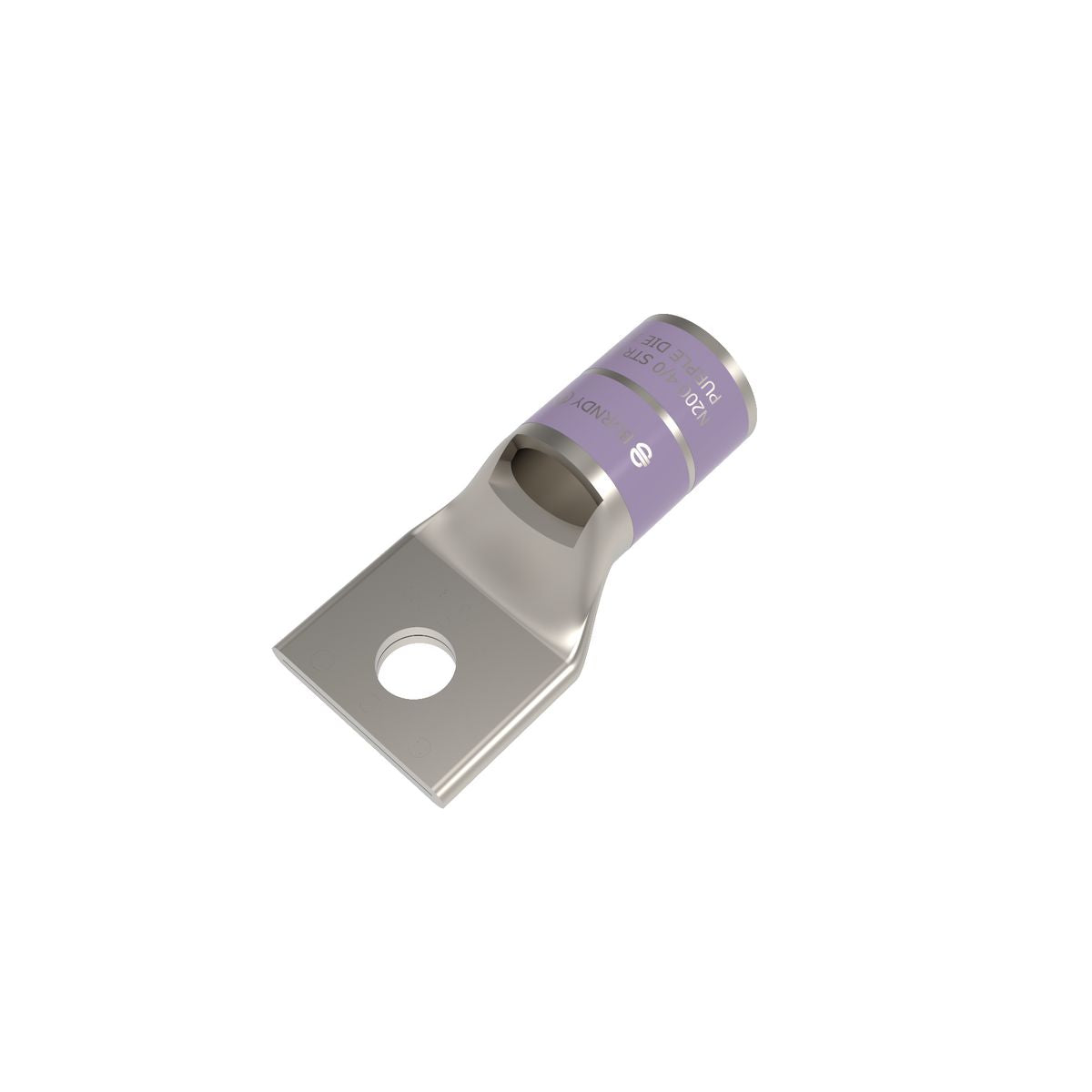

The BURNDY YA28-L2 is a compression cable lug designed for terminating 4/0 AWG stranded copper conductors. Constructed from electro-tin plated copper, it offers corrosion resistance and reliable electrical connections. This lug features a short, standard, skived, straight barrel with an inspection window for verifying full conductor insertion. It is suitable for use in applications ranging from 600V to 35kV.

• Accommodates 4/0 AWG stranded copper conductors
• Features a 1/4 inch stud size and one pad hole
• UL 467 and CSA approved, RoHS compliant

Product Highlights

This compression lug ensures secure wire termination with its durable construction and inspection window.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA28-L2
• Country of Origin: United States of America

Technical Specifications

• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 4/0 AWG
• Barrel Type: Short, Skived, Standard, Straight
• Barrel Length: 0.88 Inch
• Pad Size: 1.02 Inch W x 0.14 Inch Thk
• Number of Pad Holes: 1
• Stud Size: 1/4 Inch
• Die Index: 15
• Material: Electro-Tin Plated Copper
• Overall Length: 1.96 Inch
• Approval: UL 467, CSA
• RoHS Compatible: True
• Includes Inspection Window: True
• Temperature Rating: 90 Deg C
• Wire Strip Length: 1.125 Inch
• Cable Entry Type: Chamfered
• Sub Brand: HYLUG
• Tongue Type: Straight
• Type: Type YA-L, Uninsulated
• Standards: UL 467 Listed, CSA Certified, RoHS Compliant
• Mounting: 0.27 Inch Hole
• Barrel Diameter: 0.69 Inch OD
• Brand Name: Burndy
• Color Code: Purple
• Peep Hole: No
• Finish: Electro Tin Plated
• Item Name: Compression Lug
• Number of Holes: 1.0000
• Manufacturer Name: Burndy
• Manufacturer Part Number: YA28-L2
• Dimension - Bolt Hole Size inch: 0.27 in
• Dimension - Bolt Size inch: 0.25
• Dimension - D inch: 0.58 in
• Dimension - Hole Size inch: 0.27
• Dimension - N inch: 0.25 in
• Dimension - Outside Diameter inch: 0.69 in
• Dimension - Pad Width inch: 1.02 in
• Dimension - Z (inch): 0.33 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Conductor Type: CODE
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL467
• Plating Type: Tin - Electro Plated
• Length: 1.96 Inch
• Width: 1.02 in
• UL Listed: Yes
