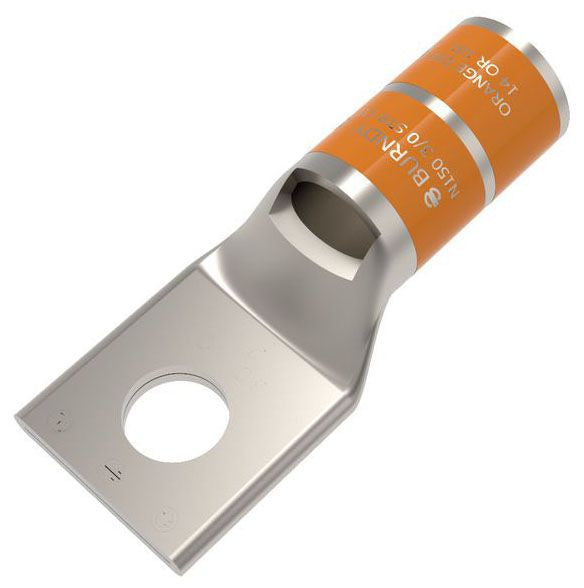

BURNDY YA27LBOX 3/0 AWG CU One Hole 1/2 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Product Description

The BURNDY YA27LBOX is a compression cable lug designed for use in wire termination applications. This product features a voltage rating of thirty-five kilovolts and is made from high-quality copper. The lug has a one-hole design with a stud size of one-half inch, compatible with wires sized three-aught AWG. The standard barrel has an inspection window and an internal chamfer for easier installation.

• UL and CSA approved for safety and reliability
• Electro-tin plated for corrosion resistance
• Temperature rating of ninety degrees Celsius

Product Highlights

This lug is suitable for commercial stranded copper conductors and can be used in various electrical applications. It meets strict industry standards and provides reliable connectivity in demanding environments.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA27LBOX
• Material: Copper
• Voltage Rating: 35 kV
• Wire Size: 3/0 AWG
• Stud Size: 1/2 inch
• Barrel Type: Standard, Non-Insulated
• Overall Length: 2.54 inches
• Wire Strip Length: 1-1/16 inches
• Die Index: 14
