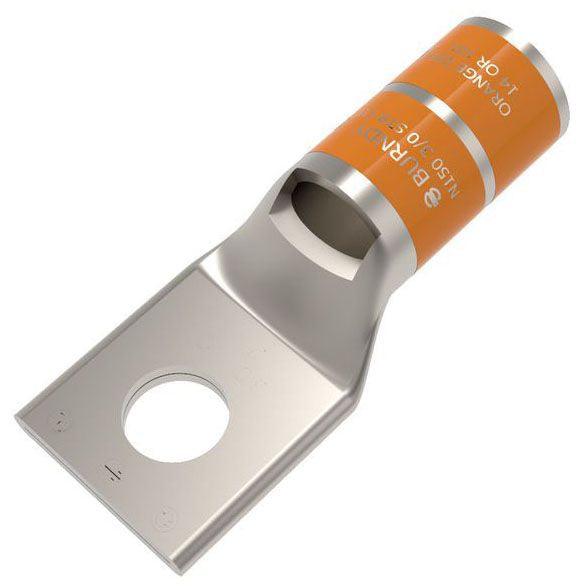

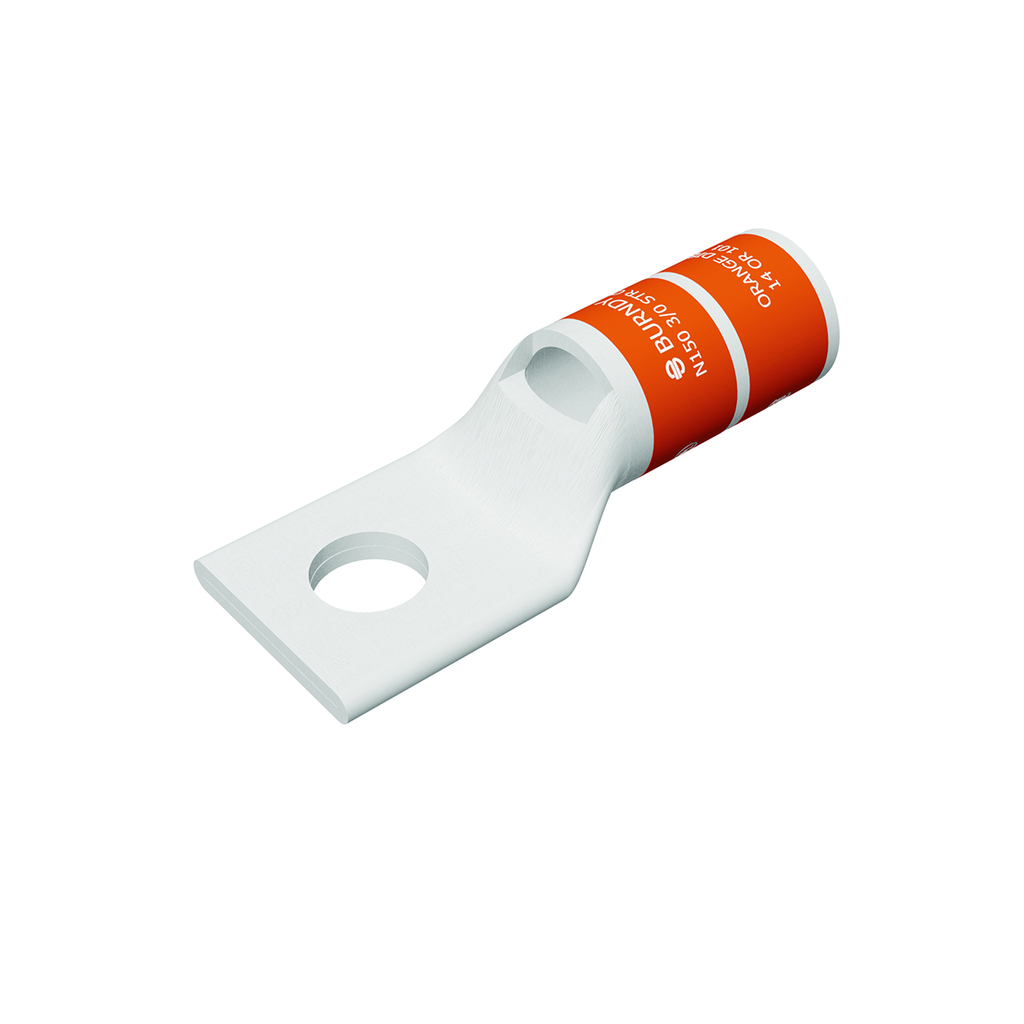

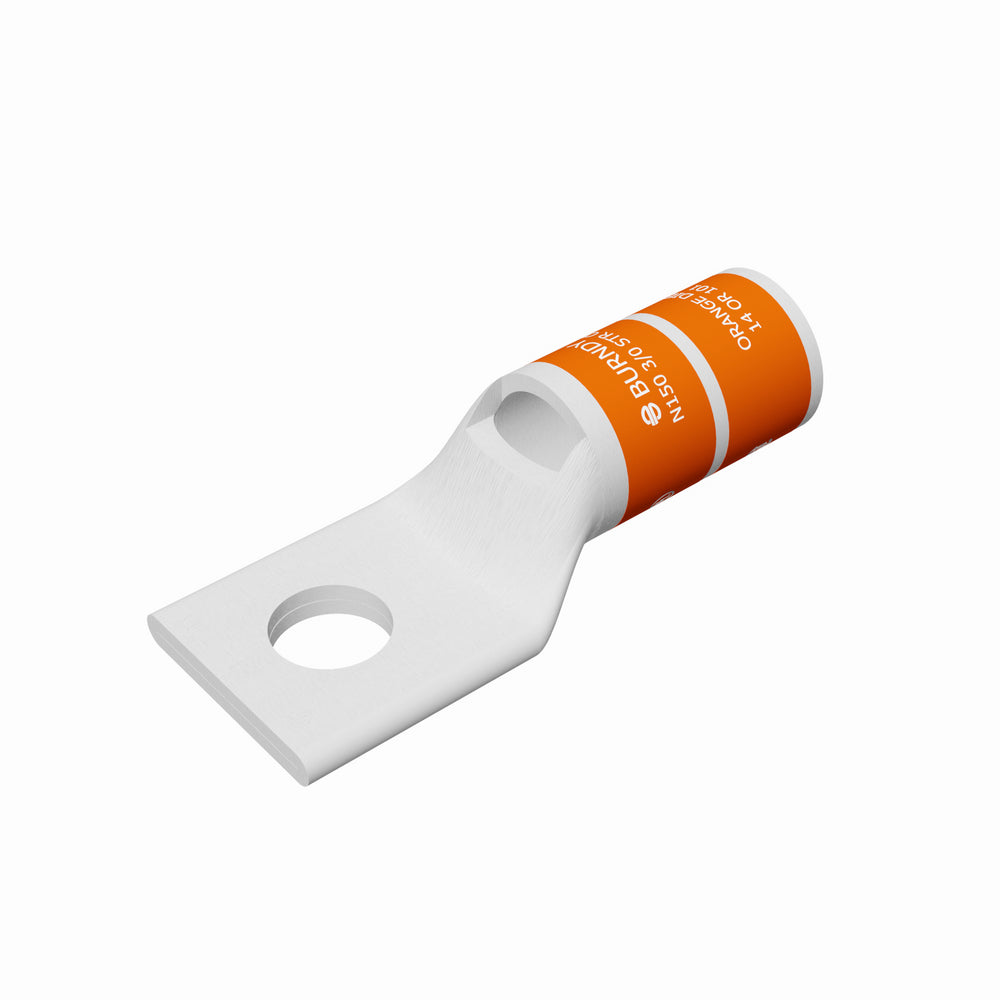

Burndy YA27L3 3/0 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated

Product Description

The Burndy YA27L3 is a copper compression lug designed for use with 3/0 AWG conductors. This lug features a one-hole design that accommodates a stud size of five-sixteenths inches. It has an inspection window for easy visual checks and meets UL and CSA standards for safety and performance.

• Copper construction with electro-tin plating for durability.
• Suitable for voltage ratings up to thirty-five thousand volts.
• Internal chamfer helps with easier installation and enhanced contact.

Product Highlights

The YA27L3 is ideal for wire termination in various electrical applications, ensuring a secure and reliable connection.

Product Information

Standard Information

• Brand: Burndy
• MPN: YA27L3

Technical Specifications

• Material: Copper
• Cable Size: 3/0 AWG
• Stud Size: 0.3125 inches
• Voltage Rating: 35,000 volts
• Overall Length: 2.16 inches
• Width: 0.91 inches
• Height: 0.62 inches
• Number of Holes: 1
• Color Coding: Orange
• Finish: Electro-Tin Plated
• Application: For Code Conductor
• Country of Origin: USA
