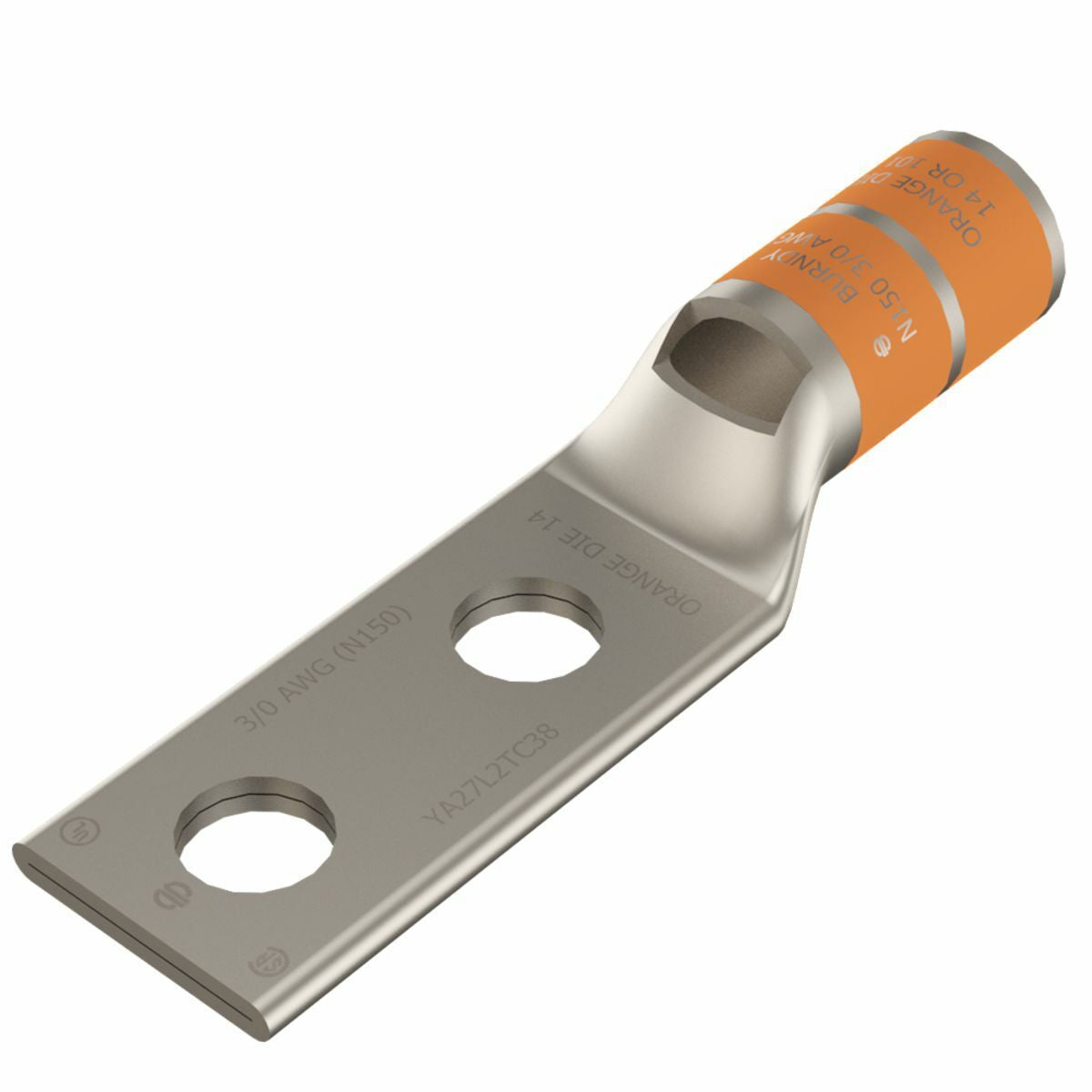

Burndy YA27L2TC38 3/0 AWG CU Two Hole 3/8 Stud Size

Product Description

The Burndy YA27L2TC38 is a two-hole cable lug designed for wire termination. It can handle voltages up to thirty-five thousand volts and is made from copper material. This product is UL listed and compliant with various standards, ensuring safety and reliability in electrical applications.

• Voltage Rating: Up to 35 kV
• Temperature Rating: Ninety degrees Celsius
• Wire Strip Length: One and one-sixteenth inches

Product Highlights

This cable lug features an inspection window for better supervision during installation. The product is electro-tin plated for enhanced conductivity and durability.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA27L2TC38
• Application: Wire Termination
• Material: Copper
• Stud Size: 3/8 inches
• Pad Size: 1 inch x 0.12 inches
• Number of Pad Holes: 2
• Die Index: 14
• Country of Origin: United States
• UPC: 781810521038
